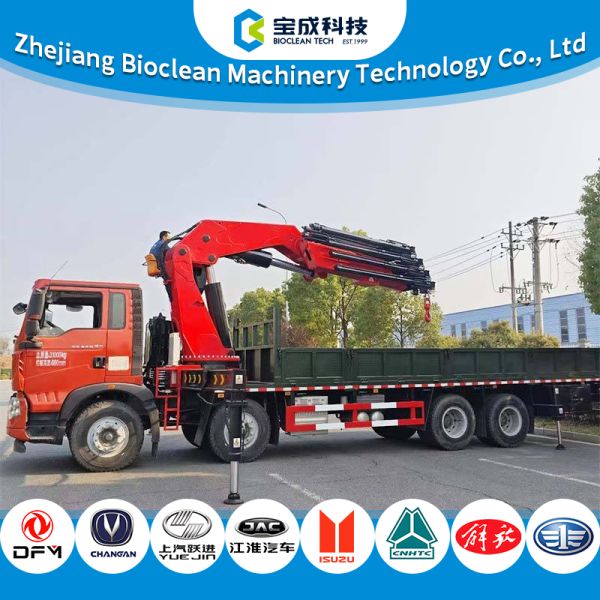

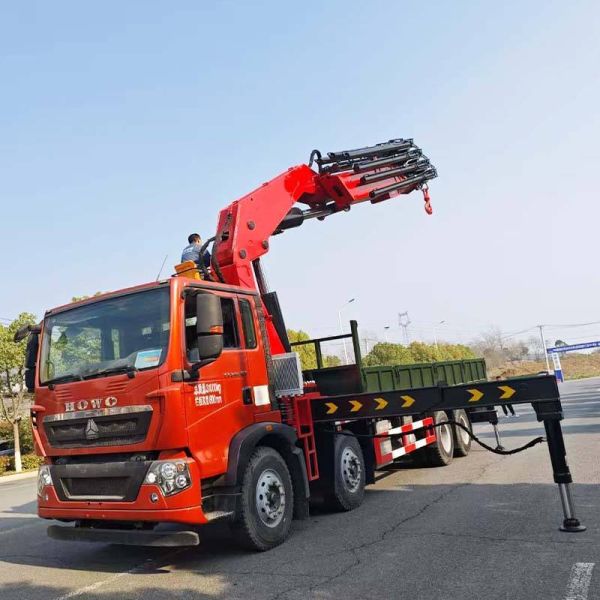

Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Hydraulic Manipulator Lifting Mobile Truck 38 Ton Folding Arm Mounted Crane Truck
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5181CBHD6
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Description

Key attributes


Technical Parameter
Chassis
Shaanqi Xander - Wing 6
Engine
Yuchai
Horsepower
240P
Length, width and height
7990*2500*2660mm
Crane weight
10000kg
Total mass
21000kg
Maximum lifting moment
760KN.m
Maximum lifting capacity
38000kg
Number of boom sections
8 sections
Maximum working range
17.5m
Maximum luffing angle
75°
Maximum lifting height
21m
Rated flow rate
80L/min
Rated working pressure
30MPa
Slewing angle
360
Slewing speed
1.2r/min
Outrigger transverse span
8000mm
Longitudinal span of outrigger
4056mm
Rear outrigger span
3120mm
Products Description
The truck-mounted crane with a folding arm offers high flexibility, compact design, and easy transportation. It can be quickly deployed, saving time and labor. The crane's ability to fold allows for better space utilization and easy maneuverability in tight spaces.
Product Paramenters

Details Images


Powerful power
Fully hydraulic power system, labor-saving, easy operation, telescopic boom 360° rotation, large slewing torque.
Folding boom
Foldable boom, compact size, saving installation space, scientific design, uniform force, wide range of uses, easy operation.
High work efficiency
The external folding arm can be tilted upward (negative elevation angle) to facilitate the boom to enter a lower working space.
