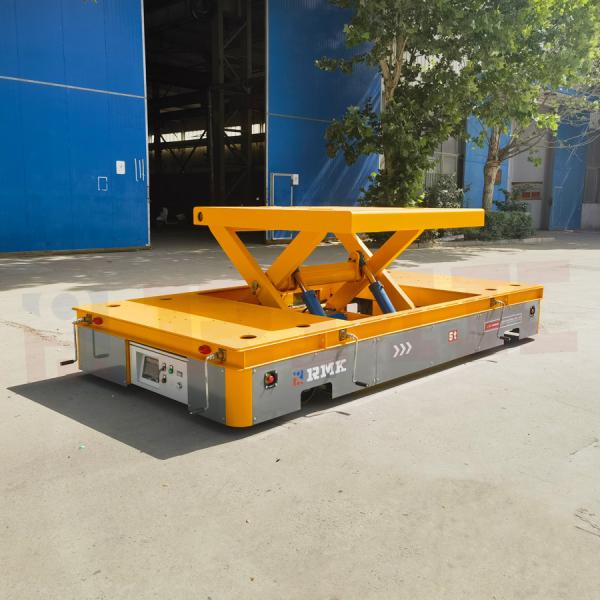

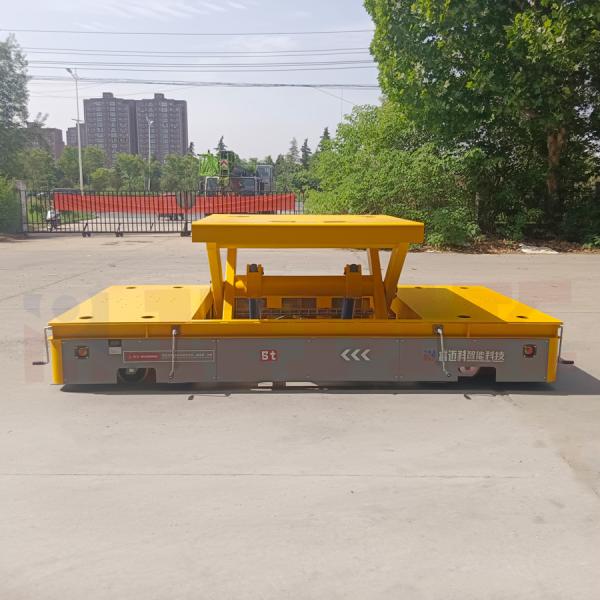

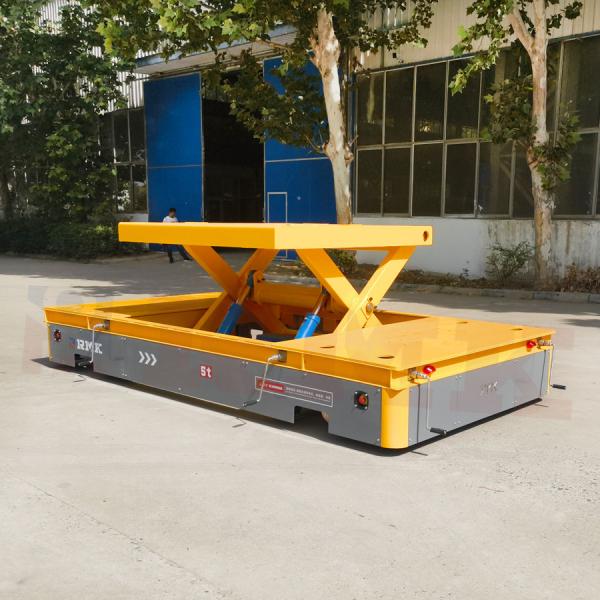

Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
Specifications
Brand Name :
Remarkable
Model Number :
RWP
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 sets per year
Delivery Time :
40 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Color :
Customized
Table Size :
Customized
Load Capacity :
1-300 tons
Operation Mode :
Remote Control/Handle remote control/PLC
Running Speed :
0-25m/min Stepless speed regulation/ Customized
Safety Device :
Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor
Wheel Material :
Press fit solid rubber wheels
Application :
Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc
Description

Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart



Heavy Duty Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart’s Application Range Includes: Mold Field, Automotive Field, Steel, Heavy Industry, Light Industry, Chemical Industry, Shipbuilding, Engineering, Aerospace, Coal, Nuclear Energy, Water Conservancy Engineering, Etc. In Order To Meet The Needs Of Industrial Transportation, We Have Designed A Variety Of Trackless Transfer Vehicles According To Customer Needs, Making Transportation More Convenient, Helping Customers Save Costs, Improve Efficiency, And Have Been Well Evaluated By Customers Around The World.

Main Parameters about battery powered transfer cart:
1.Load capacity:5T
2.Table size: 4000*2000*700mm
3.Power supply mode: Maintenance-free lead-acid batteries
4.Operate mode: remote control+hand pendant
5.Speed:0-25m/min
6.Hydraulic lifting height: 700mm

Trackless Transfer Car Usually Powered By Battery, Which Is An Environment-Friendly Product;
The Freedom Of The Route, The Unlimited Travel Distance, And The Saving Of Track Laying Costs;
Stable, Flexible, Efficient: Turn Left, Turn Right, And Rotate 360°In Place;
Safe And Convenient Operation Is Available, Wired Connection And Wireless Control, You Can Also Assemble A PLC System For Fully Automated Operation;
Intelligent Charging System One Charging For All Day Long;

Technical parameters for Battery powered electric transfer carts
Model RWP-2t RWP-5t RWP-10t RWP-20t RWP-25t RWP-30t RWP-40t RWP-50t RWP-150t
Rated Load(T) 2 5 10 20 25 30 40 50 150
Table Size(mm) Length 2000 3500 3600 4000 4500 4500 5000 5500 10000
Width 1500 2000 2000 2200 2200 2200 2500 2500 3000
Height 450 500 500 550 600 600 650 650 1200
Running Speed(m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-18
Battery Capacity (Ah) 180 180 180 180 250 250 300 330 600
Battery Voltage(V) 24 36 48 48 48 48 48 48 72
1.Load capacity, table size and rail gauge can be customized;
2.Options: Remote radio control (imported or made in china);
3.Automatic stop when detecting obstacle or person ,limit switches (to limit travel);
4.Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);


Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer CartHeavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer CartHeavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart

Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart

Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart


Heavy Load 5 Tons Hydraulic Lifting Omni-directional Mold Battery Transfer Cart
