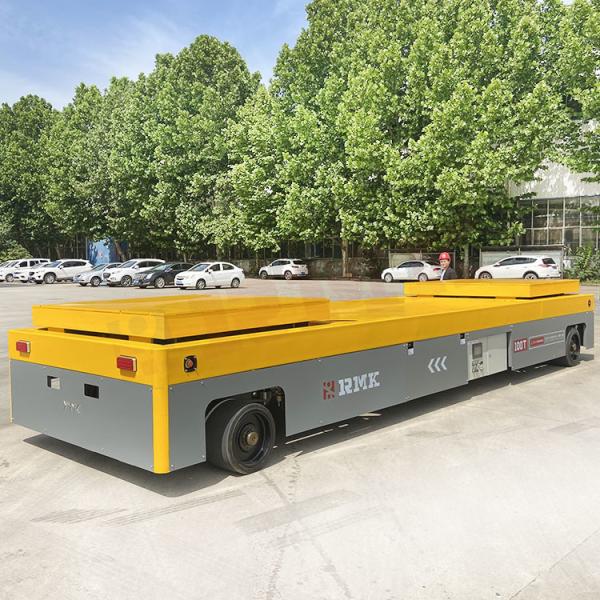

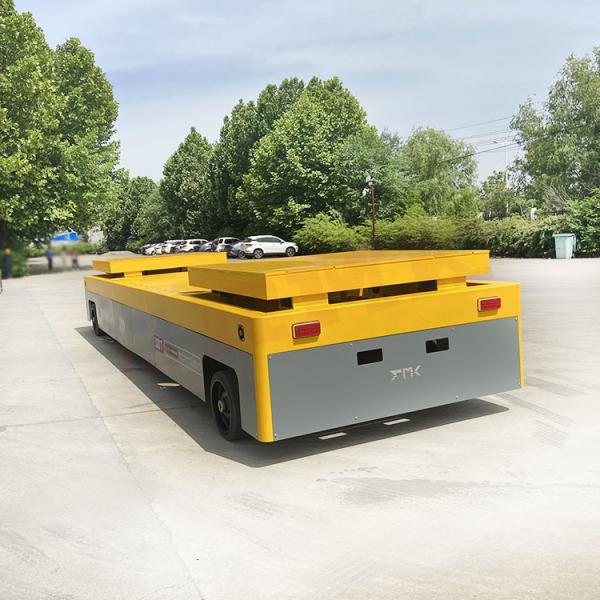

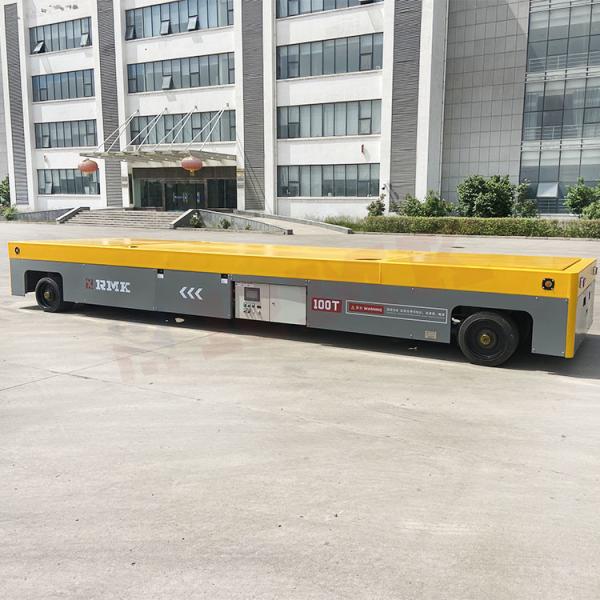

30Tons Industrial Steerable Battery Transfer Cart For Plant
30Tons Industrial Steerable Battery Transfer Cart For Plant
30Tons Industrial Steerable Battery Transfer Cart For Plant
30Tons Industrial Steerable Battery Transfer Cart For Plant
30Tons Industrial Steerable Battery Transfer Cart For Plant
30Tons Industrial Steerable Battery Transfer Cart For Plant
Specifications
Brand Name :
RMK
Model Number :
RWP
Certification :
CE.ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
customized
Payment Terms :
T/T
Supply Ability :
300 set per year
Delivery Time :
60 days
Packaging Details :
tarp
Name :
Transfer cart
load capacity :
30 T
Brake mode :
Electromagnetic brake
size :
customized
running speed :
0-20m/m
operating mode :
Wireless remote control & Hand operate pendant
Move Way :
movement in all directions
Description

30 tons Industrial steerable battery transfer cart for plant

The battery electric flat car generates power through battery power supply, which is installed inside the electric flat car. The battery provides power to the DC traction motor, and sends commands such as start, stop, forward, backward, and speed regulation through the remote control. The electrical control system issues commands to the DC motor to drive the electric flat car for operation.

RWP Technical parameters for electric transfer carts
1 rated load(t) 5 10 15 20 30 40 50 150
2 impacted rated load(t) 7.5 15 22.5 30 45 60 75 225
3 structure of frame steel plates welded, beam structure
5 ground requirement cement floor steel plate ground
6 table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300 10000×3000
8 ground clearance(mm) 0-100 75
10 axles distance(mm) 2500 3100 3400 3900 4300 4800 5200 10000
11 turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
12 turning type turning while driving with no stop
13 control method for turning control button
14 turning structure mechanical
16 wheel diameter(mm) Ф300 x 4 Ф350 x 4 Ф400 x 4 Ф400 x 6 Ф500 x 6 Ф600 x 8
22 battery maintenance free of maintenance
23 charger's installation installed on cart split-type
24 charger function automatic charging
26 warning equipment sound and light
27 other functions power display

This series of electric flat cars has no limit on running distance and is suitable for occasions with low working intensity, low track requirements, and low frequency of use. It can operate over long distances without affecting the operation of ground equipment.

Our company's electric flat cars develop welding sequences and overall polishing correction processes based on their structural characteristics. The welding process is fixed and welded under the platform and welding fixture, with no deviation in shape and sufficient load-bearing capacity and deformation resistance. The flat car adopts a beam structure with a flat surface, and a V-shaped frame can also be added according to customer needs. The V-shaped frame can be flexibly disassembled to meet the multi-purpose function of a car, thus achieving diversified use.

30Tons Industrial Steerable Battery Transfer Cart For Plant30Tons Industrial Steerable Battery Transfer Cart For Plant30Tons Industrial Steerable Battery Transfer Cart For Plant
