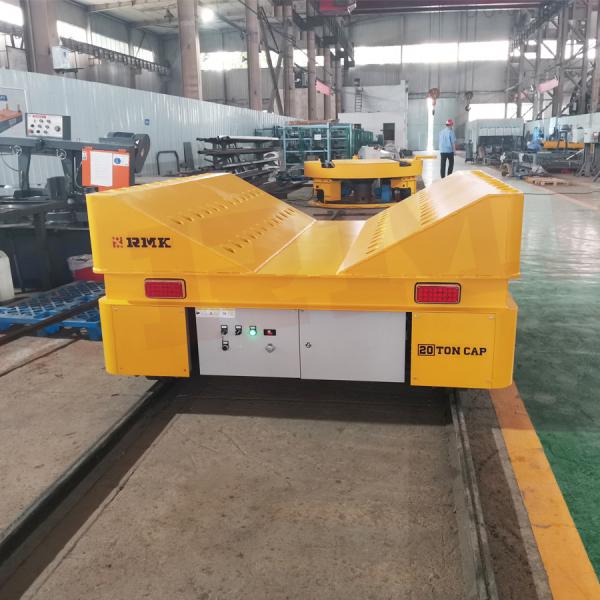

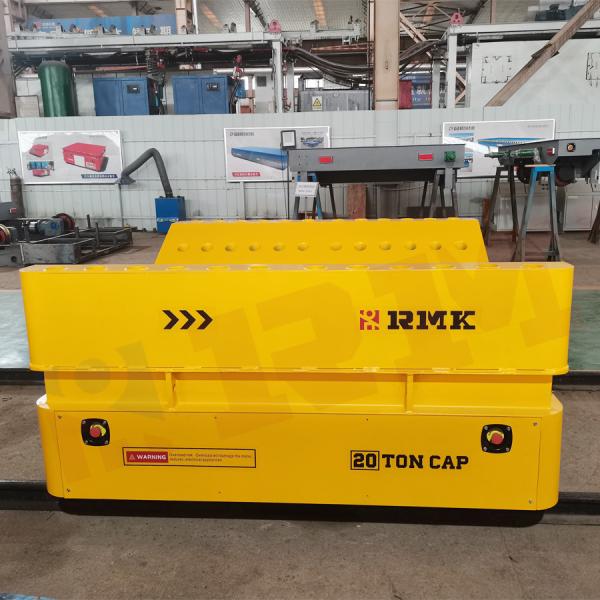

Industrial Heavy Duty 20 Tons Steel Coil Battery Rail Transfer Trolley
Industrial Heavy Duty 20 Tons Steel Coil Battery Rail Transfer Trolley Is More Accommodating For Moving Long Loads Through Restrictive Passage Ways Or Doorways. For Heavier Loads Transfer Carts Are An Excellent Affordable Choice For Their Ability To Handle Heavy Loads. Transfer Carts Are Compact In Design And Work Well In Areas With Limited Floor Area. Another Advantage Over Lift Trucks Is How The Cart Deck Can Be Customized To Suit Specific Loads.
For Smaller Loads, Manual Carts Can Be Dedicated To Specific Work Place Activities Such As Shuttling Materials. This Often Makes The Carts More Available For Use. Transfer Carts Are More Accommodating For Moving Long Loads Through Restrictive Passage Ways Or Doorways. For Heavier Loads Transfer Carts Are An Excellent Affordable Choice For Their Ability To Handle Heavy Loads. Transfer Carts Are Compact In Design And Work Well In Areas With Limited Floor Area. Another Advantage Over Lift Trucks Is How The Cart Deck Can Be Customized To Suit Specific Loads.
Advantages:
---- Low Noise It Causes Low Noise Level.
---- Maximum Safety Offers Guarantee Of Maximum Safety For Operators And For The Material Handled. We Really Care About The Safety Of Everyone Involved In The Job.
---- Easy For Operation These Vehicles Are Easy To Drive, So As Soon As You Get It You Will Be Able To Use It To Transport Your Loads. We Will Support You To Make The Best Out Of Your Heavy Load Transporter.
---- Easy To Implement Into Manufacturing Process Operates On Standard Floors; Do Not Require Complex Or Permanent Installation
---- Suitable For All Kinds Of Weight The Steering Battery Powered Trolley Is Superb For Handling Both Small And Extremely Huge Loads For Its Modular Fabrication And Its High Payloads: Up To 300 Ton For Each Trolley.
Technical parameters for Battery powered electric transfer carts | ||||||||||
Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
Rated Load(T) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
Table Size(mm) | L | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
W | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
H | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
1.Load capacity, table size and rail gauge can be customized; 2.Options: Remote radio control (imported or made in china); 3.Automatic stop when detecting obstacle or person ,limit switches (to limit travel); 4.Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery); |
