RGV 50 Tons Automated Traction Transfer Cart
RGV 50 Tons Automated Traction Transfer Cart
RGV 50 Tons Automated Traction Transfer Cart
RGV 50 Tons Automated Traction Transfer Cart
RGV 50 Tons Automated Traction Transfer Cart
RGV 50 Tons Automated Traction Transfer Cart
RGV 50 Tons Automated Traction Transfer Cart
RGV 50 Tons Automated Traction Transfer Cart
Specifications
Brand Name :
Remarkabl
Model Number :
KPX/RGV
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500 sets/year
Delivery Time :
40 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
name :
Transfer Cart
key word :
rail transfer cart,Transfer Cart,Transfer Trailerst,die transfer cart,transfer trolley, industrial rail transfer cart, electric flatcar motorized equipment, battery powered material handling rail electric coil transfer cart
Color :
Customized
Flat Size :
U/V/roller/lifting/Customized
Load Capacity :
1-1000 tons
Material :
Welded construction of structural steel，Box girder structure
Model :
Automation Rail transfer trolley
Operation Mode :
Remote Control/Handle remote control/PLC
Running Speed :
0-25m/min Stepless speed regulation/ Customized
Safety Device :
Limit switch，RFID,Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor
Warranty :
1 year
Wheel Material :
steel wheel
Application :
Industrial Filed, Automobile industry，military industry，hydropower industry，Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc
Description

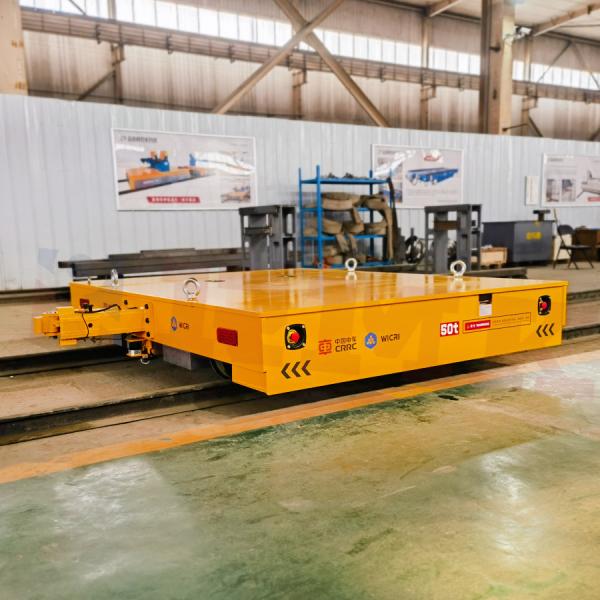

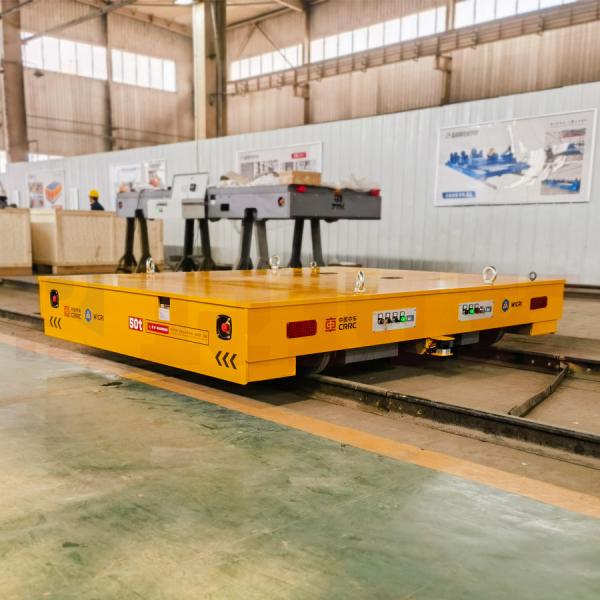

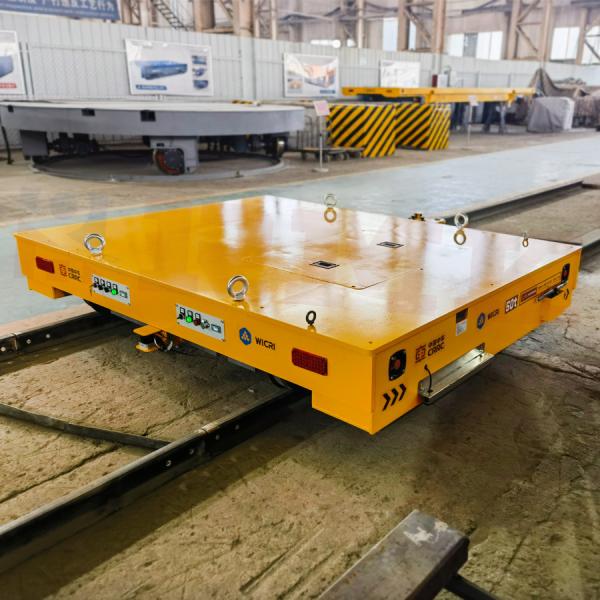

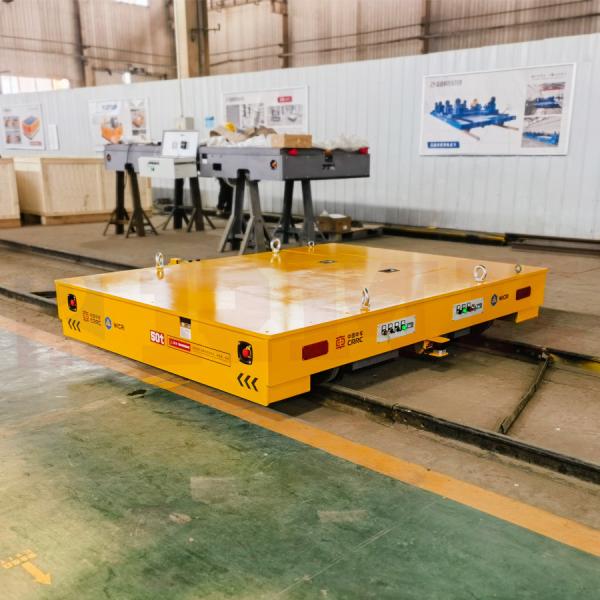

50 tons automated RGV traction transfer cart

Automatic track transfer cart, also known as track guided cart (RGVs), track collection cart, or track automated transport cart, are transportation cart that can move back and forth along the track. Mainly used for material transportation, workshop assembly, etc., widely used in industries such as automotive assembly lines, warehousing and logistics. It has the characteristics of fast speed, high reliability, and low cost. According to the movement mode, it can be divided into circular guide rail type and linear reciprocating type, suitable for handling large workpieces.

RGV 50 Tons Automated Traction Transfer CartRGV 50 Tons Automated Traction Transfer Cart

RGV cars can be used in warehouses with various high-density storage methods. The car passage can be designed to be of any length, which can increase the storage capacity of the entire warehouse. During operation, there is no need for forklifts to enter the passage, making it safer. Widely used in operations such as shipping companies, loaders, concrete manufacturers, foundries, steel mills, etc.RGV 50 Tons Automated Traction Transfer Cart

The 50 ton RGV automatic hook tractor is applied to university campuses, with a load capacity of 50 tons. It can move forward, backward, turn, stop at designated points, customize the tooling frame, and also has an automatic hook device that can automatically connect with the tractor. RGV usually transports quickly and saves time. At the same time, it is equipped with an automatic hook device, which can be automatically connected to the rear cart for traction work. RGV 50 Tons Automated Traction Transfer Cart

Technical parameters for Battery powered electric transfer carts KPX series
Model KPX-2t KPX-5t KPX-10t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-150t
Rated Load(t) 2 5 10 20 25 30 40 50 150
Table Size(mm) Length 2000 3500 3600 4000 4500 4500 5000 5500 10000
Width 1500 2000 2000 2200 2200 2200 2500 2500 3000
Height 450 500 500 550 600 600 650 650 1200
Wheel Base(mm) 1200 2500 2600 2800 3200 3200 3800 4200 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) 270 300 300 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 75
Running Speed(m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.2 1.6 2.2 3 3.5 4 5 15
Battery Capacity (Ah) 180 180 180 180 250 250 300 330 600
Battery Voltage(V) 24 36 48 48 48 48 48 48 72
Running Time When Full Load 4.32 5.4 4.8 4 4 3.5 3.6 3.3 2.9
Running Distance for One Charge (Km) 6.5 8.1 7.2 4.8 4.8 4.2 4.3 4 3.2
Max Wheel Load (KN) 14.4 25.8 42.6 77.7 94.5 110.4 142.8 174 266
Reference Weight(t) 2.8 3.6 4.2 5.9 6.5 6.8 7.6 8 27
Recommended Rail Model P15 P18 P18 P24 P38 P38 P43 P43 QU100
1,Load capacity, table size and rail gauge can be customized;
2,Options: Remote radio control (imported or made in china);
3,Automatic stop when detecting obstacle or person ,limit switches (to limit travel);
4,Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);
5,Motor (DC motor with brush and DC motor brushless);
6,Electrical parts (imported or made in China).
