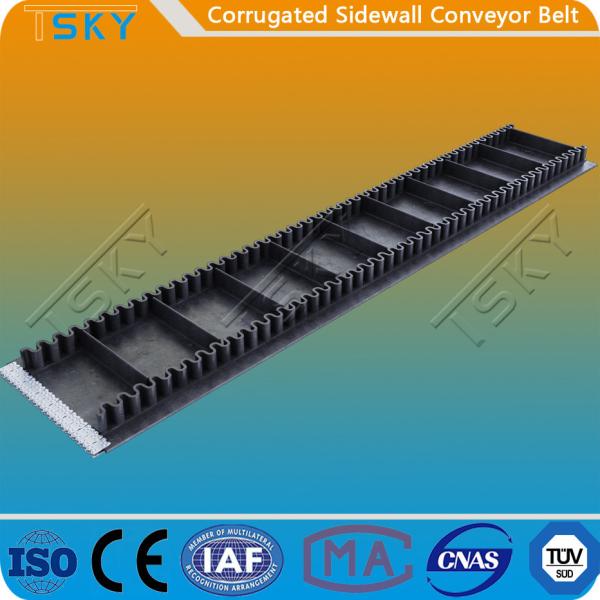

Corrugated Sidewall B1200 1200mm Conveyor Rubber Belt
Corrugated Sidewall B1200 1200mm Conveyor Rubber Belt
Specifications
Brand Name :
TSKY
Model Number :
B1200
Certification :
SGS, ISO, BV, CE
Place of Origin :
Qingdao, China
MOQ :
100m
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000m per day
Delivery Time :
7-15 working days after confirmed order
Packaging Details :
Export standard container: 20GP or 40GP, 40HC
Name :
B1200 Corrugated Sidewall Rubber Conveyor Belt
Belt Width :
1200mm
Height of Sidewall :
160mm/200mm/240mm/300mm
Width of Sidewall :
75mm/75mm/75mm/100mm
Belt Conveying Capacity :
57m³/h-800m³/h
Max. Material Size :
80mm/100mm/140mm/180mm
Min. Pulley Diameter :
400mm/500mm/610mm/915mm
Angle of Inclination :
0°-90°
Warranty :
12 Months
Description

B1200 Corrugated Sidewall Rubber Conveyor Belt

Features of B1200 Corrugated Sidewall Rubber Conveyor Belt

The B1200 corrugated sidewall conveyor belt is composed of a base belt, a sidewall and a cleat. The bas belt can use cotton, nylon and polyester fabric reinforced for different belt's tension, application, flexibility longitudinally and rigidity transversely.

The edge guard sidewall of the B1200 corrugated sidewall conveyor belt is corrugated to facilitate the winding around the drum, prevents the material from slipping of. The cleat ( T-type, TS-Type, C-Type, TC-Type and TCS-Type ) is used to support the material, in order to achieve large angle of transport.

The sidewall and the cleat on the B1200 corrugated sidewall conveyor belt are connected to the base belt by means of hot vulcanization process and have a high degree of pre-linking.

The B1200 corrugated sidewall conveyor belt has advantages of large conveying inclination angle ( 0°-90°), wide application range, small occupied area, no transfer point, less investment in civil construction, low maintenance cost, large conveying capacity, etc.

The B1200 corrugated sidewall conveyor belt is widely used for convoying materials in shapes of lump, particles and powders in port, metallurgy, ore mining, power plant, coal mining, foundry, construction, chemical industry, etc.

Technical Parameter List of B1200 Corrugated Sidewall Conveyor Belt

Belt Width (mm) Height of Sidewall (mm) Width of Sidewall (mm) Pitch (mm) Sidewall Covered Factor (m²/m) Cleat Height (mm) Cleat Covered Factor (m²/m) Cleat Width (mm) Belt Conveying Capacity (m³/h) Max. Material Size (mm) Min. Pulley Diameter (mm)
500 80 50 40/50 0.82 C 75 1.29 500-2R 11-84 50 200
100 50 40/50 1.42 C/TC 90 1.56/1.34 55 280
120 50 50 1.69 C/T/TC110 1.87/1.78/1.76 60 350
650 100 50 40/50 1.42 C/TC 90 1.56/1.34 650-2R 23-180 55 280
120 50 50 1.69 C/T/TC110 1.87/1.78/1.76 60 350
160 75 60 2.68 T/TC/TCS 145 2.32/2.36/4.58 80 400
800 120 50 50 1.69 C/T/TC110 1.87/1.78/1.76 800-2R 36-280 60 350
160 75 60 2.68 T/TC/TCS 145 2.32/2.36/4.58 80 400
200 75 60 3.53 TC/TCS 180 3.13/5.35 100 500
1000 160 75 60 2.68 T/TC/TCS 145 2.32/2.36/4.58 1000-2R 45-500 80 400
200 75 60 3.53 TC/TCS 180 3.13/5.35 100 500
240 75 60 5.15 TCS 220 6.28 140 610
1200 160 75 60 2.68 T/TC/TCS 145 2.32/2.36/4.58 1200-2R 57-800 80 400
200 75 60 3.53 TC/TCS 180 3.13/5.35 100 500
240 75 60 5.15 TCS 220 6.28 140 610
300 100 85 7.52 TCS 280 9.27 180 915
1400 200 75 60 3.53 TC/TCS 180 3.13/5.35 1400-2R 73-1000 100 500
240 75 60 5.15 TCS 220 6.28 140 610
300 100 85 7.52 TCS 280 9.27 180 915
400 100 85 10.67 TCS 360 14.45 250 915
Angle of Inclination: 0°-90°
