GX Series GX3500 Steel Cord Conveyor Belt
GX Series GX3500 Steel Cord Conveyor Belt
Specifications
Brand Name :
TSKY
Model Number :
GX3500
Certification :
SGS, ISO, BV, CE
Place of Origin :
Qingdao, China
MOQ :
100m
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per day
Delivery Time :
7-15 working days after confirmed order
Packaging Details :
Export standard container: 20GP or 40GP, 40HC
Name :
GX Series GX3500 Steel Cord Conveyor Belt
Longitudinal Tensile Strength :
3500N/mm
Thickness :
28mm
Max. Diameter of Wire Rope :
8.7mm
Wire Rope Spacing :
18mm
Reference Mass :
43.6kg/m²
Minimum Pulley Diameter :
1600mm
Belt Width :
1000mm-2200mm
No. of Wire Ropes :
53-118
Warranty :
12 Months
Description

GX Series GX3500 Steel Cord Conveyor Belt

Features of GX Series GX3500​ Steel Cord Conveyor Belt

The GX Series GX3500 steel cord conveyor belt is widely used in coal, mine, port, metallurgy, power supply, chemical engineering and other fields for conveying materials.

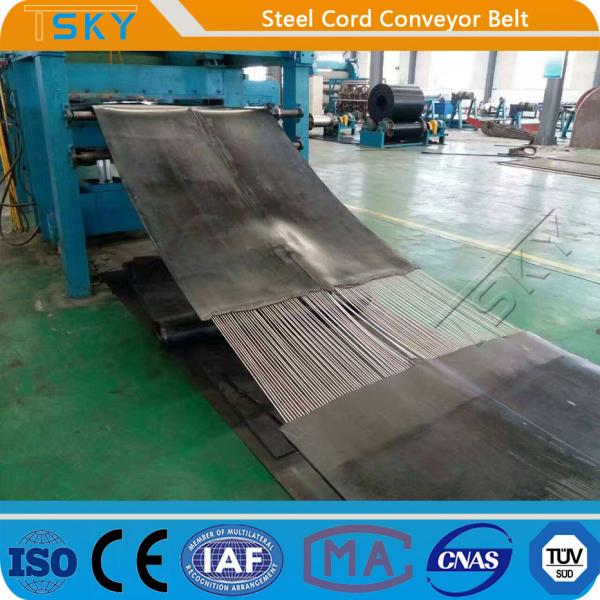

The GX Series GX3500 steel cord conveyor belt core is comprised of longitudinally and evenly arranged non-spinning galvanized steel cord and high adhesive core rubber, covered with the top rubber and bottom cover.

The GX Series GX3500 steel cord conveyor belt has these advantages: high tensile strength, long service life, short elongation under service, good groove formation property and good anti-flexure property, which make it suitable for conveying materials across long distance with large capacity and high speed.

The GX Series GX3500 steel cord conveyor belt has three different types: standard structure type, new structure type and horizontally strengthened type.

The new structure type has these features:

The rubber core has enough penetration capacity to penetrate the spaces between the steel strands. Its high adhesive strength between the rubber and steel and goo anti-corrosive property can effectively alleviate the shear force and strand twisting. Its superior dynamic fatigue durability imparts the product longer service life.

The horizontally strengthened type has these features:

The strengthening layers such as steel cords, steel ropes, fiber rope and fabrics are transversally laid on one side or two sides of the wire ropes. It has good impact strength and high tearing strength.

Technical Parameter of ST Series Steel Cord Conveyor Belt

Model ST500 ST630 ST800 ST1000 ST1250 ST1400 ST1600 ST1800 ST2000 ST2250 ST2500 ST2800 ST3150 ST3500 ST4000 ST4500 ST5000 ST5400 ST6300 ST7000 ST7500

Min. Tensile Strength (N/mm)

 500 630 800 1000 1250 1400 1600 1800 2000 2250 2500 2800 3150 3500 4000 4500 5000 5400 6300 7000 7500
Max. Diameter of Wire Rope (mm) 3.0 3.0 3.5 4.0 4.5 5.0 5.0 5.6 6.0 6.6 7.2 7.2 8.1 8.6 8.9 9.7 10.9 11.3 12.8 13.5 15.0
Wire Rope Spacing (mm) 14.0 10.0 10.0 12.0 12.0 14.0 12.0 13.5 12.0 11.0 15.0 13.5 15.0 15.0 15.0 16.0 17.0 17.0 19.5 19.5 21.0
Minimum Thickness of Rubber Cover 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0
Belt Width Limit Deviation No. of Wire Ropes
500 ±10/-5 33 45 45 39 39 34 39 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
650 ±10/-7 44 60 60 51 51 45 51 46 52 56 41 46 41 41 41 39 36 N/A N/A N/A N/A
800 ±10/-8 54 75 75 63 63 55 63 57 63 69 50 57 50 50 51 48 45 45 N/A N/A N/A
1000 ±10 68 95 95 79 79 68 79 71 79 86 64 71 64 64 64 59 55 55 N/A N/A N/A
1200 ±10 83 113 113 94 94 82 94 85 94 104 76 85 76 77 77 71 66 66 58 59 54
1400 ±12 96 133 133 111 111 97 111 100 111 122 89 99 89 90 90 84 78 78 68 69 64
1600 ±12 111 151 151 126 126 111 126 114 126 140 101 114 101 104 104 96 90 90 78 80 73
1800 ±14 125 171 171 143 143 125 143 129 143 159 114 128 114 117 117 109 102 102 89 90 83
2000 ±14 139 191 191 159 159 139 159 144 159 177 128 143 128 130 130 121 113 113 99 100 92
2200 ±15 153 211 211 176 176 154 176 159 176 195 141 158 141 144 144 134 125 125 109 110 102
2400 ±15 167 231 231 193 193 168 193 174 193 213 155 173 155 157 157 146 137 137 119 119 110
2600 ±15 181 251 251 209 209 182 209 189 209 231 168 188 168 170 170 159 149 149 129 129 120
2800 ±15 196 271 271 226 226 197 226
