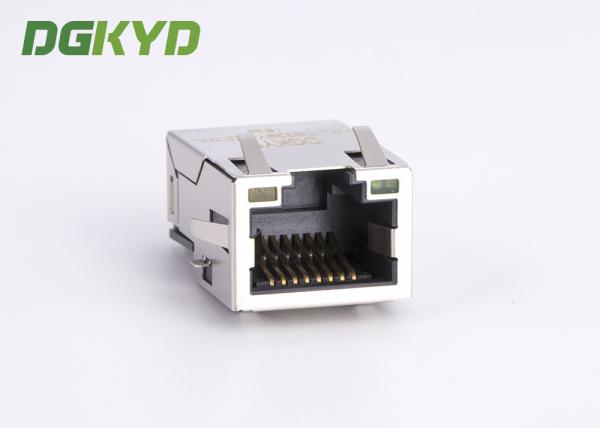

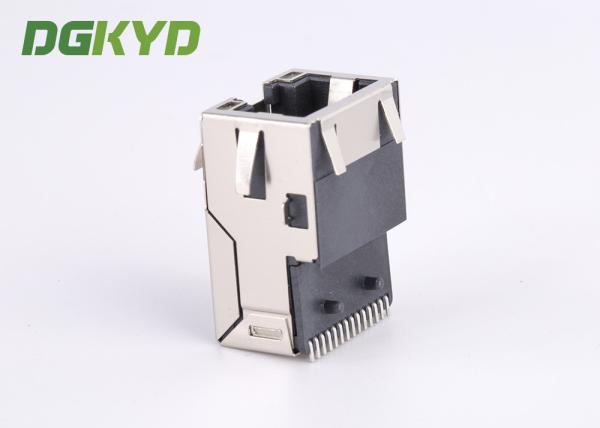

SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
SMD Sinking Below PCB 1000BASE Integrated Magnetics Rj45 Network Jack For Gigabit Ethernet KRJ-CB329YGZE3NL
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-CB329YGZE3NL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Application: :
Ethernet
Performance Speed: :
0/100/1000BASE-T
PCB Mount: :
Right Angle SMD
Standard: :
IEEE802.3ab
Description

SMT Sinking below PCB 1000BASE Integrated Magnetics rj45 network jack for gigabit ethernet

Product Specification Document

KRJ-CB329YGZE3NL.pdf

Packaging Type Tray
Panel Mount Spring
Plating min - Mating 0.051µm (Au), 1.016µm (PdNi)
Ports 1
Positions / Loaded Contacts 10/8
Surface Mount Compatible (SMC) No
Temperature Range - Operating -40°C to +85°C
Termination Interface: Style SMD

Specifications

  • Meets TIA-568 CAT5E requirement
  • Conforms to FCC rules and regulations part 68
  • High temperature thermoplastic housing
  • Voltage rating: 150V AC
  • Current rating: 1.5A
  • One tri-color LED/ port
  • 750 cycles durability
  • Press fit footprint

Applications

  • Wireless base stations
  • Switches, hubs and routers
  • Networking devices
  • Industrial controls
  • Other general 1 Gbps Ethernet data applications
