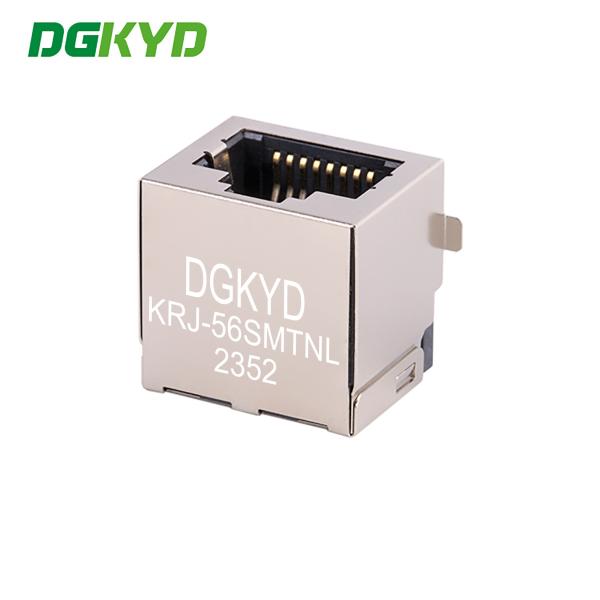

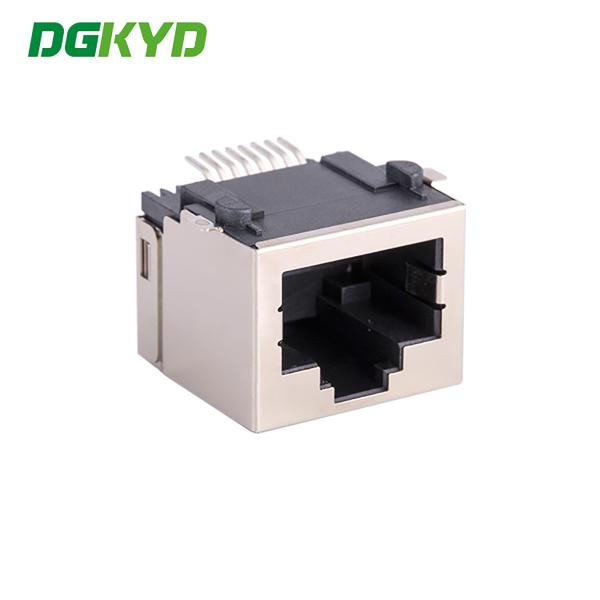

KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-56SMTNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Speed :
Cat 5
Mount Style :
SMT/SMD
Feature :
Low profile
Latch :
Tab up
Contact Mating Area Plating :
GOLD 6u'' / 15u"/ 30u"/ 50u" for optional
LED Option :
N/A
Housing Material :
LCP Black
Gender :
Female
Description

KRJ-56SMTNL Single Port RJ45 Network Socket Without Filter Network Interface SMD

Product Specification Document

KRJ-56SMTNL.pdf

Parameters

Part Number KRJ-56SMTNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter Without Filter LED Option Without LED
LED Color No Panel Stops Without Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 1u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0
  • 10/100/1000 Base-Tx RJ45 without LED
  • Single port Tab-UP RJ45 modular jack
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer, telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
