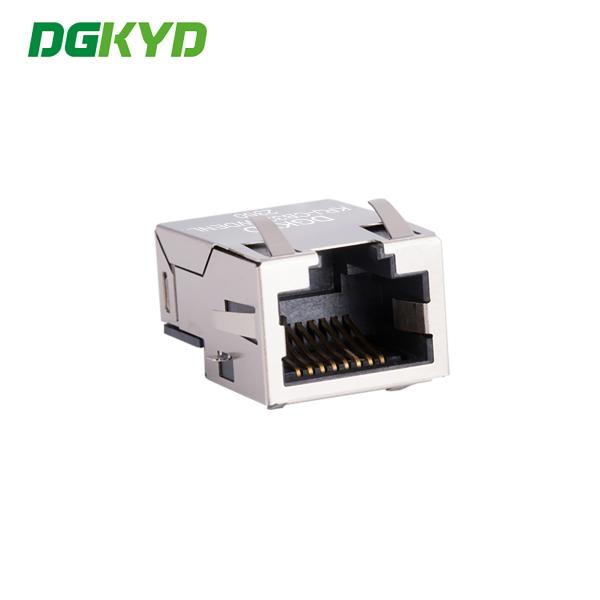

KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-CB329WDENL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Rroduct Height :
11.35mm
Product Name :
Extra Low Profile RJ45 connector
Application :
PCB
Gender :
Female
LED Color :
N/A
Contact Plating :
Glod plating 6u/15u/30u/50u
Housing Material :
LCP Black
Filter :
With Filter
Latch :
TAB-UP
Shield :
Metal Shield
Pin :
10pin
Description

KRJ-CB329WDENL Sink Plate RJ45 Connector Gigabit Integrated Ethernet Filter SMD

Product Specification Document

KRJ-CB329WDENL.pdf

Parameters

Part Number KRJ-CB329WDENL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option Without LED
LED Color No Panel Stops Without Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions  10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Descriptions:

  • 1port RJ45 SMD without LED with side entry
  • Single port 1X1 Tab-down heavy plate RJ45 connector with internal Magnetics
  • LCP black RJ45 connector board of high is 8.85mm
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating Temperature range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:14
  • Number of contacts loaded:8
  • ROHS compliant
  • Dimention:21.5mm*15.5mm*11.35mm
  • LEDS:NO
  • Usage:KRJ-CB329WDENL

Quick detail:

1X1 Heavy plate rj45 Tab-down

Rj45 with transformer and contact area with”6U”Gold

SMD RJ45 without led and connector board of high is 8.85mm

Length: 21.5mm

90degree
