RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD611U2Q008DF5WD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Product Name :
RJ45 with Transformer
Type :
RJ45 USB Combo
Housing :
Phenolic, PBT Black (UL94V-0)
No.Port :
RJ45 single port
PCB Mount Angle :
SIDE ENTRY
Mount Stlye :
Though Hole
Jack Type :
RJ45 + USB2.0
Gold plating on contact pins :
6U
Storage temperature :
-40°C~+85°C
Operating temperature :
-40°C~+85°C
Description
RJ45+USB2.0 Network Connector with LED and Shielding Interface
Part Number: DGKYD611U2Q008DF5WD
Product Overview
This RJ45+USB2.0 network connector features integrated LED indicators and shielding interface socket. Designed for 10/100/1000BASE-T Ethernet applications with built-in magnetics for optimal performance.

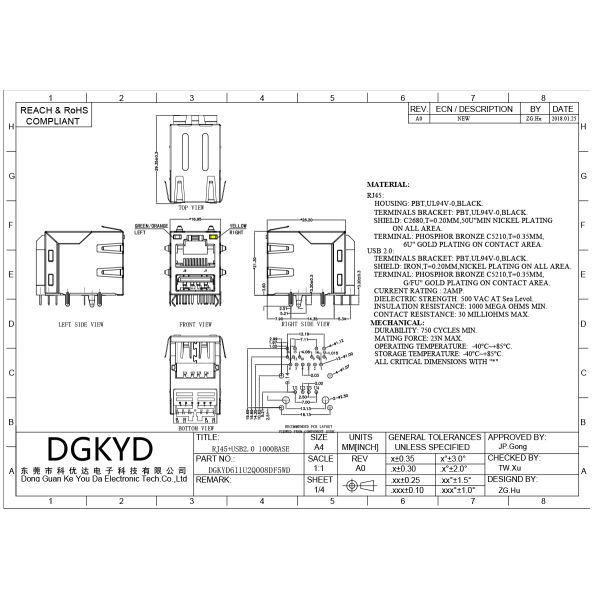

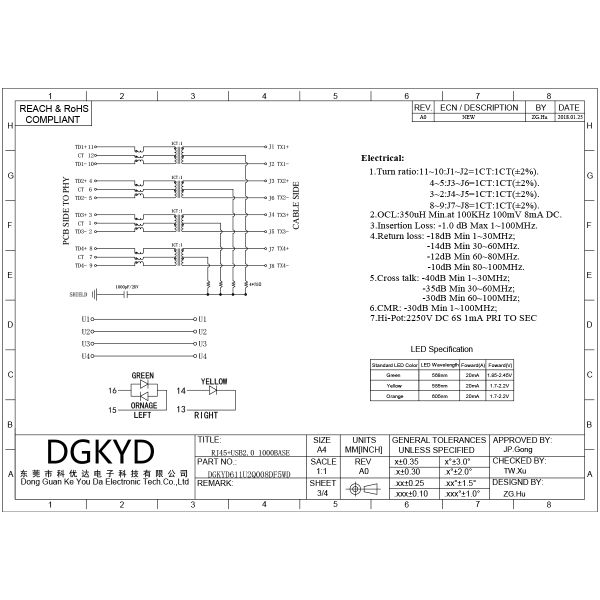

Technical Documentation
Download Technical Specifications (PDF)
Technical Specifications
Part NumberDGKYD611U2Q008DF5WD
BrandDGKYD/OEM/ODM
Product TypeConnector-Modular
Connector StyleJack
Jack TypeRJ45
Latch StyleStandard TAB-UP
FilterWith Filter
LED OptionWith LED (Green/Orange-Yellow)
Panel StopsWith Panel Stops
ShieldedWith metal shield
PCB MountingSide Entry (Right Angle)
Contact PlatingGold 6μ
Housing MaterialPBT Polyester (Black)
UL RatingUL 94V-0
Positions12
Port ConfigurationSingle Ports
Product Images
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD
Manufacturer Information
Product Features
  • Interface type: RJ45 connector for 10/100/1000BASE-T Ethernet applications
  • Built-in magnetics for filtering and anti-interference
  • Operating temperature: -40°C to 85°C
  • Storage temperature: -40°C to 85°C
  • Lead-free soldering compatible up to 265°C
  • Customizable LED indicator options (green, yellow, red, orange, blue, bi-color)
  • EMI shielding fingers optional
  • Multiple magnetic core coil ratios available
  • Various contact gold plating thicknesses (3μ, 6μ, 15μ, 30μ, 50μ)
  • Multiple housing materials (PBT, PA46, PA9T, LCP)
All electrical properties meet industry standards, with mechanical dimensions conforming to manufacturing specifications and environmental protection standards.
Frequently Asked Questions
Are you a trading company or manufacturer?
We are the manufacturer. Welcome to visit our factory.
What is your lead time?
For stock products, delivery within 5-7 working days after payment. For customized or out-of-stock items, delivery time is confirmed based on order quantity.
Can you provide samples? Are they free?
Yes, we typically provide 2-3 samples of standard products free for testing purposes.
Can I put my own logo on the product?
Yes, as a manufacturer with 11 years of OEM experience, we can fully customize products including branding.
