RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD611Q008AF5WD009
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Product Name :
RJ45 with Transformer
Type :
RJ45 USB Combo
Housing :
Phenolic, PBT Black (UL94V-0)
PCB Mount Style :
DIP
LED Color :
Green-Orange/Yellow
Shielding :
Shielding
Orientation :
90° Angle (Right)
Applications Speed :
10/100/1000 Base-T, AutoMDIX
Scope of application :
Electronic equipment
Number of Ports :
1 Port
Operating temperature :
- 40℃～+85℃
Number of pins :
12
Description

RJ45USB Gigabit integrated filter connector Ethernet transformer withs light strip isolation shrapnel USB

Electrical Specifications:

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

Parameters

Part Number DGKYD611Q008AF5WD009 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-up
Filter With Filter LED Option With LED
LED Color Yes Green/Orange-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions  12
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

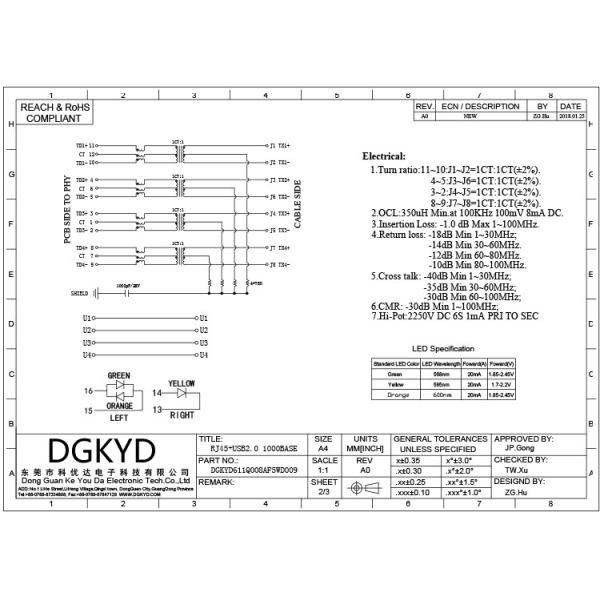

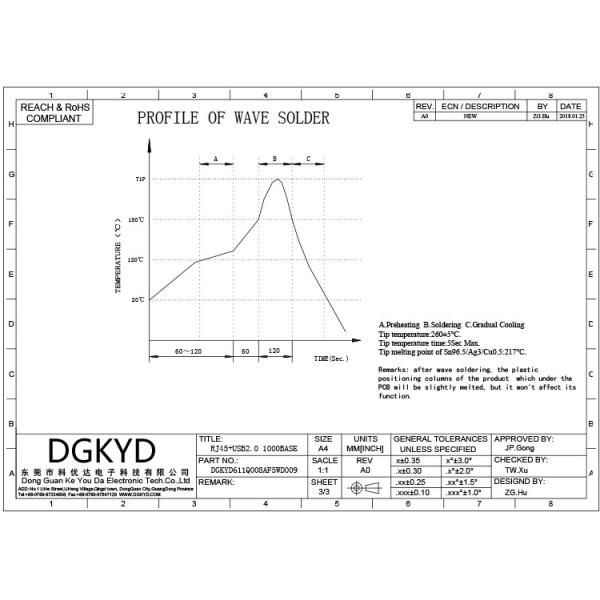

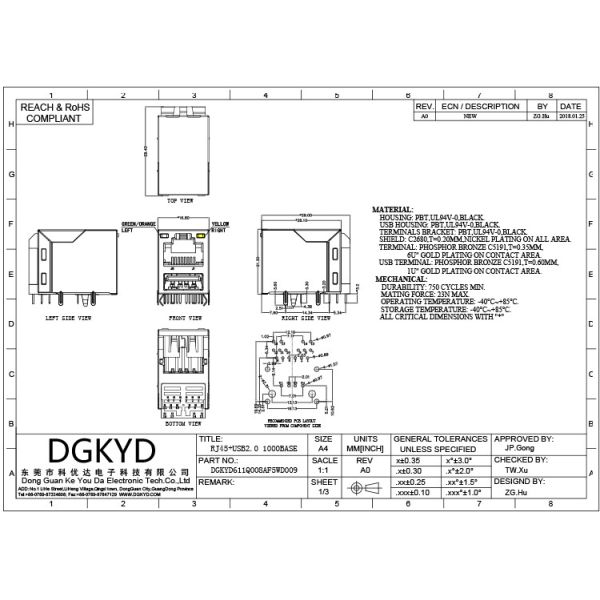

Drawings

RJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USBRJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USBRJ45 USB Gigabit Integrated Filter Connector Ethernet Transformer With Light Strip Isolation Shrapnel USB

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
