Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD-US030-006E
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Shell :
PBT, UL94V-0, black.
Terminal :
phosphor bronze, 15u "gold-plated
Shielding :
brass, T=0.20MM， Nickel plating for 20 minutes
Durability :
Minimum 750 cycles, 12.5MM/MIN.
Insertion force :
maximum 2.2KG. F.
Holding force :
7.7KG. F is between the socket and plug.
STORAGE :
-40℃~+85℃
OPERATION :
-40℃~+85℃
Description
Shielded RJ45 Straight Through Module Side Copper Shell Without Buckle DGKYD-US030-006E
Product Documentation
Download Product Datasheet (PDF)
Product Specifications
Part Number DGKYD-US030-006E Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Filter Without internal filter
LED Option Without LED Panel Stops Without Panel Stops
Shielded Yes Applies To Printed Circuit Board
Performance Speed Standard Grounding Options Panel Ground and PCB Ground
Port Configuration 1 port Number of Positions 8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 15u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color White
Housing Material Temperature Standard UL Flammability Rating UL 94V-0

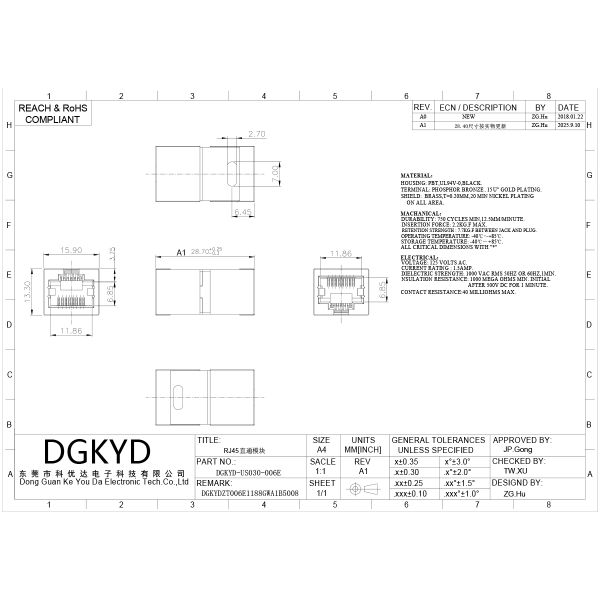

Product Image
Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E

Our Service Commitment
World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Quality
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • DGKYD Is OEM Of FOXCONN For 6 Years
  • Successful Customer: FOXCONN/HUAWEI/ZTE
Competitive Price And Service
  • More Competitive Price Than Pulse Tyco Halo And Amphenol
  • Delivery Time: 1-2 Weeks After Orders
  • Free Samples Are Available
  • Provide New Design For Customer Requirements
DGKYD Corporate Policy
  • The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
  • DGKYD Is Committed To And Expects Quality Performance From Every Employee
  • The Company Standard Is Defect-Free Products And Services
