Specifications
Brand Name :
DGKYD
Model Number :
KRJ-180CGYZNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Type :
RJ45 jack
Product Name :
RJ45 with Transformer
Housing :
Phenolic, PBT Black (UL94V-0)
Plastic core :
Glass fiber filler PBT Black(UL94V-0),ROHS
Shielded :
yes
No.Port :
single port
Status Indicator :
Green/Yellow
Latch Orientation :
Top Entry
Number of Positions/Contacts :
8p8c (RJ45, Ethernet)
Gold plating on contact pins :
6U
Storage temperature :
-40°C~+85°C
Operating temperature :
-40°C~+85°C
Description
180° Top Entry Magnetics Jack RJ45 Connector with Transformer
PCB Mount KRJ-180CGYZNL - Integrated magnetic filtering for reliable network connectivity
Product Overview
Part Number: KRJ-180CGYZNL
Download Technical Datasheet
Technical Specifications
Part NumberKRJ-180CGYZNL
BrandDGKYD/OEM/ODM
Product TypeConnector-Modular
Connector StyleJack
Jack TypeRJ45
Connector TypeModular Jack
Latch StyleStandard TAB-UP
FilterWith Filter
LED OptionWith LED (Green/Yellow)
Panel StopsWith Panel Stops
ShieldedWith metal shield
Applies ToPrinted Circuit Board
Port ConfigurationSingle Ports
Number of Positions8
Jack Configuration1X1
Terminals per Port8
Shield MaterialCopper Alloy preplated with Nickel
PCB Mounting OrientationSide Entry (Right Angle)
Contact Mating Area PlatingGold 6u
Contact Base MaterialPhosphor Bronze
Solder Tail Contact PlatingTin-Lead over Nickel
PCB Mounting StyleThrough Hole
Termination MethodThrough Hole-Press-Fit
Board LockWith/Without Board Lock
Housing MaterialPBT Polyester (Black)
UL Flammability RatingUL 94V-0

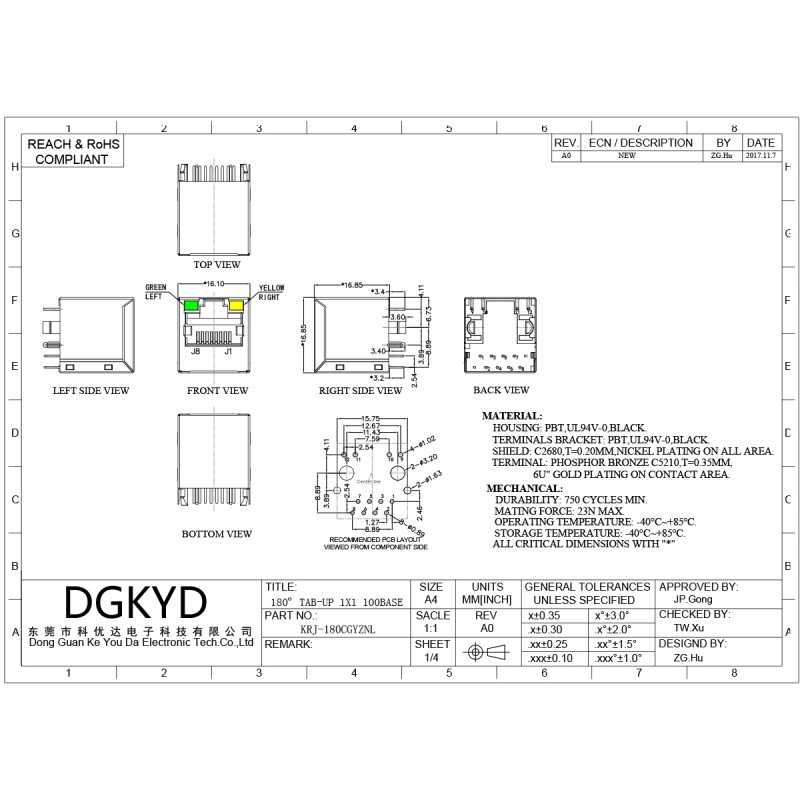

Product Images
180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount KRJ-180CGYZNL 180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount KRJ-180CGYZNL
Manufacturer Information
Company Profile Factory Show Factory Interior Factory Equipment Product Showcase Product Line
Product Features
  • Interface type: RJ45 crystal head application for 10/100/1000BASE-T Ethernet
  • Built-in magnetics for filtering and anti-interference
  • High frequency characteristic for optimal performance
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead-free soldering compatible with wave soldering up to 265℃
  • Complete RJ45 integrated circuit accessories series
  • Manufacturer direct supply with 11-year OEM experience
  • Standard delivery: approximately two weeks
  • Customizable options: LED indicators (green, yellow, red, orange, blue, bi-color)
  • EMI shield fingers optional
  • Magnetic core coil ratio customization available
  • Diverse magnetics circuit options
  • Contact gold plating options: FU, 3U, 6U, 15u, 30U, 50U
  • Housing materials: PBT, PA46, PA9T, LCP
All products meet industry standards for electrical properties, mechanical dimensions, manufacturing specifications, and environmental compliance. Your satisfaction is our primary service objective.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the manufacturer. Welcome to visit our factory.
Q: What is your lead time?
A: Stock items ship within 5-7 working days after payment. Customized and out-of-stock items depend on order quantity - we'll confirm specific delivery times.
Q: Can you provide samples? Are they free?
A: Yes, we typically provide 2-3 standard product samples free for testing purposes.
Q: Can I put my own logo on the products?
A: Yes, as a manufacturer with 11 years of OEM experience, we are fully equipped to customize products with your branding.
