1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-1812WDNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Category :
Modular Jacks
Component Type :
PCB Jack
Magnetic :
Yes
Performance Category :
cat5&6
Product Name :
Magnetic Jack, Modular Jack 10/8
Insetion Type :
180 degree/ Vtertical
Description

1000 Base-T Magnetic connector module, vertical insertion, metal shielded
ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
SPEED Cat 5/6
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP NONE
PCB MOUNT ANGLE Top Entry
PACKAGE THT
NUMBER OF POSITIONS 10
NUMBER OF PORTS RJ45
NUMBER OF CONTACTS 8
LED OPTION NONE
LATCH UP
KEYED NO
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK/BLUE

► Product Featrures

RJ45 jacks with integrated magnetics (i.e. wirewound components) capable of meeting the high performance needs of today's telecommunications and networking applications.

• CAT3 to CAT6 connectors are available in shielded and unshielded configurations to support Gigabit Ethernet

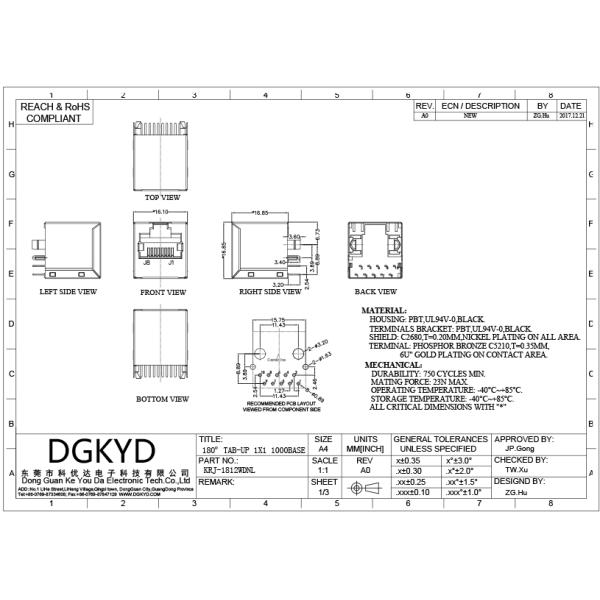

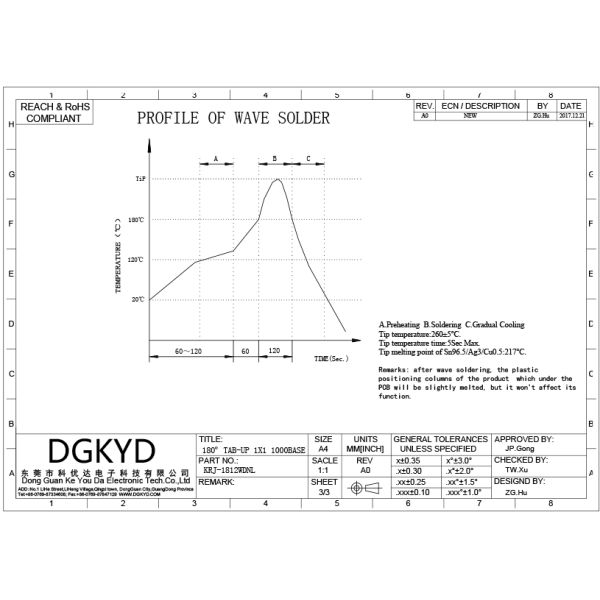

► Product Drawing

1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded

► Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
