Specifications
Model Number :
DGKYD211Q784CB2A4D
PCB Mount Angle :
SIDE ENTRY
Brand Name :
DGKYD
Mount Stlye :
Though Hole
MOQ :
1 piece
Delivery Time :
10 days
Latch :
Tab-UP
Gender :
Female RJ45
operation temperature :
-40°C~+85°C
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Price :
Please contact us to get the latest price.
Application :
lan,bridge,PC,router,usb hub network rj45 and other ethernet devices
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
RJ45 Suitable :
for CAT5&6 Ethernet Cable or UTP
Product Name :
RJ45 Ethernet Connector
Supply Ability :
100K pcs/day
Feature :
High performance,magnetics
Place of Origin :
DongGuan of China
storage temperature :
-40°C~+85°C
Packaging Details :
Tray in Carton
Description
Gigabit Connector Molded Block Socket Industrial-Grade RJ45 Network Interface DGKYD211Q784CB2A4D
Product Overview

Gigabit connector molded block socket industrial-grade RJ45 network interface DGKYD211Q784CB2A4D

Product Specification Document (PDF)

Key Features
  • Interface type: Crystal head application for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working frequency: High frequency with filtering and anti-interference characteristics
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead-free soldering: Wave soldering height up to 265℃
Manufacturing Capabilities
  • Business mode: Manufacturer direct supply
  • Delivery time: Approximately two weeks
  • Customization options: LED indicator lights (green, yellow, red, orange, blue, bi-color)
  • Shield with EMI fingers or standard
  • Coil ratio of magnetic core options
  • Magnetics circuit diversification
  • Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material options (PBT, PA46, PA9T, LCP)
Performance Parameters
  • Applied to Ethernet with coil ratio: 1CT:1CT
  • Complies with IEEE 802.3 & ANSI X 3.263 standards
  • Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8mA DC Bias
  • Wave soldering process of 265℃ Max meeting EU ROHS standards
  • Withstand voltage: 2250VDC 1mA max, 60s
  • Impedance: 100 ohms
  • RJ45 interface meets FCC 68.5 standard
  • DC resistance: 1.5 Ω
Technical Specifications
Parameter Specification
Part Number DGKYD211Q784CB2A4D
Brand DGKYD/OEM/ODM
Place of Origin Guangdong, China
Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch TAB-UP
Filter With Filter
LED Option With LED
LED Color Green/Yellow
Panel Stops With Panel Stops
Shielded Yes
Applies To Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX
Suitable for welding type Reflowsolding (Alternative)
Port Configuration Single Ports
Number of Positions 10
Jack Configuration 1X1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0

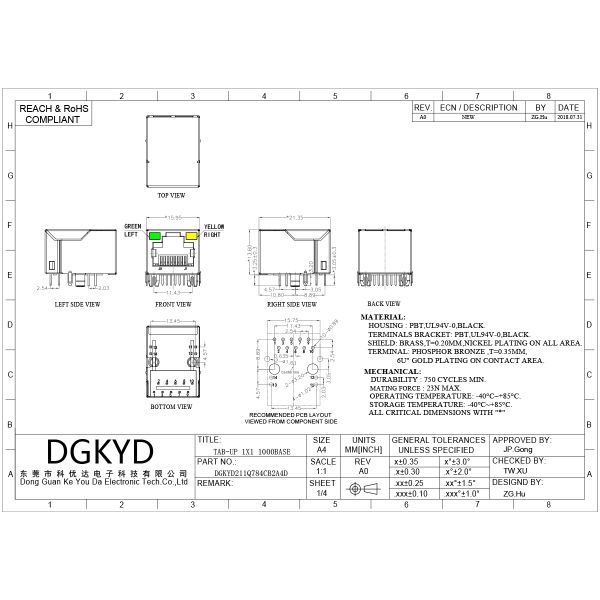

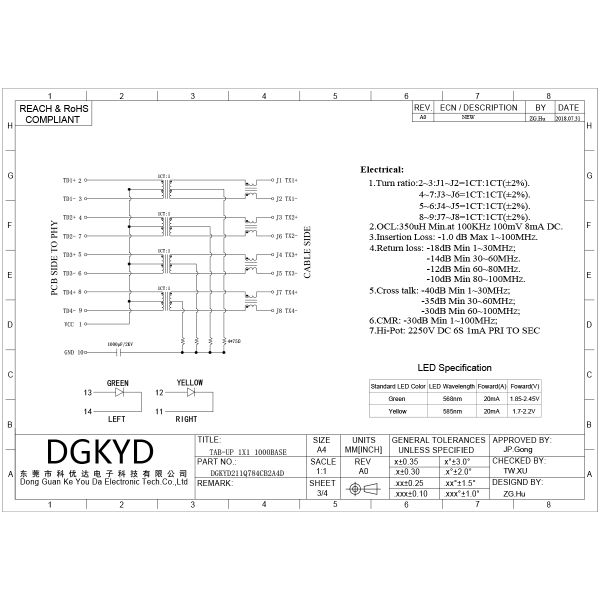

Product Images
Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking
Competitive Advantages

Keyouda offers various types of appearance and multiple internal schematic products with high quality. Our key advantages include customer-first approach, 100% testing, zero defects, and short lead times.

Applications
  • 10/100M network cards
  • PCMCIA network cards
  • USB Hubs
  • Network switches and routers
  • Fiber optic transceivers and optical transceivers
  • IP phones
  • Internet set-top boxes
  • Internet cameras
  • Network bridges
  • Computers and telecommunication equipment
  • MODEMs
  • HomePNA systems
  • DSL/ADSL equipment
Our Service Commitment
World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Quality
  • Manufactured under strict controls
  • 100% tested (not just batch tested)
  • DGKYD is OEM of FOXCONN for 6 years
  • Successful customers: FOXCONN, HUAWEI, ZTE
Competitive Price And Service
  • More competitive pricing than Pulse, Tyco, Halo, and Amphenol
  • Delivery time: 1-2 weeks after orders
  • Free samples available
  • Custom design services for customer requirements
DGKYD Corporate Policy
  • Corporate goal: Achieve the highest level of customer satisfaction through continuous improvements in quality, delivery, and service
  • Committed to quality performance from every employee
  • Company standard: Defect-free products and services
