Specifications
Brand Name :
DGKYD
Model Number :
DGKYD411Q117DF5A1DP
Certification :
RoHS/CE/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
60000pcs per day
Delivery Time :
7-14days
Packaging Details :
1080pcs/carton
Product Name :
RJ45 ethernet jack
Housing Material :
PA9T Black
Number of Ports :
Single Port
Clamp direction :
TAB-UP
Integrated transformer :
2.5G
PCB Mount Style :
DIP
LED option :
With LED
Shield :
With metal shield
Product standard :
Meets IEEE 802.3 specification
operation temperature :
-40°C~+85°C
storage temperature :
-40°C~+85°C
Description
Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP
Part Number: DGKYD411Q117DF5A1DP
Product Documentation
DGKYD411Q117DF5A1DP.pdf
Technical Parameters
Part Number DGKYD411Q117DF5A1DP Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Green/Orange-Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Port Number of Positions 12
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0

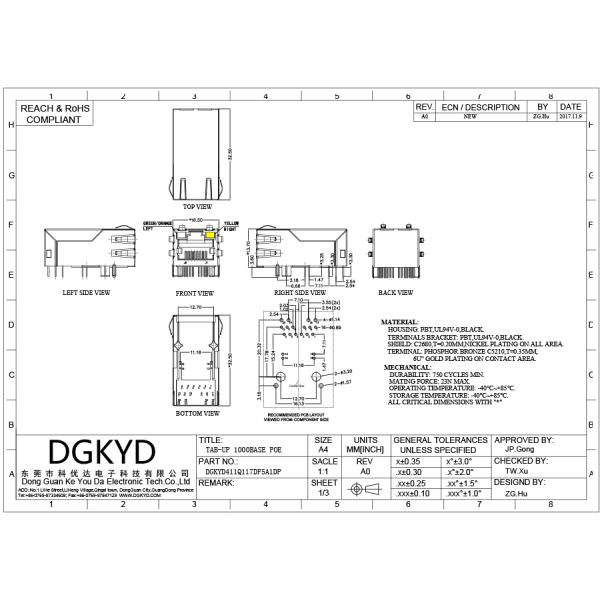

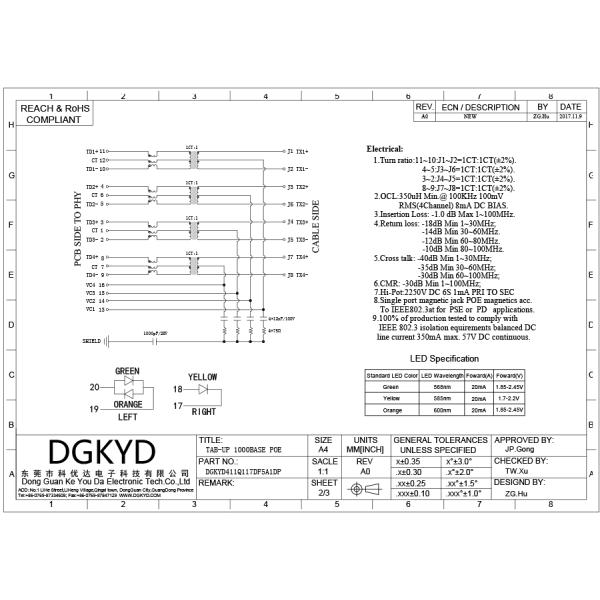

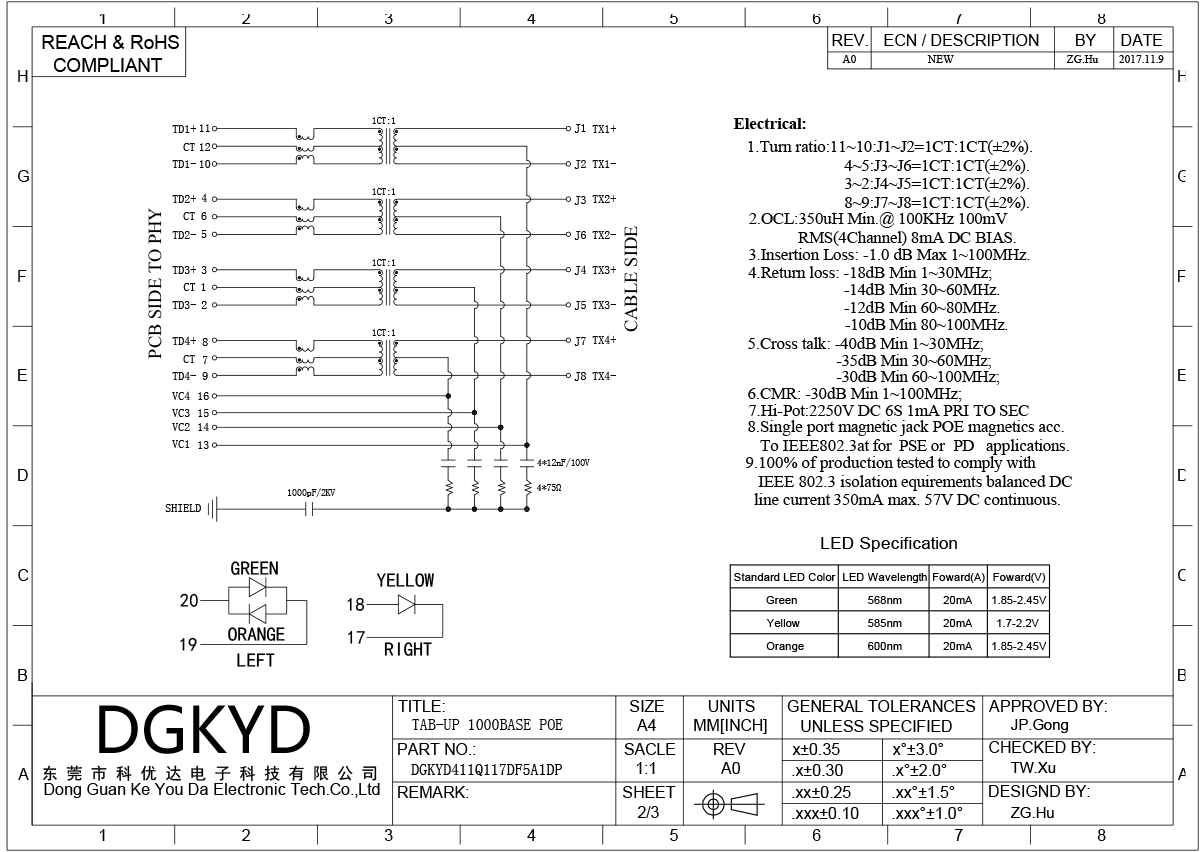

Product Images


Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP

Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP

Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
