Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Specifications
Performance Category :
Cat6
Model Number :
DGKYD211Q138DB1A7CBS057
LED :
Yellow/Green
Number of Positions/Contacts :
8p10c (RJ45, Ethernet)
MOQ :
1 piece
Delivery Time :
10 days
Product Name :
Extra low profile RJ45 connector SMD
Brand Name :
DGKYD
Gold plating on contact pins :
6U
Packaging Details :
Tray in Carton
Shield :
phosphor copper nickel plating
Operating temperature :
-40°C~+85°C
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
OEM/ODM :
Yes
Storage temperature :
-40°C~+85°C
Supply Ability :
100K pcs/day
Port :
SIngle ports
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Mount Style :
SMT
Price :
Please contact us to get the latest price.
Feature :
RJ45 network port
Place of Origin :
DongGuan of China
Description
RJ45 Connector Industrial Ethernet Port with Light Strip and Spring Clip Patch DGKYD211Q138DB1A7CBS057
Product Overview

Industrial-grade RJ45 connector featuring integrated light strip and spring clip patch design. Part number: DGKYD211Q138DB1A7CBS057

Download Product Datasheet (PDF)

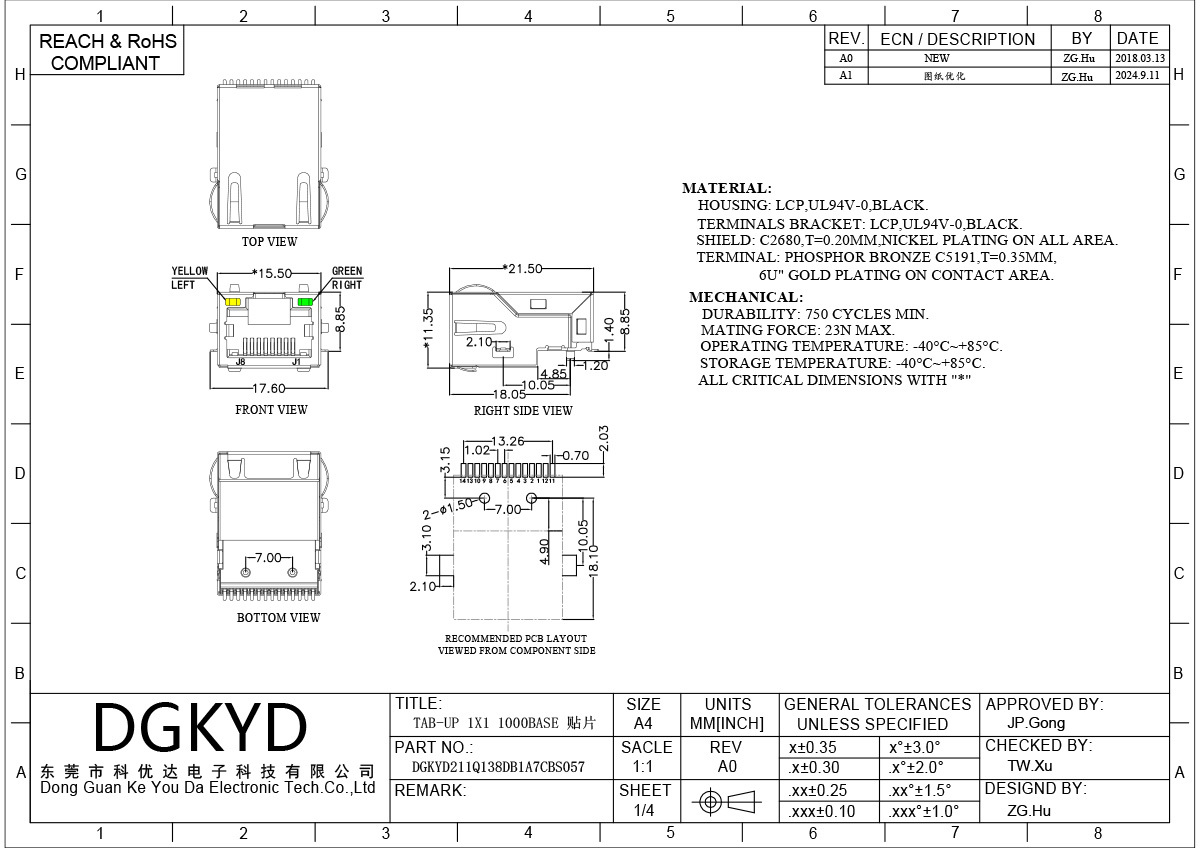

Technical Specifications
Part Number DGKYD211Q138DB1A7CBS057 Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Yellow/Green Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Ports Number of Positions 10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material LCP Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
Product Images
Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting
Product Features & Specifications
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet

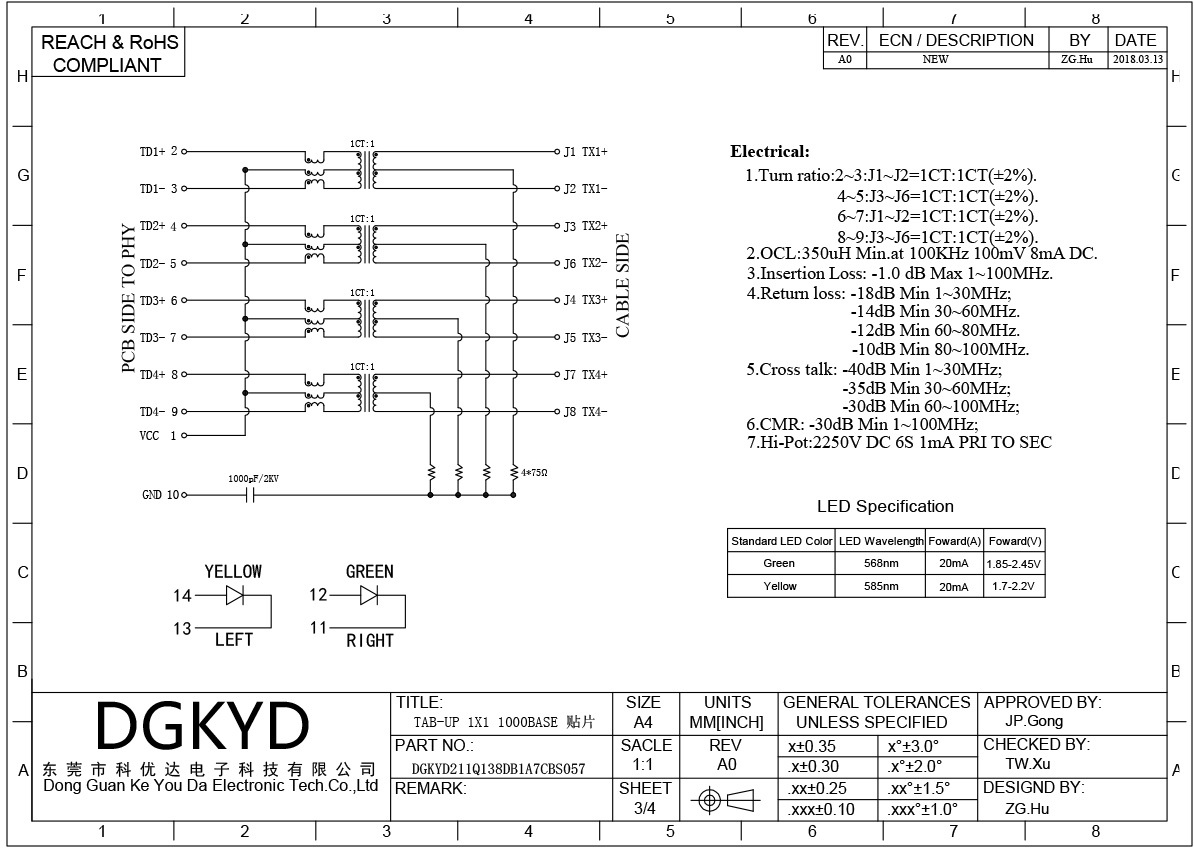

  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
Manufacturing Capabilities
  • RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Customization options: LED indicator lights (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)
  • Products meet industry standards for electrical properties, appearance dimensions, mechanical manufacturing, and environmental protection
Frequently Asked Questions
Are you trading company or manufacture?
We are manufacturer. Welcome to our factory.
What about your lead time?
For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Can you provide samples? Are they free?
Yes. Usually we can provide 2-3 samples of standard products free for testing.
Can I put my own logo on it?
Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
