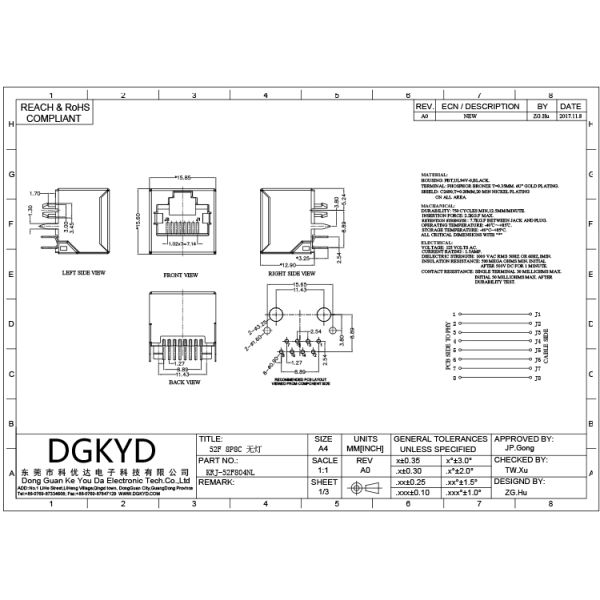

12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-52F804NL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union,
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Speed :
CAT 3/5/6
Latch :
Vertical Entry
Shield :
YES
Height :
12.9mm
Description

12.9mm height extra low 180 degree RJ45 keystone jack top entry ethernet connector

12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack

Material:

1. Housing :PBT(UL94V-0),PA66(UL94V-0),PA46(UL94V-0) optional

2. Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel,0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield:0.20~0.25mm thickness brass with tin plated
4.Gold Plating :3u inch ,6u inch,15u inch,30u inch,50u inch

Applications:

• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.
