KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-138NL
Price :
Please contact us to get the latest price.
LEDS/EMI fingers :
custom,as your need
Performance :
CAT5,5E
RJ45 Suitable :
for CAT5&6 Ethernet Cable or UTP
Product Name :
Magnetic Jack, Modular Jack 8/8, RJ45
Description

Parameters

Part Number KRJ-138NL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color Green/Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

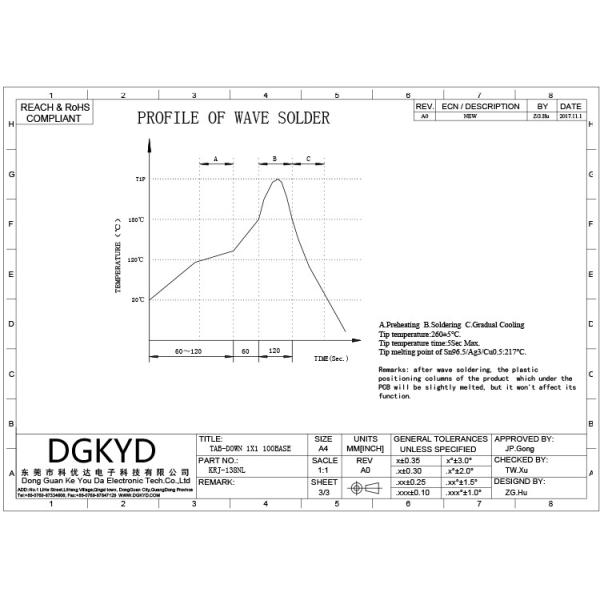

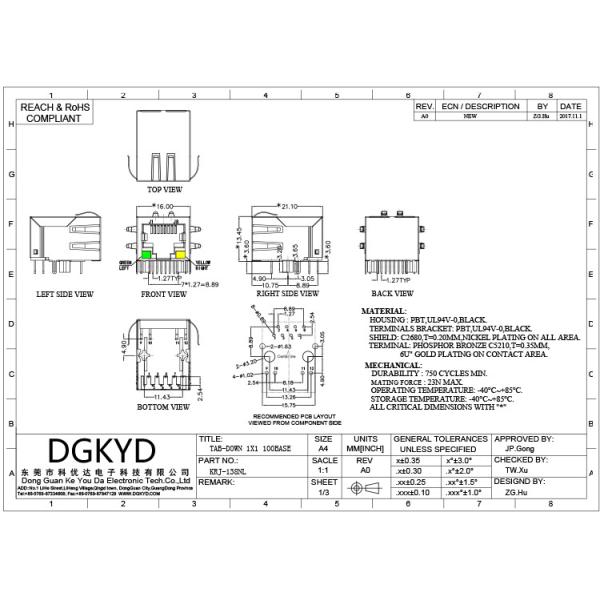

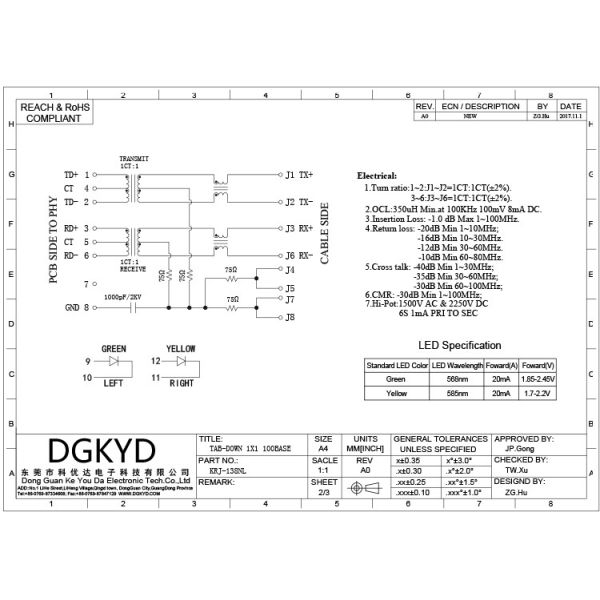

Drawings

KRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular JacksKRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular JacksKRJ-138NL 10/100 RJ45 Ethernet Connector with transformer, EMI Magnetic Modular Jacks
