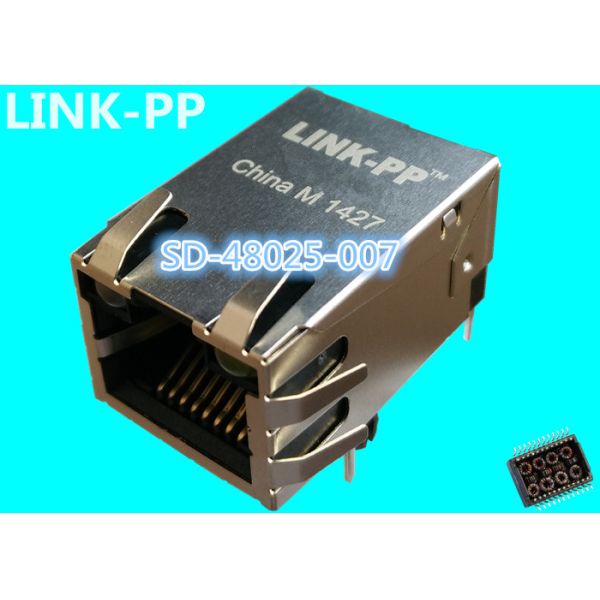

SD-48025-007 Magnetic RJ45 Jack LPJ1035AHNL 10 / 100M 25.4mm Shiled With LEDs
SD-48025-007 Magnetic RJ45 Jack LPJ1035AHNL 10 / 100M 25.4mm Shiled With LEDs
Specifications
Brand Name :
LINK-PP
Model Number :
SD-48025-007
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
part Number :
SD-48025-007
Specification :
LPJ1035AHNL
Cross&Datasheet :
LPJ1035AHNL
Apllication :
10/100 or 1000Base-T(x)
Original Munafactuer :
LINK-PP
Project Application :
NETWORK INTERFACE CARD
Description

SD-48025-007 Magnetic RJ45 Jack LPJ1035AHNL 10 / 100M 25.4mm Shiled With LEDs

Competitor Cross Reference

Part Number

Manufacturer

Part Number

 Manufacturer Description

SD-48025-007

LPJ1035AHNL

 LINK-PP

SD-48025-007 Magnetic RJ45 Jack LPJ1035AHNL 10 / 100M 25.4mm Shiled With LEDs
Series Connector Type Applications Mounting Type
Connectors, Interconnects LINK-PP Female Rj45

10/100

or 1000 Mbps

 Thru-Hole(SMT for Single Port)
Orientation Termination LED Color Shielding

90° Angle (Right) or

180°(Vertical)

 Solder With Or Without (Un)Shielded,EMI-Finger(With Or Wi)

Features

  • RJ-45 connector integrated with Filter
  • Size same as RJ-45 connector to save PCB board space
  • Reduce EMI radiation, Improve EMI performance
  • High performance for maximum EMI suppression.
  • ISO9001,SGS,UL,CE,REACH
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • Reduce EMI radiation, Improve EMI performance
  • Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,
  • Multi-port and Stackable configurations (Thru-hole/ SMT)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction

Related Part

SI-60085-F ARJ11G-MBSC-MU2 857913020 85793-1007
SI-60088-F ARJ11G-MBSD-LU2 857914020 85793-1007
SI-60089-F ARJ11G-MBSE-MU2 857931001 85793-1007
SI-60090-F ARJ12A-MASD-A-B-EMU2 857931001 85793-1010
SI-60091-F ARJ12A-MASD-A-B-FMU2 857931003 85793-1012
SI-60092-F ARJ12A-MCSD-MU2 857931006 85793-1013
SI-60093-F ARJ14A-MSA-MU2 857931007 85793-1014
SI-60095-F ARJ14A-MSB-MU2 857931007 85793-1020
SI-60096-F ARJ14A-MSC-MU2 857931007 85793-1020
SI-60097-F ARJ14A-MSD-A-B-ΔMU2 857931010 85793-1020
SI-60098-F ARJ14A-MSD-MU2 857931012 85793-3006
SI-60101-F ARJ14A-MBSD-A-B-EMU2 857931013 85793-3007
SI-60102-F ARJ21A-MCSA-LU2 857931014 95540-2881
SI-60103-F ARJ21A-MCSB-MU2 857931020 95540-7886
SI-60104-F ARJ21A-MCSC-MU2 857931020 95622-3882
SI-60105-F ARJ21A-MCSD-MU2 857931020 95622-3981
SI-60106-F ARJ21A-MBSD-A-B-EMU2 857933006 438146621
SI-60107-F ARJ-101D 857933007 432024101

SD-48025-007 Magnetic RJ45 Jack LPJ1035AHNL 10 / 100M 25.4mm Shiled With LEDs

SD-48025-007 Magnetic RJ45 Jack LPJ1035AHNL 10 / 100M 25.4mm Shiled With LEDs

Why Choose LINK-PP

Quality

World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.

Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .

  • Manufactured under strict controls.
  • ISO 9001:2008
  • UL Certification
  • Reach Cetitifaction
  • RoHS compliance
  • OEM Of TE(Tyco) For 9 Years
  • Active Environmental policy
  • Every module tested (not just batch tested)
Main Customers

Texas Instruments INTEL SAMSUNG FLUKE EKF HUAWEI IBM CISCO
FLEXTRONICS JABIL Foxconn CANON Arduino -- --- ---

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments

LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board

LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
