Specifications
Brand Name :
LINK-PP
Model Number :
RJ-001
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
part Number :
RJ-001
Specification :
LPJ0025CNL
Cross&Datasheet :
LPJ0025CNL
Apllication :
10/100
Original Munafactuer :
LINK-PP
Mail Customer :
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics
Description

RJ-001 Magnetic RJ45 Jack with Resistor / High Voltage Capacitor LPJ0025CNL

Competitor Cross Reference

Part Number

Manufacturer

Part Number

 Manufacturer Description

RJ-001

LPJ0025CNL

 LINK-PP

RJ-001 Magnetic RJ45 Jack with Resistor / High Voltage Capacitor LPJ0025CNL
Series Connector Type Applications Mounting Type
Connectors, Interconnects LINK-PP Female Rj45

10/100

Mbps Optional

 Thru-Hole(Optional)
Orientation Termination LED Color Shielding

90° Angle (Right) or

180°(Vertical)Optional

 Solder Optional (Un)Shielded,EMI-Finger(With Or Wi)
Features
  • RJ-45 needs to be matched FCC standard.
  • Complies with requirement of IEEE802.3u standards.

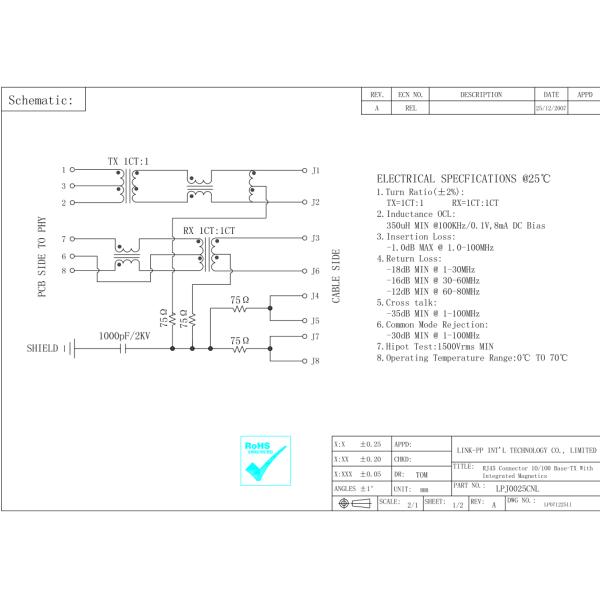

  • RJ-45 connector integrated with transformer/impedance
    resistor/high voltage capacitor.
  • Size same as RJ-45 connector to save PCB board space.
  • Reduced EMI radiation to improve EMI performance.
  • Design for 10/100 BASE transmission over UTP-5 cable.
  • LEDS are isolated to reduce cross talk and electro-magnetics
    interference.
  • Compliance with ROHS requirements.
  • Operating temperature range: 0℃ to +70℃.
  • Storage temperature range: -40℃ to +85℃.
  • Designed to support applications, such as SOHO (ADSL modems), LAN-on-Mother-
    board (LOM), Hub and Switches

Related Part

TG110-S131N2RL MJF13T36L-KF06B3xx-0808 J0033D21 XFATM6B
TG110-S139N2RL MJF13T36UL-KF06B3YG-0808 J0033D21NL XFATM6BIT
TG110-3506N6RL MJF13T112UL-KF06A31YGGX-0808 J2045J329E XFATM6IT
TG110-S101N6RL MJF13T112UL-KF06A31GOYX-0808 J2039H3A XFATM6P
TG110-S141N5RL MJF13T112UL-KF06A31GOYX-0808 J2042H3A XFATM6PM
TG110-E125N5RL MUJT10UL-KX03GOYX-88AA J2042H3ANL XFATM6TH
TG110-E055N5LF MUJL-RYG-88AA J2045H3A XFATM7
TG110-E050N5RL MJF25T09ULB2-KF06A4GY-0808 J2045J349E XFATM7B
TG110-E050N5LF MJF13T3L-KF06B3YG-0808 J2045J369E XFATM8
TG110-E120N5RL MOX-RJ45-1SM J2039H3B XFATM8B
TG110-E055N5RL MOX-RJ45TD-006 J2042H3B XFATM8Q1

RJ-001 Magnetic RJ45 Jack with Resistor / High Voltage Capacitor LPJ0025CNL

RJ-001 Magnetic RJ45 Jack with Resistor / High Voltage Capacitor LPJ0025CNL

Why Choose LINK-PP

Quality

World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.

Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .

  • Manufactured under strict controls.
  • ISO 9001:2008
  • UL Certification
  • Reach Cetitifaction
  • RoHS compliance
  • OEM Of TE(Tyco) For 9 Years
  • Active Environmental policy
  • Every module tested (not just batch tested)
Main Customers

Texas Instruments INTEL SAMSUNG FLUKE EKF HUAWEI IBM CISCO
FLEXTRONICS JABIL Foxconn CANON Arduino -- --- ---

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments

LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board

LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
