1-1840744-8 Gigabit RJ45 Jack Female Connector 12PIN 1000 BASE-T Green/Green&Orange LED
1-1840744-8 Gigabit RJ45 Jack Female Connector 12PIN 1000 BASE-T Green/Green&Orange LED
1-1840744-8 Gigabit RJ45 Jack Female Connector 12PIN 1000 BASE-T Green/Green&Orange LED
1-1840744-8 Gigabit RJ45 Jack Female Connector 12PIN 1000 BASE-T Green/Green&Orange LED
1-1840744-8 Gigabit RJ45 Jack Female Connector 12PIN 1000 BASE-T Green/Green&Orange LED
1-1840744-8 Gigabit RJ45 Jack Female Connector 12PIN 1000 BASE-T Green/Green&Orange LED
Specifications
Brand Name :
LINK-PP
Model Number :
1-1840744-8
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000
Price :
OEM Price
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Original P/N :
1-1840744-8
Number of Ports :
1X1
Ethernet :
1000BASE-T
Samples :
Free Available
LED :
With
Lifecycle :
More than 20Years
Operating Temperature :
-40 ~ +85ºC
Tab :
Up
Description

1-1840744-8 Tab Up 1000 BASE-T Gigabit RJ45 Jack Female Connector

Part Number 1-1840744-8
Part Status Active
Speed 1000 BASE-T
Connector Type MagJack
Number of Positions/Contacts 12p8c (RJ45, Ethernet)
Cores per Port 4
LED Option Green/Green&Orange
Latch Tab Up
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs WITH
Operating Temperature -40 to 85ºC
EMI Tabs Yes
Mounting Type Through-Hole Mount
RoHS Compliant YES

Materials

•Housing: Thermoplastic, Black, Flammability Rating UL 94V-0

•Shield: Brass, 0.20mm thick, preplated with min 2.03um Nickel, post dipped with 2.54um min SAC solder at ground pins.

•Contact: Phosphor Bronze, 0.35mm thick, preplated with 1.27um min overpalladium nickel underplate and selective 1.27um min gold plating at mating interface.

•Solder Tail: Copper Cladded Steel, 0.50mm square, plated with 2.54um min matte tin.

•Light Pipe: Polycarbon, Transparent, Rating UL 94V-0

•LED: Diffused Epoxy Lens, 0.50mm square carbon steel wireframe leads, preplated with 2.03um min silver over 1.02um min nickel underplate and post plated with 2.54um min tin.

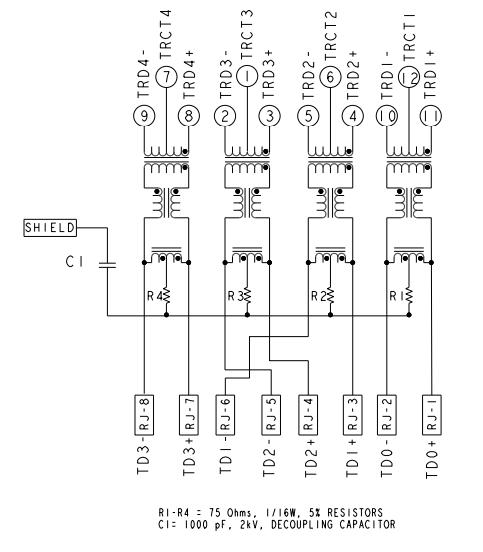

1-1840744-8 Gigabit RJ45 Female Connector Electrical Schematic:
1-1840744-8 Gigabit RJ45 Jack Female Connector 12PIN 1000 BASE-T Green/Green&Orange LED


1-1840744-8 1000 BASE-T ICMs Package:


1-1840744-8 Gigabit RJ45 Jack Female Connector 12PIN 1000 BASE-T Green/Green&Orange LED
