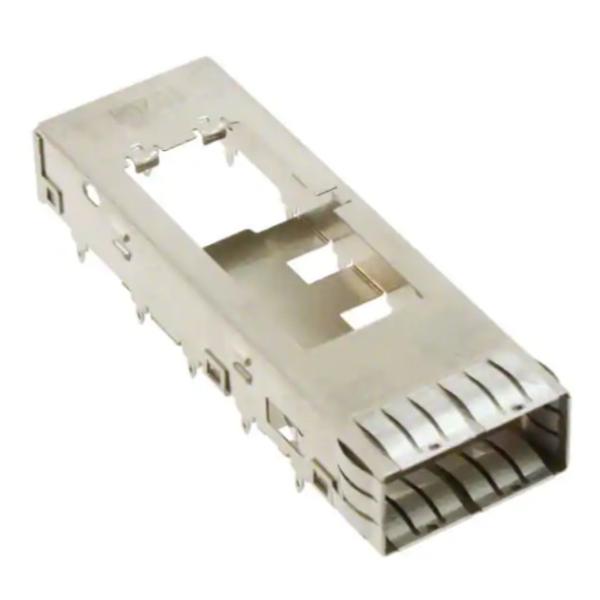

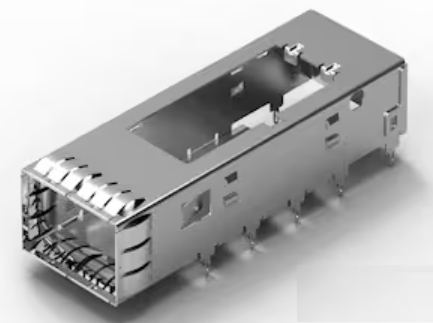

The TE 1888617-1 QSFP+ Cage is a single-port, through-bezel cage assembly designed for QSFP+ pluggable I/O applications. It is intended for use with QSFP MSA-compatible transceivers and uses a through-hole press-fit termination method for PCB attachment. The cage features internal/external EMI springs, a nickel silver cage body, and heat sink compatibility, making it suitable for high-density, signal-focused networking designs.

Technical Specifications of 1888617-1 QSFP+ Cage

Why Choose TE 1888617-1 QSFP+ Cage Assembly?

If you are looking for a reliable QSFP+ cage for compact host board designs, this part offers a clean fit for 1 x 1 port matrix implementations and supports SFP+ stacked belly-to-belly applications as listed in the drawing/spec data. The design also includes EMI containment features and a UL 94V-0 flammability rating, helping it align with demanding system-level hardware requirements.

Key Product Features

• Pluggable I/O Product Type: Cage
• Form Factor: QSFP+
• Cage Type: Single
• Port Configuration: 1 port, 1 x 1 matrix
• EMI Containment: Internal/External EMI springs
• Termination Method: Through Hole - Press-Fit
• Heat Sink Compatible: Yes
• Cage Material: Nickel Silver
• PCB Contact Termination Plating: Tin
• Flammability Rating: UL 94V-0
• Packaging: Box & Tray

1888617-1 QSFP+ Cage Datasheet - Recommanded PCB Layout

1888617-1 QSFP+ Cage Notes

For layout planning, TE specifies a through-hole press-fit mounting approach and provides PCB-related guidance in the customer drawing. The drawing also identifies datum A as the top surface of the host board and notes that the product is intended for specific host-board mechanical constraints, including the minimum board thickness requirements mentioned above.

To ensure optimal performance and assembly, please adhere to the following technical guidelines:

1. PCB Requirements: The recommended minimum board thickness is 1.45 mm for single-sided applications and 2.2 mm for double-sided (belly-to-belly) applications.
2. Compatibility: This cage is designed to mate with all QSFP MSA compatible transceivers.
3. Spring Finishing: The EMI springs feature a finish of 0.8 µm minimum Tin over 0.8 µm minimum Nickel.
4. Trace Clearance: Surface traces are permitted within the specified area, provided they do not contact the cage standoffs.
5. Identification: Each unit includes a 2D barcode and date code (YYWWD) for streamlined inventory tracking and quality control.

Typical Applications

The TE 1888617-1 QSFP+ Cage is a strong fit for:

• High-speed networking equipment
• Switches and routers
• QSFP+ port designs
• Dense I/O panels
• Signal interconnect platforms requiring EMI control

FAQ About 1888617-1 QSFP+ Cage

Q1. Is the TE 1888617-1 designed for QSFP+ modules?

Yes. The drawing identifies it as a QSFP+ pluggable I/O cage and states that it mates with QSFP MSA-compatible transceivers.

Q2. What mounting method does this cage use?

It uses through-hole press-fit termination to the PCB.

Q3. Does the cage include EMI protection?

Yes. The part includes internal/external EMI springs for EMI containment.

Q4. What PCB thickness is recommended?

TE specifies 1.45 mm minimum for single-sided boards and 2.2 mm for double-sided boards.

Q5. Is it heat sink compatible?

Yes, the product is listed as heat sink compatible.
