4-2170808-3 QSFP28/56 Cage Assembly Ganged 1x2 Configuration
4-2170808-3 QSFP28/56 Cage Assembly Ganged 1x2 Configuration
4-2170808-3 QSFP28/56 Cage Assembly Ganged 1x2 Configuration
4-2170808-3 QSFP28/56 Cage Assembly Ganged 1x2 Configuration
Specifications
Brand Name :
LINK-PP
Model Number :
4-2170808-3
Certification :
ISO 9001,ISO 14001,UL,SGS,REACH168
Place of Origin :
Guangdong,China
MOQ :
10/100/25K
Price :
$0.11-$35
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
350K/Month
Delivery Time :
In Stock Ship Within 3 Days
Packaging Details :
20/Tray
Specifications :
4-2170808-3
Form Factor :
QSFP28/56
UL Flammability Rating :
UL 94V-0
EMI Springs :
YES
Heat Sink :
With
Environment :
Lead-free / RoHS Compliant
Description

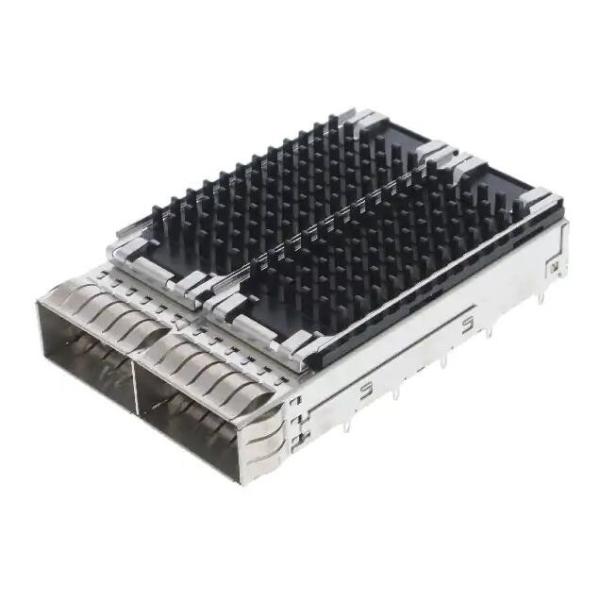

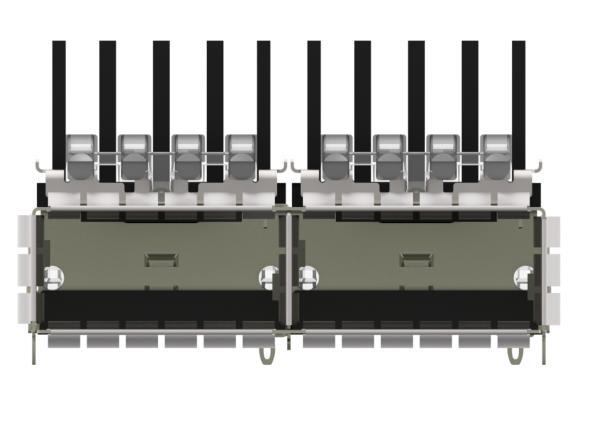

QSFP28/56 Cage Assembly with Integrated Heat Sink

4-2170808-3 TE Cage Assembly Description

This QSFP28/56 cage assembly is designed for high-speed pluggable I/O applications, offering excellent thermal performance with an integrated anodized black pin-style heat sink. The robust nickel-silver cage construction ensures EMI containment, reliable signal integrity, and mechanical durability, making it an ideal solution for networking equipment operating at up to 28 Gb/s per lane.

Specifications of 4-2170808-3 QSFP28/56​ Cage

Part Status

Active

Connector Style

Cage, Ganged (1 x 2) with Heat Sink

Connector Type

QSFP28,56

Part Number

4-2170808-3

Mounting Type

Through Hole, Right Angle

Termination

Press-Fit

Features

EMI Shielded

Key Features

Product Type & Form Factor

  • Pluggable I/O Product Type: Cage Assembly
  • Form Factor: QSFP28/56
  • Cage Type: Ganged (1 x 2 Port Matrix Configuration)
  • Number of Ports: 2
  • Sealable: No
  • Included Accessory: Heat Sink (Anodized Black, Pin Style)

Configuration Features

  • Number of Rear EONs per Port Column: 1
  • Port Matrix: 1 x 2

Electrical Characteristics

  • Maximum Data Rate: 28 Gb/s

Thermal & Mechanical Features

  • Heat Sink Type: Pin-style, Networking Class
  • Heat Sink Height: 13.5 mm [0.531 in]
  • Finish: Anodized Black
  • Cage Material: Nickel Silver
  • PCB Contact Termination: Tin Plating
  • Termination Method: Through-Hole, Press-Fit
  • Termination Post & Tail Length: 2.05 mm [0.081 in]

Housing & Dimensions

  • PCB Thickness (Recommended): 1.57 mm [0.062 in]

Usage & Reliability

  • Operating Temperature Range: -40 °C to +85 °C [-40 °F to +185 °F]
  • Circuit Application: Signal
  • Application: SFP+ Stacked Belly-to-Belly

Standards & Compliance

  • UL Flammability Rating: UL 94V-0
  • EMI Containment: Internal/External EMI Springs

Packaging

  • Packaging Method: Box & Tray
  • Lightpipe: Included
