Specifications
Brand Name :
LINK-PP
Model Number :
KLS12-TL002
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
KLS12-TL002R-1X1-GY-1-03
Part No :
LPJ0011AENL
Apllication :
10/100 Base-TX, AutoMDIX
Features :
Board Guide
Samples :
Free Available
Description

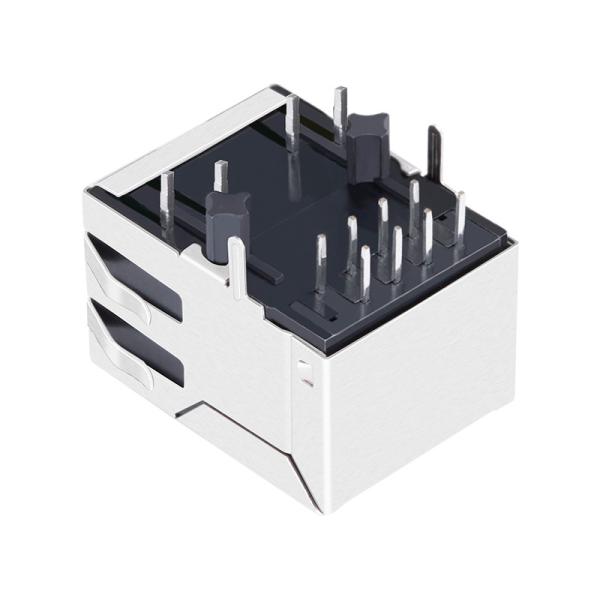

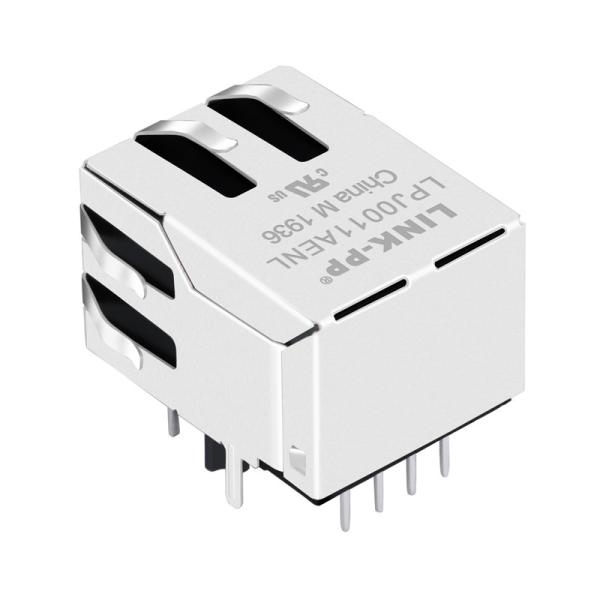

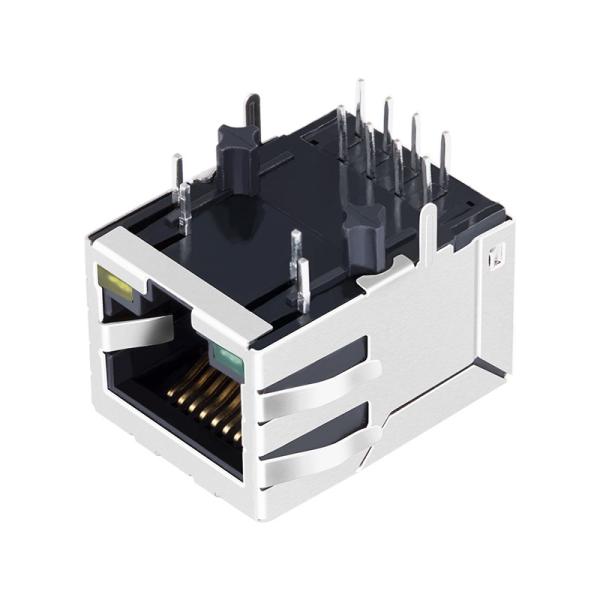

KLS12-TL002 , LPJ0011AENL 1x1 Magnetic Rj45 KLS12-TL002R-1X1-GY-1-03

  1. 10/100Mbps Rj45 Specification KLS12-TL002 Rj45 Connector with led
  2. Fast Ethernet Female Jack KLS12-TL002R-1X1-GY-1-03 Specification
  3. LINK-PP LPJ0011AENL 10/100Base-T 8P8C Jack
  4. 1CT:1CT ,1500V Hipot Ethernet 10/100base-T Connectivity
  5. PHY Interface With Rj45 Magnetics Modular Jack

Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃.
