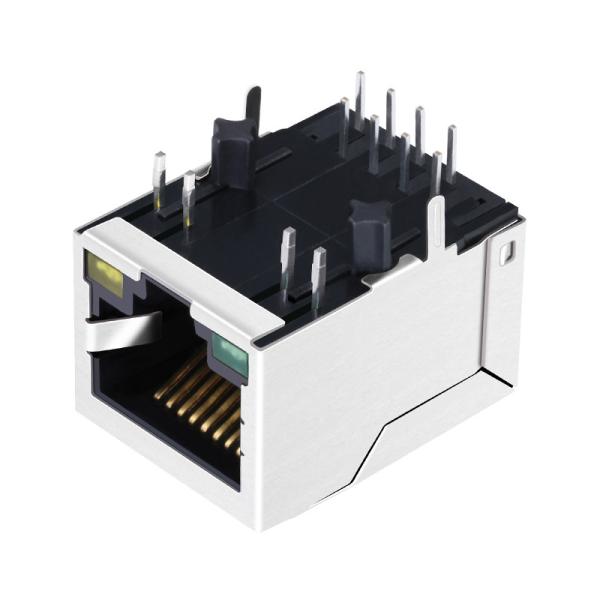

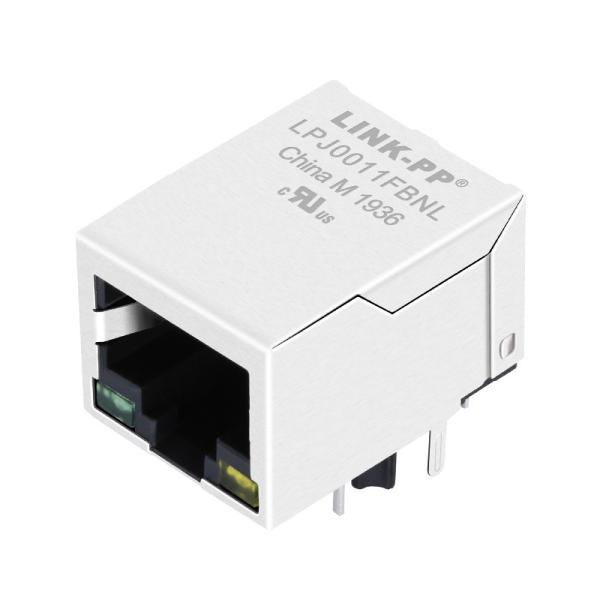

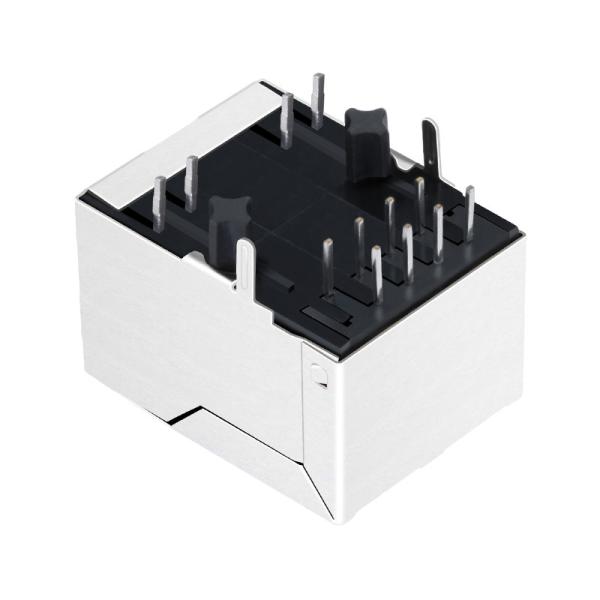

RJ3T113N RJ45 Magjack LPJ0011FBNL W / LED 4 Cores Circuits PCB Connectors
RJ3T113N RJ45 Magjack LPJ0011FBNL W / LED 4 Cores Circuits PCB Connectors
RJ3T113N RJ45 Magjack LPJ0011FBNL W / LED 4 Cores Circuits PCB Connectors
RJ3T113N RJ45 Magjack LPJ0011FBNL W / LED 4 Cores Circuits PCB Connectors
RJ3T113N RJ45 Magjack LPJ0011FBNL W / LED 4 Cores Circuits PCB Connectors
RJ3T113N RJ45 Magjack LPJ0011FBNL W / LED 4 Cores Circuits PCB Connectors
Specifications
Brand Name :
LINK-PP
Model Number :
RJ3T113N
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Number of Port :
1X1
Latch :
Up
Mounting :
Through Hole
EMI Tabs :
Without
LED Color :
Left Green/ Right Yellow
PoE :
NONE
Description

RJ45 Magnetic Jack​ Specification

Compatible Part Number

LINK-PP Part Number

Manufacturer

Description

RJ3T113N

LPJ0011FBNL

LINK-PP

RJ45 Connector with Integrated Magnetic

Series

Connector Type

Speed

Mounting Type

RJ45 Magjack

LINK-PP Rj45

10/100Mbps

Through-hole

Orientation

Termination

LED Color

Shielding

90° Angle (Right)

Solder

G/Y

Shielded

ELECTRICAL SPECIFICATIONS @ 25°C

Turn Ratio(±2%)

TX=1CT:1CT RX=1CT:CT

Inductance OCL

350uH MIN/@ 100KHz,0.1V,8mA DC Bias

Insertion Loss

-1.0dB MAX @ 1-65MHz

Return Loss

-20dB MIN @ 1-10MHz

-16dB MIN @ 10-30MHz

-12dB MIN @ 30-60MHz

-10dB MIN @ 60-100MHz

Cross talk

-40dB MIN @ 1-30MHz

-35dB MIN @ 30-60MHz

-30dB MIN @ 60-100MHz

Common Mode Rejection

-30dB MIN @ 1-50MHz

-20dB MIN @ 50-150MHz

Hipot Test

1500Vrms MIN

Operating Temperature Range

0℃ TO 70℃

Applications

  • Hubs
  • Routers
  • PLC's
  • Switches
  • Wireless access points
  • All Ethernet-enabled equipment
  • All industrial applications requiring Ethernet
  • All industrial equipment with RJ45 connectivity industry Computers

Benefits of RJ45 Connector with Integrated Magnetic

LINK-PP's RJ45 Magnetic Jack series is a traditional Modular Jack Connector integrated with magnetic transformer components. Integrating magnetic components into the socket helps save space and reduce PCB soldering procedures. It also enhances electromagnetic interference (EMI) shielding to Achieve a more stable Ethernet connection. Magnetic components can also improve electrical isolation, signal balance, common-mode rejection, impedance matching, and electromagnetic compatibility.
