Technical Specifications

1. General & Environmental Parameters

2. Electrical & Magnetic Characteristics (@ 25°C)

3. LED Specifications

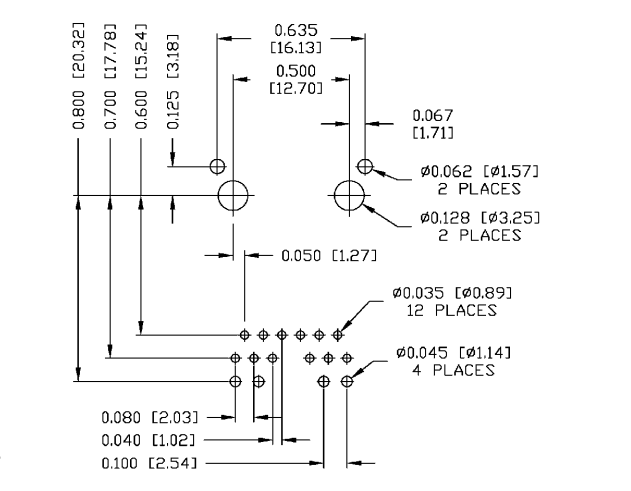

4. Mechanical & Material Specifications

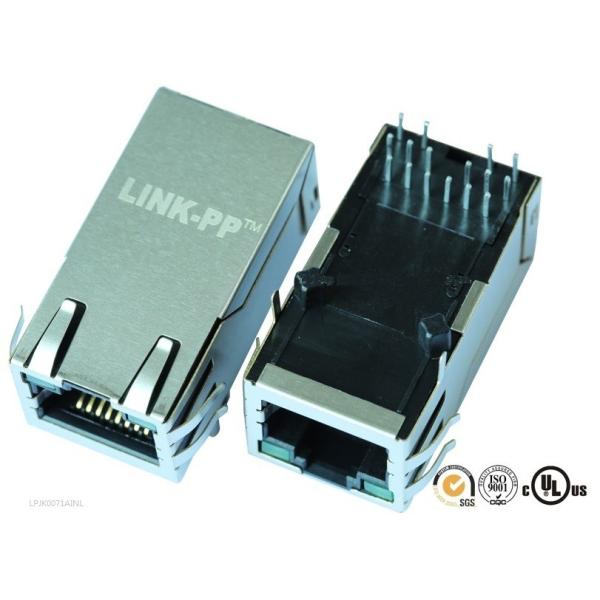

0826-1K1T-23-F RJ45 Connector Datasheet

Key Features of 0826-1K1T-23-F Gigabit MagJack

1. Superior Signal Integrity & Electrical Performance

• Gigabit Magnetics: Features an integrated 12-core magnetic design with a minimum OCL of 350µH (at 8mA DC bias), ensuring seamless data transmission for 1000 Base-T networks.
• High Isolation Protection: Provides 1500 Vrms (or 2250 VDC) HiPot isolation, protecting sensitive downstream PHY transceivers from voltage spikes and ground loops.
• Optimized EMI Mitigation: Delivers excellent Common Mode to Differential Mode Rejection (-35 dB MIN) and features a nickel-plated copper alloy shield for superior electromagnetic compatibility.

2. High-Reliability Mechanical Design

• Premium Contact Plating: Features 50 Micro-Inch Hard Gold Plating on the contacts, significantly exceeding standard industrial requirements and ensuring long-term reliability in high mating-cycle environments.
• Robust Housing: Constructed from UL 94V-0 rated Thermoplastic PA 4/6, offering excellent thermal stability during wave soldering and operation.
• Integrated Diagnostics: Built-in LEDs (Left: Bi-Color Green/Yellow, Right: Green) provide immediate visual feedback for link status and network speed, reducing external BOM count.

3. Supply Chain & Compliance Advantages

• Global Compliance: Fully RoHS compliant (Per EU Directive 2002/95/EC) and UL Recognized (File #E196366 and E169987), ensuring your end-product passes global regulatory certifications smoothly.
• Standardized Packaging: Shipped in robust tray packaging (40 pcs/tray, 400 pcs/carton), optimized for automated pick-and-place and EMS assembly lines.

Applications of 0826-1K1T-23-F Integrated Connector Module

The 0826-1K1T-23-F is widely deployed in hardware architectures requiring Gigabit speeds:

• Networking Equipment: Enterprise switches, routers, and broadband gateways.
• Industrial IoT: Industrial PCs (IPCs), PLCs, and automation control systems.
• Telecom & Datacom: Base stations, servers, and media converters.
• Consumer/Prosumer IT: Motherboards, NAS devices, and smart home hubs.

Q&As

Q: What is the network speed supported by the 0826-1K1T-23-F?

A: This MagJack module fully supports 10/100/1000 Base-T network speeds, commonly referred to as Gigabit Ethernet.

Q: Does the 0826-1K1T-23-F have internal magnetics?

A: Yes, it is an Integrated Connector Module (ICM) that includes a 12-core internal magnetic circuit with a 350µH minimum OCL (at 8mA DC Bias).

Q: What is the gold plating thickness on the contacts?

A: The contacts feature 50 micro-inch hard gold plating, providing exceptionally high durability and corrosion resistance for industrial applications.

Q: How are the LEDs configured on this RJ45 connector?

A: Looking at the front of the jack, the Left LED (Pins 15/16) is a Bi-Color Green/Yellow LED, and the Right LED (Pins 13/14) is a single-color Green LED.

Q: What is the orientation of this connector?

A: It is a horizontal, right-angle, through-hole (THT) connector with a "Tab Up" configuration (the locking tab of the Ethernet cable points upwards).

Q: Is the 0826-1K1T-23-F UL recognized and RoHS compliant?

A: Yes, it is RoHS compliant per EU Directive 2002/95/EC and is UL Recognized under File #E196366 and E169987.
