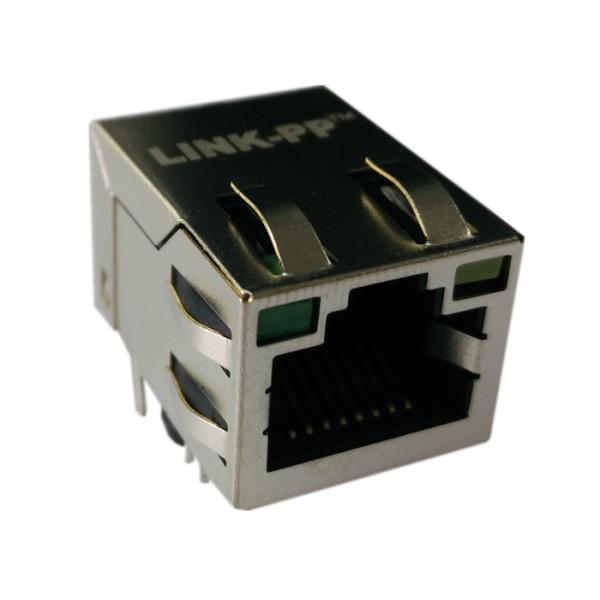

RJ45 Single Port 6-6605702-1 Modular Jack 10/100BT Shielded Right Angle
RJ45 Single Port 6-6605702-1 Modular Jack 10/100BT Shielded Right Angle
Specifications
Brand Name :
LINK-PP
Model Number :
6-6605702-1
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
250000-320000/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Designe PN# :
6-6605702-1
Made In China :
SM-LPJ16XXANL
Family :
Rj45 Connector jack
Interface :
1000BaseT Tab-up
LED :
Resistor Leds
Samples :
Available
Description

RJ45 Single Port 6-6605702-1 Modular Jack 10/100BT Shielded Right Angle

Tyco 6-6605702-1
Trader Part Number
6605839-1 Rj45
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
Negotiable
Negotiable
100,000
Negotiable
Negotiable
500,000
Negotiable
Negotiable
Made in China
SM-LPJ16XXANL
Manufacturer
LINK-PP China
Description
 Rj45 Connector jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2,000 PCS or 4 weeks

6-6605702-1 ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio:
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO +85℃
