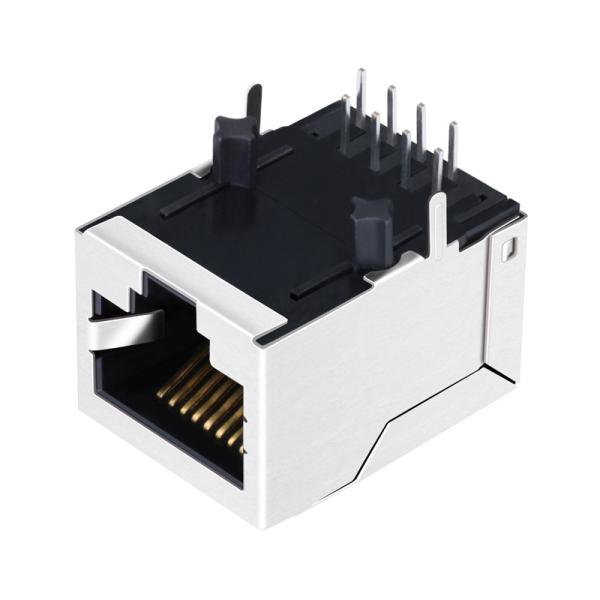

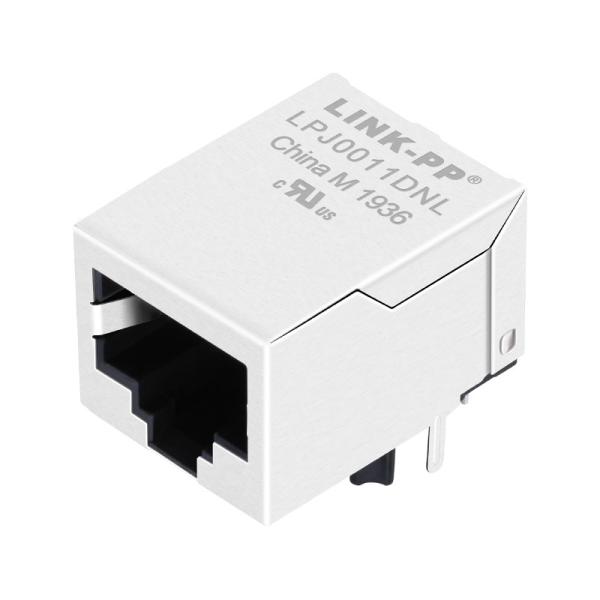

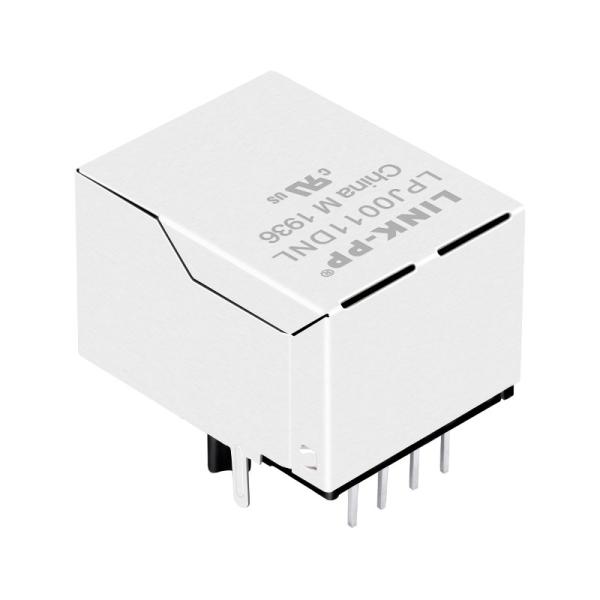

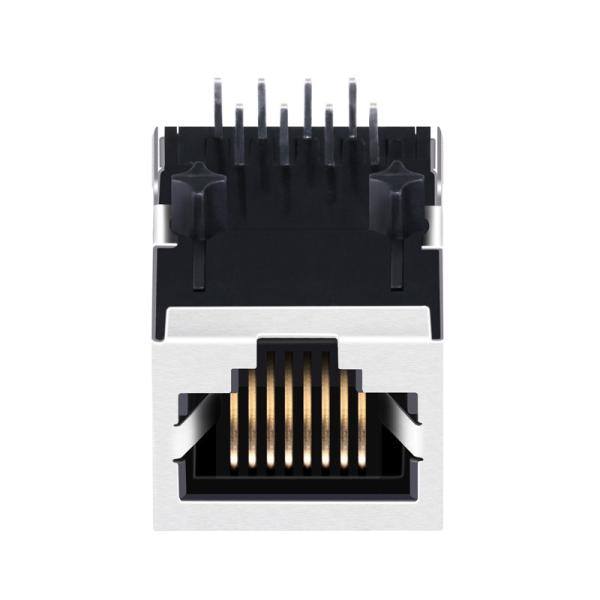

MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
Specifications
Brand Name :
LINK-PP
Model Number :
MIC24210-0104T-LF3
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
MIC24210-0104T-LF3
LINK-PP Part :
LPJ0011DNL
Standards :
IEEE802.3
Ethernet :
10/100M-bit
Documents Available :
PDF/3D/Step/IGS/Price/Cross
Samples :
Available
Description
MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield

1. LINK-PP LPJ0011DNL Magnetics jack rj45

2. Magnetic RJ45 Jack IEEE 802.3u 100BASE-T

3. 10/100M AutoMDIX Data I/O connector .

4. Dimension : 15.93x21.25x13.30mm

MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield

Turn Ratio(±2%): TX=1CT:1 RX=1CT:1CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃.

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max,5 Sec Max.

MIC24210-0104T-LF3 10/100M AutoMDIX Magnetic LPJ0011DNL RJ45 Jack 8P8C Shield
