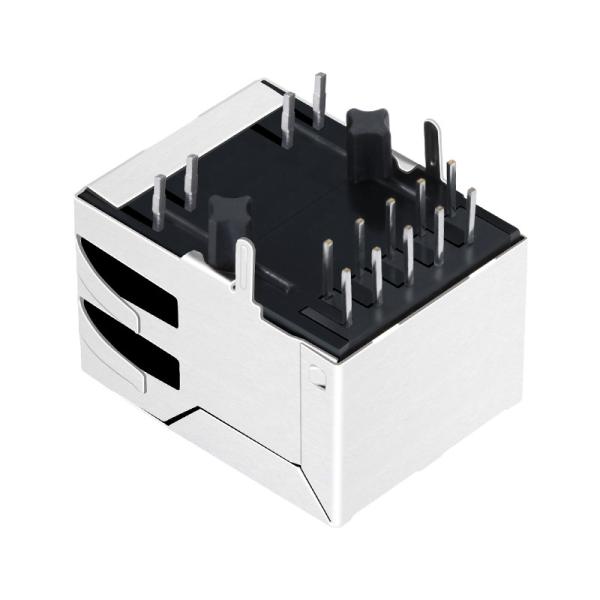

JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
Specifications
Brand Name :
LINK-PP
Model Number :
JD0-0001NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
JD0-0001NL
Part No :
LPJG0820GENL
Ethernet :
1x10/100/1000 Mbps
Indicator :
LED Optional
Mounting :
R/A Shield
Samples :
Available Free
Description

JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack

  • 1x 10/100 Mbps MagJack-Rj45 Switching Ports
  • Telecom transformers and RJ45 modules Jack
  • LPJG0820GENL LINK-PP Cross JD0-0001NL
  • IEEE 802.3 10/100BASE-T Magnetic RJ45 Jack
  • Rj45 Right Angle PCB Connector
  • LPJG0820GENL: 0℃～70℃
  • LPJG4820GENL: -40℃～85℃

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL:
350uH MIN @100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-16dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
5.Cross talk:
-30dB MIN @ 1-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-100MHz
7.Hipot Test:1500Vrms/1mA/2Sec
8.Operating Temperature Range:-40℃ TO 85℃

JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
JD0-0001NL Rj45 Equivalent LPJG0820GENL 10/100/1000 Mbps Ethernet Jack
