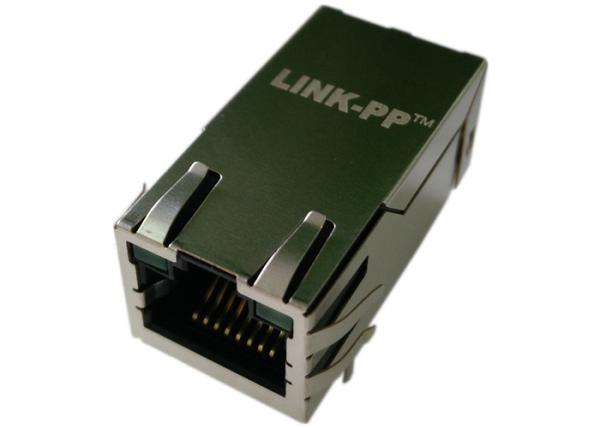

LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity
LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity
LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity
LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity
Specifications
Brand Name :
LINK-PP
Model Number :
LMJ171881XS3L3T1
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
60pcs/tray,960pcs/carton
Designe PN# :
LMJ171881XS3L3T1
Samples :
Available Free
Orientation :
90° Angle (Right)
Interface :
1000Mbps
LED :
Flexible
Made In China :
LPJK0071AWNL
Description
LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity

LMJ171881XS3L3T1 / LMJ1718811S3L3T1 / LMJ1718812S3L3T1 / LMJ1718813S3L3T1
Trader Specifications
 LMJ171881XS3L3T1
Price Break
Unit Price
Extended Price
1-5
AFREE
-
10-50
BED
-
100-500
C-124
-
1,000-2,500
Supportive
 Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
Negotiable
Negotiable
100,000
Negotiable
Negotiable
500,000
Negotiable
Negotiable
Made in China Cross
LPJK0071AWNL
Manufacturer
LINK-PP China
Description
 Rj45 Gig-E Right Angle PCB Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks

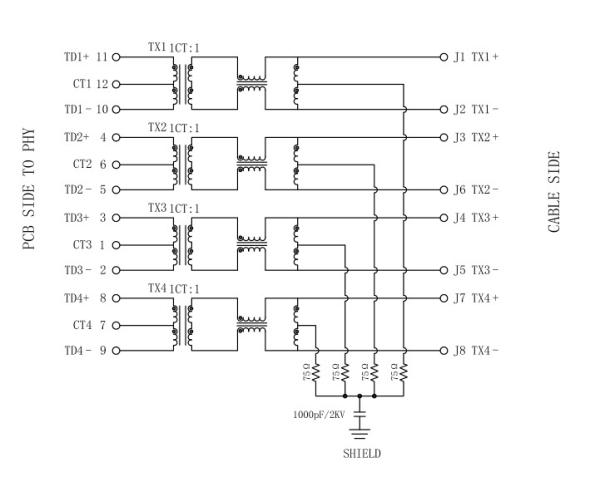

RJMG201031110NR ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
1CT:1CT
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms

LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity
