Specifications
Model NO. :
AEHJ-20
Certification :
GMA, QS, FDA, ISO, CE
Automation :
Automatic
Screw :
Multi-Screw
Treatment :
Pyrolysis
The Delivery Date :
30 Days After Receipt of Payment
Type :
Incineration Equipment
Main Equipment Size(mm) :
2550*4200*6500
Processing Capacity(T) :
5
Exhaust Temperature (ºC) :
≤2000
Waste Calorific Value (Kal/Kg) :
>=1200
Transport Package :
Wooden Box
Specification :
5t/day
Trademark :
Aoerheng
Origin :
China
HS Code :
8417809090
Production Capacity :
50000 Sets / Year
Description

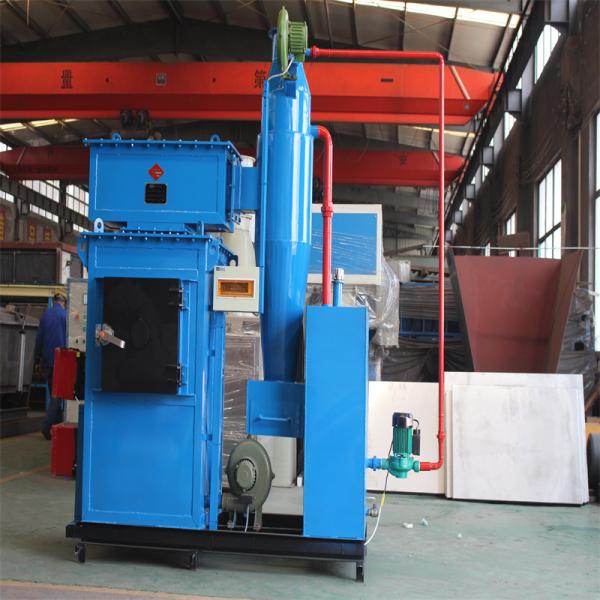

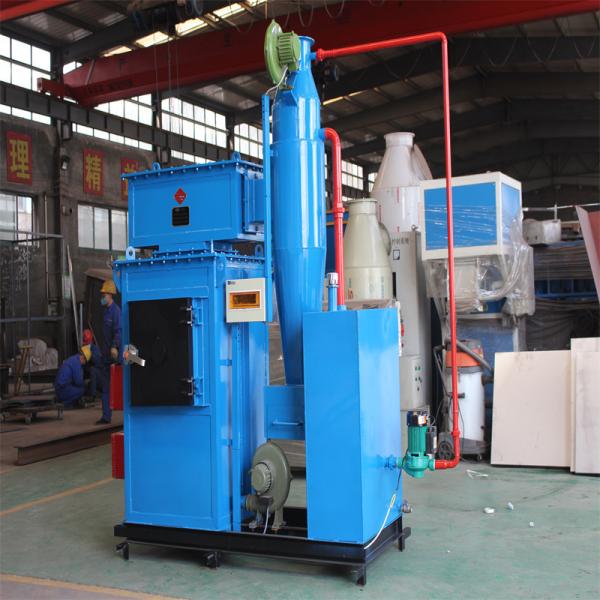

Daily processing capacity 5tons incinerator for medical waste and domestic garbage

1.product introduction :

Waste carbonization pyrolysis furnace: a kind of equipment that can reduce and harmless treat medical waste .

During the operation of the equipment,the waste of organic waste isremoved by the heat energy generated by the magnetic

core assembly,and then pyrolysis and carbonization is carried out,resulting in only a small amount of ash powder.

The core technology is to make the oxygen atoms into the furnace more active and more closely combined with the carbon

atoms through the soecial arrangement of magnetic core components,so as to speed up thecarbonization speed of waste,

improve the carbonization temperature,and realize the waste reduction treatment by using the self calorific value of waste .

Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage

2. product characteristic:

1.Nocoal,nooil and no auxiliay fuel are used in the waste treatment process,and the operation cost is low.
2.The treatment range is wide ,and the garbage can be directly feed into the furnace without sorting .
3.Small amount of flue gas,less harmful components,simple treatment process and low treatment cost.
4.The effect of waste reduction is obvious.The ash powder produced after carbonization and pyrolysis can be used as raw mateerials for cement plant,birckmaking,subgrade soil,covering soil,etc.
5.The treatment process is simple,and the waste leachate is fed into the furnace together with the waste without supporting waste leachate treatment.

3.Incinerator structure:

nuble equipment name Specification and modle quantity
1 Feeding device FS001 1seat
2 Carbonization pyrolysis furnace AEHJ-20 1seat
3 Secondary combustion chamber SC-20 1platform
4 Flue gas cooling device FC110 1platform
5 Lime spraying device QLS-350 1seat
6 Activated carbon injection device ACL-75 1platform
7 Bag filter CB-20 1platform
8 Fan AEH-Series high pressure centrifugal fan 1set
9 Slag conxeyor SC-20 1platform
10 Control cabinet and componente CC-010 1set
Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage
Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage
Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage

4.Tail gas reference standard:
The pollution control standard for hazardous waste incineration (GB18484-2001) of the State Environmental Protection Administration was implemented on January 1, 2001. The allowable concentration of pollutants discharged from flue gas is as follows:

number contaminants Maximum allowable emission concentration limit under different incinerator capacity(mg/m3)

≤300(Kg/h) 300~2500(Kg/h ≥2500(Kg/h)
1 Smoke blackness Ringerman level1
2 Smoke 100 80 65
3 Carbon monoxide 100 80 80
4 Sulfur dioxide 400 300 200
5 Hydrogen fluoride 9.0 7.0 5.0
6 Hydrogen chloride 100 70 60
7 Nitrogen oxide 0.1
8 Mercury and its compounds 500
9 Cadmium and its compounds 0.1
10 Arsenic nickel and their compounds 1.0
11 Lead and its compounds 1.0
12 Chromium,tin,antimony,copper,manganese,and their compounds 4.0
13 Dioxins 0.5TEQ ng/m3
5.Design parameters of carbonization pyrolysis furnace:
Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage
Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage
Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage


Processing capacity (t) 5
Main furnace size (mm) 2550*4200*6500
Exhaust temperature (ºC) ≤2000
Waste calorific value (kal/kg) ≥1200
Heat loss rate ≤3%

7.Our transportation:
Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic GerbageDaily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage
6.Our factory:

AEHA series harmless incinerator is a domestic and international harmless incineration treatment equipment developed by introducing Japanese

harmless incinerator technology, organizing technical public relations, sublating the advantages and disadvantages of similar equipment at home

and abroad. The equipment has the characteristics of small volume, incineration, reasonable process, technology and high degree of

harmlessness. It is an ideal waste treatment equipment for all kinds of hospitals, hotels, stations, sanitation stations, laboratories and farms.

Daily Processing Capacity 5tons Incinerator for Medical Waste and Domestic Gerbage AOERHENG company covers an area of 20000 square meters. The company adopts modern enterprise management concept. seiko manufacturing. forge ahead. the product quality is superior to the domestic and foreign counterparts products.

Company technical force is abundant. the craft is advanced. complete range of articles. in strict accordance with ISO9001 standards. organization.design. production.sales and management.

Company sets scientific research and development. engineering design. installation. debugging. production services for the integration of domestic comprehensive backbone enterprises.

Products with free-pollution disposal equipment. garbage disposal equipment. high concentration wastewater treatment equipment. organic fertilizer production equipment. air treatment equipment.

Sludge treatment equipment. automobile processing equipment such as environmental protection equipment . And can design according to customer demand.

Customization of all kinds of efficient and practical equipment and production line.

7.Our services:

pre-sale

1. Selection of equipment model.

2. Design and manufacture products according to the special requirements of customers.

3. The manufacturer shall send engineers and technicians to inspect the site free of charge.

sale

1. Product acceptance.

2. Assist the customer to formulate the construction scheme.

after-sales

1. Free guidance on equipment installation and commissioning

2. Train technical personnel for customers

3. On site training for operators
