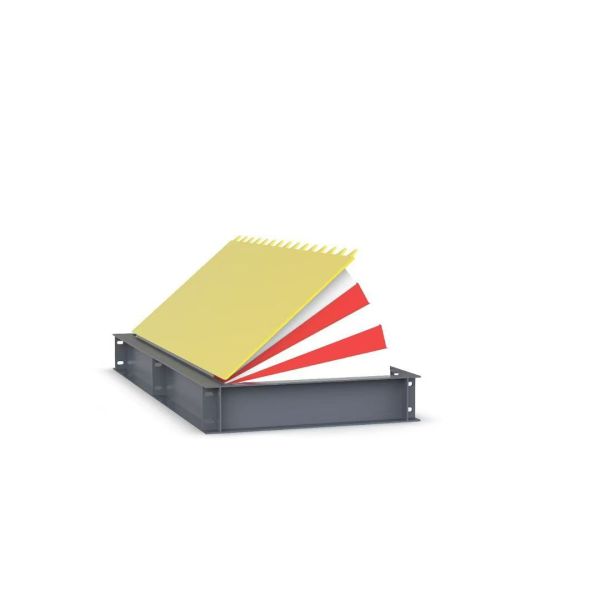

100T 3KW Vehicle Road Blocker System Heavy Duty PLC Controlled Programmable
100T 3KW Vehicle Road Blocker System Heavy Duty PLC Controlled Programmable
100T 3KW Vehicle Road Blocker System Heavy Duty PLC Controlled Programmable
100T 3KW Vehicle Road Blocker System Heavy Duty PLC Controlled Programmable
100T 3KW Vehicle Road Blocker System Heavy Duty PLC Controlled Programmable
100T 3KW Vehicle Road Blocker System Heavy Duty PLC Controlled Programmable
Specifications
Model Number :
SST5000-3QM
Place of Origin :
China
Brand Name :
Sikerui
Certification :
CE / RoHS / FCC
MOQ :
1PCS
Packaging Details :
Wooden Box
Delivery Time :
5-7days
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Dimension :
2000 * 1200 * 300mm
Thickness :
16mm
Elevated :
500mm
Embedded :
30mm
Voltage :
220V
Description

road blocker manufacturering companies,road blocking systems,road blocker hydraulic automatic


Model number: SST5000-QM
1,Dimension: 2000 * 1200 * 300mm
2,Thickness: 16mm
3,Elevated: 500mm
4,Embedded: 30mm
5,Voltage: 220V

outline dimension

(Interception width + 200 mm) × 1480 mm × 305 mm (length × width × height)

interception altitude

800MM±20 MM

Interception width

3000 MM

net weight of the machine

1.6T

pre-embedded depth

300MM

load bearing capacity

Hydrostatic load: 100T

Drive mode

hydraulic pressure

elevation time

1 to 4 seconds

surface preparation

Spray Red/White/Black/Yellow/White

levels of protection

IP68

Warning method

Optional LED red warning light strip

working voltage

AC/220V or AC 380V ± 50/60Hz

power rating

3KW

Hydraulic Station Net Weight (Including Control)

100KG

working temperature

-4 0 ℃ to +7 0 ℃ (low-temperature option with hydraulic oil heating system)

control system mode

PLC programmable logic controller

control function

Release/Block, Count, Fire Alarm Link, Emergency Ascend, Top Vehicle Prevention, Traffic Light Alert, 3G/4G, Local Control, Remote Control

interface form

Switching quantities, optional (RS485/232/422, TCP/IP, CAN, etc.)
