Shallow Mount Hydraulic Road Blocker Vehicle Access Control Barrier System
Shallow Mount Hydraulic Road Blocker Vehicle Access Control Barrier System
Specifications
Brand Name :
Sikerui
Model Number :
SST5000-4M
Certification :
CE / RoHS / FCC
Place of Origin :
China
MOQ :
1PCS
Price :
$5000-10000
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Delivery Time :
5-7days
Packaging Details :
Wooden Box
1 :
Control system: PLC controls programming commands
2 :
Control mode: wireless remote control and wire control
3 :
Minimum passing pressure: container trucks under 220 tons can pass
4 :
Rated voltage: AC380V 50Hz
5 :
System power: 3.75KW
6 :
Power unit: electro-hydraulic drive
7 :
PLC built-in encryption system: it can be encrypted
8 :
Rising time: ≤1-4S
9 :
Descending time: ≤1-4S
10 :
Working temperature: (-30℃~75℃) (low temperature device installed -50~75℃)
11 :
material: Q235
12 :
Lifting height: 500mm and 600mm are optional
13 :
Standard thickness of panel: 16mm, 20mm and 25mm are optional
14 :
Spine length: 350mm
15 :
Box size: (2000-6000)*1000*760mm
16 :
LED warning light: monochrome and multicolor are optional
17 :
Reflective film: 3M diamond grade
18 :
Linkage interface: traffic lights, infrared, ground sense, license plate recognition, etc
19 :
In case of power failure: it can be raised and lowered manually
20 :
Protection grade: IP68
21 :
Remote control range: 50-100M
22 :
Noise during device operation: ≤ 60dB.
Description

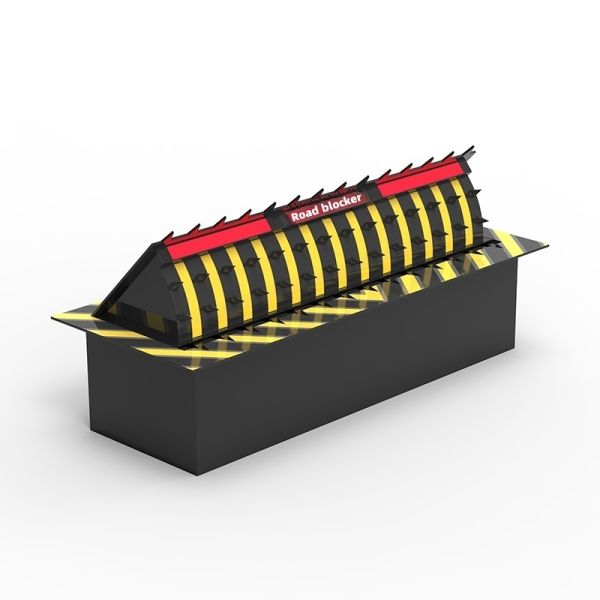

Road Blocker SST5000-4M

High-security vehicle access control for critical infrastructure.

The SST5000 Road Blocker provides a robust solution for preventing unauthorized vehicle access. Engineered for high-traffic environments and critical infrastructure protection, this road blocker ensures reliable performance and maximum security.

Key Benefits:
  • Superior Security: Prevents unauthorized vehicle entry.
  • Heavy-Duty Construction: Withstands heavy container trucks (up to 220 tons).
  • PLC Controlled: Programmable logic control for customized operation.
  • Manual Override: Can be raised and lowered manually in case of power failure.
  • Wide Temperature Range: Operates in extreme temperatures (-30℃ to 75℃, with optional low-temperature device).

Target Industries and Applications: Government facilities, military bases, airports, seaports, industrial complexes, toll booths, parking facilities, and any location requiring high-security vehicle access control.

Product Attributes
FOB Price: 0
FOB Unit: set
Technical Specifications
Parameter Description
Control System PLC controls programming commands
Control Mode Wireless remote control and wire control
Minimum Passing Pressure Container trucks under 220 tons can pass
Rated Voltage AC380V 50Hz
System Power 3.75KW
Power Unit Electro-hydraulic drive
PLC Built-in Encryption System It can be encrypted
Rising Time ≤1-4S
Descending Time ≤1-4S
Working Temperature (-30℃~75℃) (low temperature device installed -50~75℃)
Material Q235
Lifting Height 500mm and 600mm are optional
Standard Thickness of Panel 16mm, 20mm and 25mm are optional
Spine Length 350mm
Box Size (2000-6000)*1000*760mm
LED Warning Light Monochrome and multicolor are optional
Reflective Film 3M diamond grade
Linkage Interface Traffic lights, infrared, ground sense, license plate recognition, etc
In case of power failure It can be raised and lowered manually
Protection Grade IP68
Remote Control Range 50-100M
Noise during device operation ≤ 60dB.
