General Description

ACA816T / ACA826T is a full-temperature compensated high-precision single / dual-axis MODBUS output inclinometer professionally developed by Rion Technology for high-precision level measurement and leveling. The high-resolution 0.0005 ° can completely replace the traditional high-precision level. . Digital signal transmission, supporting professional computer software, accurate data measurement and recording, output interface RS232, RS485, RS422, TTL optional. The characteristics of non-contact installation make the ACA816T / ACA826T have super strong system integration, easy installation, just fix the sensor on the surface of the measured object with screws, the horizontal angle of the object can be automatically calculated, simple to use. It has strong resistance to external electromagnetic interference and strong ability to withstand shock and vibration. It has a great competitive advantage among domestic counterparts.

Feature

●Dual-Axis Inclinometer

●Measuring Range :±1~±3° optional

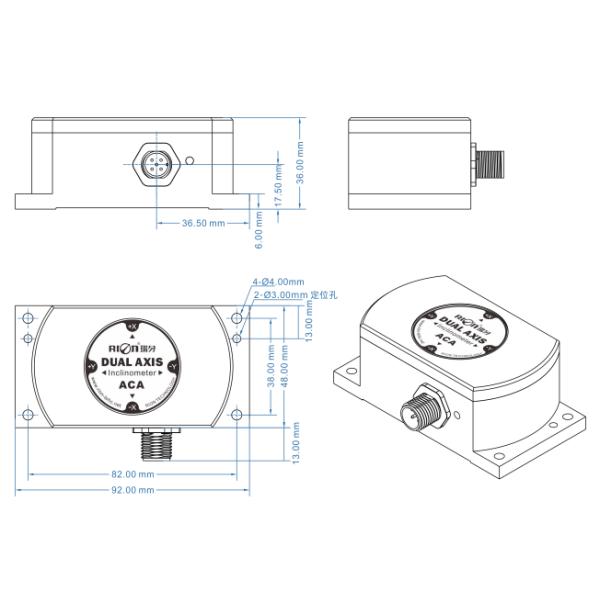

●Size:L92×W48×H36mm

●Wide voltage input: 9~36V
●Wide temperature working: -40~+85℃

●IP67 protection class
●Resolution: 0.0005°

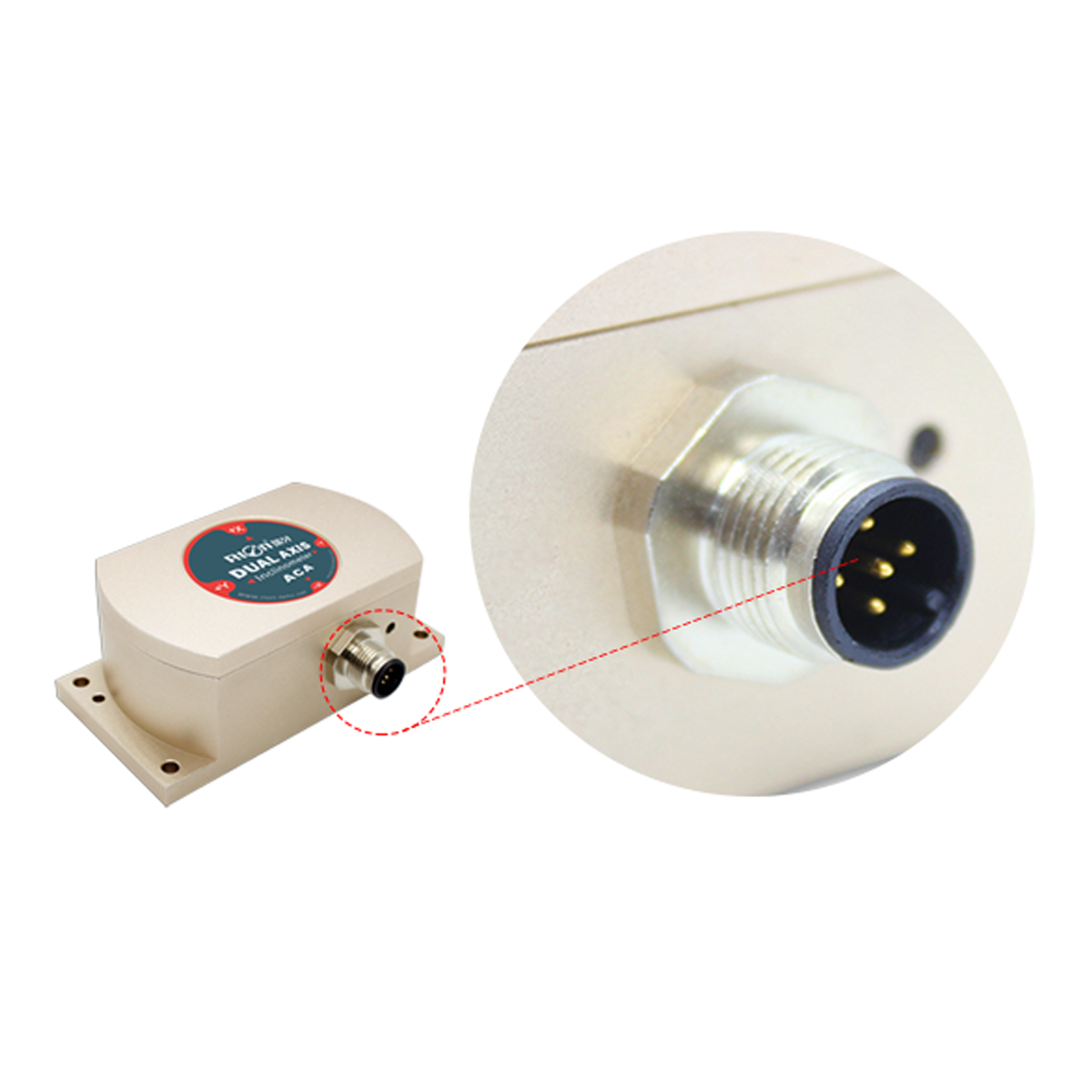

●Water-proof air-plug
●Highly anti-vibration performance >2000g
●Output mode RS232,RS485,RS422,TTL,CAN 2.0 are optional

Application

●Engineering vehicles automatic leveling

●Bridge & dam detection
●Laser equipment position

●Medical facilities angle control
●Underground drill posture navigation

● Railway gauging rule , gauge equipment leveling

●Precise machine tool level control

●Geological equipment inclined monitoring
●Directional satellite communications antenna pitching angle measurement

Q1. What is your delivery terms?
A: EXW, FOB, CNF, DAP

Q2. What is your terms of payment?
A: T/T 100% , Paypal,

Q3. How about your delivery time?
A: Generally, it will take 7 days for production against the payment confirmation

Q4. Can you produce according to customers requirements?
A: Yes, we could provide customized solution.

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?
A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
