IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers
IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers
IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers
IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers
IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers
IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers
Specifications
Model Number :
MCA416-232
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
CARTON
Supply Ability :
1000 pcs per Month
Price :
$35/Pieces
Certification :
CE
MOQ :
1
Payment Terms :
T/T,Paypal
Delivery Time :
7 days for samples
Type :
level sensor
Product name :
Inclinometer
Measuring axis :
X/Y
power supply :
DC 9~36V
measuring range :
within 360 deg
Best accuracy :
<0.2°
Angle resolution :
0.1°
Working Temperature :
-40°~ +85℃
size :
L61*W35*H21mm
Response time :
0.05 s
Certificate :
CE ISO
Port :
SHENZHEN
Description
MCA416 Anti Shock Analog Inclinometer Sensor PV Controller For Solar Tracker
General Description
MC A 416/426T series inclination sensors are newly developed, low-cost full-attitude tilt angle measurement products. They are built on the latest anti-interference platform design and integrate new MEMS sensing units. With wide temperature operating performance, excellent vibration resistance, and long-term operational stability, the sensors offer a reliable service life of up to 10 years.
Features
  • Single/dual axis measurement
  • Measuring range ±45°
  • Accuracy: ±0.5°
  • DC 9~36V input
  • Working temperature: -40~+85℃
  • Resolution: 0.1°
  • IP66 protection
  • Anti-shock >2000g
  • Direct lead interface
  • Compact size: L61×W35×H21mm
  • Output type: MODBUS
Specification Parameters
Parameter Condition Value Unit
Resolution
0.1 °
Accuracy @25℃ ±0.2 °
Response Time
0.05 S
Zero temp. coefficient -40～85°℃ ±0.5 °
Output Interface RS485/RS232/TTL
Output Load >500ohm
Working Time 98000 hours/time(no fault)
Insulation resistance ≥100 megohm
Anti-vibration 10grms,10～1000Hz
Impact Resistance 100g@11ms,3 Axial Direction (Half Sinusoid)
Weight <200g (Including 1 meter standard cable)
Waterproof grade IP67
Certificate CE; APPEARANCE PATENT
Quality System IATF16949:2016 GJB9001C-2017 standard
Dimensions
IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers

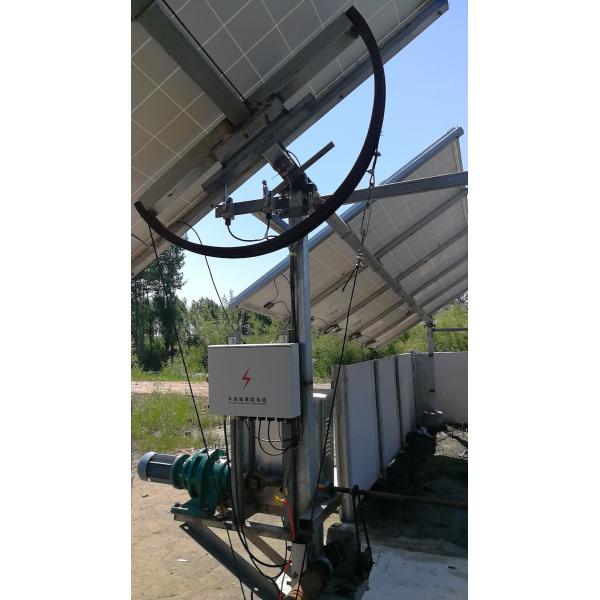

Customer Photos
IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers IP66 Analog Inclinometer with Wide Temperature Range and Fast Response Time for Solar Trackers
Frequently Asked Questions
Q1. What is your delivery terms?
A: EXW, FOB, CNF, DAP
Q2. What is your terms of payment?
A: T/T 100%, Paypal,
Q3. How about your delivery time?
A: Generally, it will take 7 days for production against the payment confirmation
Q4. Can you produce according to customers requirements?
A: Yes, we could provide customized solution.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: Is refund acceptable if user test do not reach the technical parameter in the data sheet?
A: We accept return and refund, or return and replace if the product quality do not meet the data sheet value.
