Description

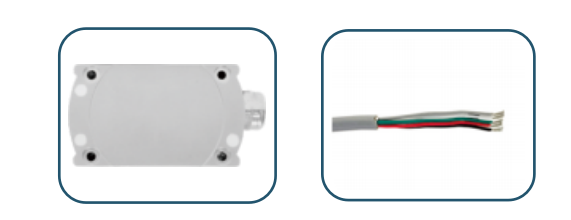

The MCA416/426 series tilt sensor is a cost-effective, full-attitude tilt measurement device. It features the latest anti-interference platform design, integrates advanced micro-mechanical sensing units, and offers wide temperature adaptability, excellent anti-vibration performance, and long-term stability, with an effective lifespan of up to 10 years.

Utilizing a non-contact measurement principle, the sensor calculates real-time tilt angles by detecting gravitational components through an internal capacitive micro-mechanical unit. Installation is simple and flexible, requiring only fixation to the target object—no fixed or rotating shaft needed. With multiple mounting options, it meets diverse measurement requirements, making it an ideal accessory for engineering machinery, agricultural equipment, and other industrial applications.

Feature

• Resolution:0.1°
• Six installation methodse
• Zero set function
• IP67
• Output: 0~5V
• Power supply: 9~36V
• Work temperature:-40~+85°C
• High anti-0shock>3500g

Q1. What is your delivery terms?
A: EXW, FOB, CNF, DAP

Q2. What is your terms of payment?
A: T/T 100% , Paypal,

Q3. How about your delivery time?
A: Generally, it will take 7 days for production against the payment confirmation

Q4. Can you produce according to customers requirements?
A: Yes, we could provide customized solution.

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?
A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
