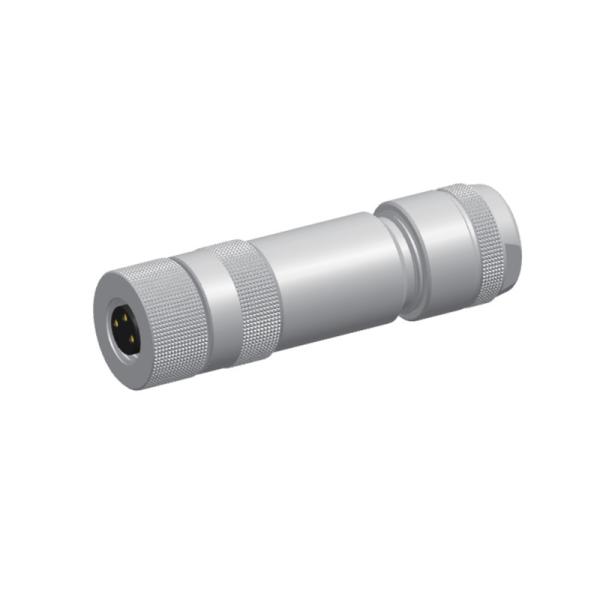

M8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3P
M8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3P
M8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3P
M8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3P
M8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3P
M8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3P
Specifications
Brand Name :
RIGOAL
Model Number :
M8 waterproof connector
Certification :
CE,Rohs
Place of Origin :
Shen zhen, China
MOQ :
100
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000
Delivery Time :
14
Packaging Details :
1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
pins :
4p, 3P
Pin :
3 pin , 3pin , 3p
Contact material :
Brass Gold Plated / Silver
Product name :
M8 3 pin female waterproof ip67 plastic field assembly
Type :
IEC, IEC
Connector type :
Circular Connectors
Description

M8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector Ip67 M8 Straight Hole Metal Plug 3P

M8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3PM8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3PM8 Female 3 Pin 3pin 3p Attachable Assembly Round Circular Connector ip67 M8 Straight Hole Metal Plug 3P

HOUSING MATERIAL/COLOR NYLON/BLACK
CONTACTMATERIAL/PLATING BRASS/SILVER
COUPLING NUT MATERIAL/PLATING ZINC/NICKEL
O-RING MATERIAL NBR
OPERATING CURRENT 4A
OPERATING VOLTAGE 60 V
OPERATING TEMPERATURE -25℃~+85℃
PROTECTION CLASS IEC IP67, INMATEDCONDITION
CONNECTION METHOD SCREW CONNECTION
CABLE DIAMETER 3.5~5MM
CONDUCTOR CROSS SECTION 20~26AWG
