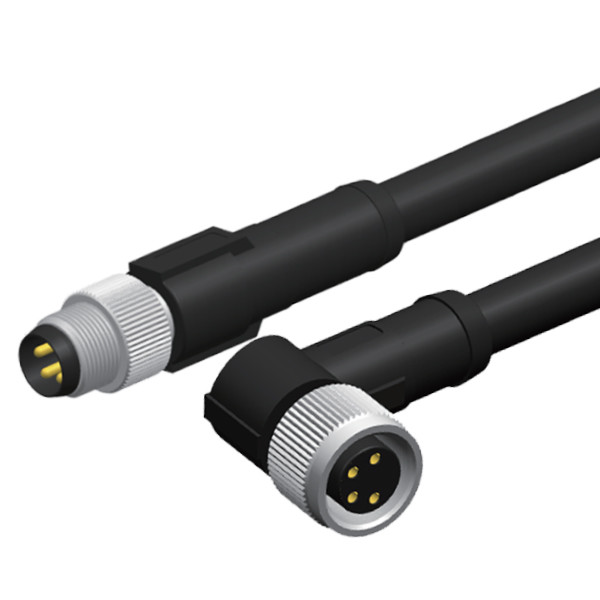

IP67 M8 Waterproof Connector
IP67 M8 Waterproof Connector
IP67 M8 Waterproof Connector
IP67 M8 Waterproof Connector
IP67 M8 Waterproof Connector
IP67 M8 Waterproof Connector
IP67 M8 Waterproof Connector
IP67 M8 Waterproof Connector
Specifications
Brand Name :
RIGOAL
Model Number :
MA08F**HD**RAXXXXXX
Certification :
CE,Rohs
Place of Origin :
Shen zhen,China
MOQ :
100
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000
Delivery Time :
14
Packaging Details :
m8 3pin male ip67 waterproof panel mount pcb connector 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Ambient Temperat :
-20/- 40℃~+80℃
Connector Contacts :
Brass with Gold Plated
Connector Insert :
TPU/PA
Contact Resistance :
≤5mΩ
Shielding :
Unavailable
Standard :
IEC 61076-2-104
Certificate :
UL/CE/ROHS/IP67/REACH/IP68
Coupling Nut/Screw :
Zinc Alloy with Nickel Plated
colour :
black
Gender :
Female
Mounting Type :
Right Angled
Description

Waterproof IP67 Male Female Straight 90 Degree 6Pin M8 Circular Connector With Shield Wire

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Finecables(FC)
Model Number:
MA08F**HD**RAXXXXXX
Type:
M8 Molded Cable Connectors
Application:
Sensor Industrial Automation
Gender:
Female
Connector Series:
M8 Waterproof Connector
Ambient Temperature:
-20/- 40℃~+80℃
Connector Insert:
TPU/PA
Connector Contacts:
Brass with Gold Plated
Connector Overmold:
TPU
Coupling Nut/Screw:
Zinc Alloy with Nickel Plated
Contact Resistance:
≤5mΩ
Insulation Resistance:
≥ 100M Ω
Mating Endurance:
> 500 cycle
Certificate:
ULs/IP67/REACH/IP68/CE/ROHS

IP67 M8 Waterproof ConnectorIP67 M8 Waterproof ConnectorIP67 M8 Waterproof ConnectorIP67 M8 Waterproof Connector

Parameter
Value
Plug body
TPU/Black
Coupling nut
Brass/Nickel
Contact carrier
PA/Black
Pin
Brass/Gold
O-ring
FPM/FKM
IP degree
IP67
Insulation
≥10 9Ω
Forward resistance
≤5mΩ
Rated current
6P 2A
Rated voltage
30V
Pollution degree
3
Temperature range
-40…80 ℃
Mechanical operation
≥100
Maximum cable diameter
5.6mm

Packaging & Delivery
Packaging Details
-- Standard Packing:
Transparent PE Bag.
Carton Size:44.5*36.5*23.5(cm),17.5*14.4*9.3 Inch

-- OEM Package Available.
Port
HongKong,ShenZhen,SheKou,ShangHai,YanTian,etc
