Specifications
Brand Name :
Topland
Model Number :
Swivel Joint
Certification :
API 16A
Place of Origin :
China
MOQ :
1
Price :
80-200 USD Per SET
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1500 Set/Month
Delivery Time :
10 Work days
Packaging Details :
Wooden BOX
Product Name :
Chicksan Swivel Joint
Material :
Tungsten Carbide & Steel
Quality :
High Level
Weight :
18 kg
Machine Type :
Drilling Tool
Condition :
New
Warranty :
12 months
Packing :
Wooden Case
Description

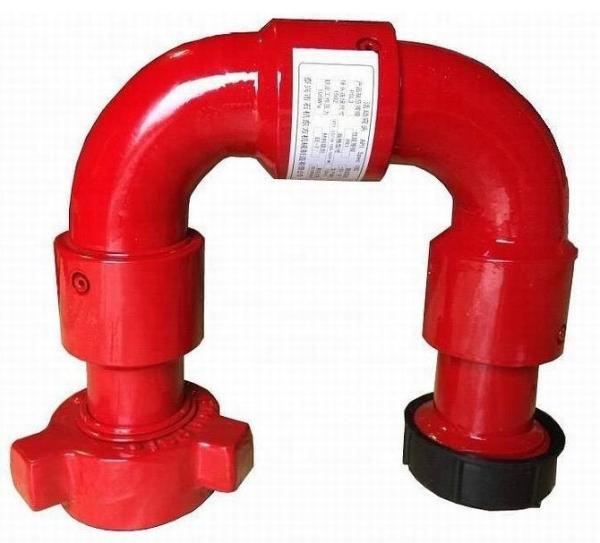

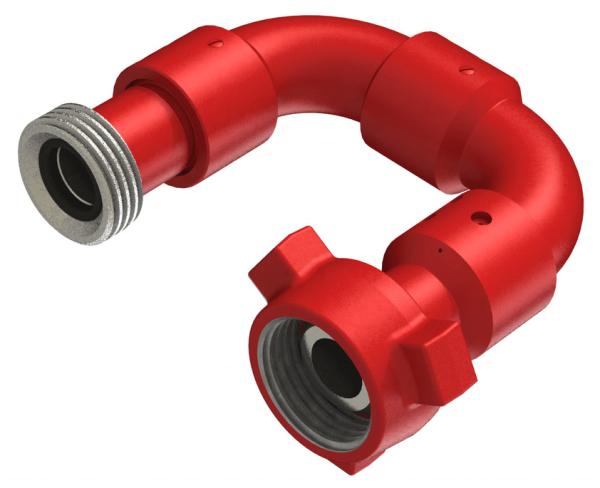

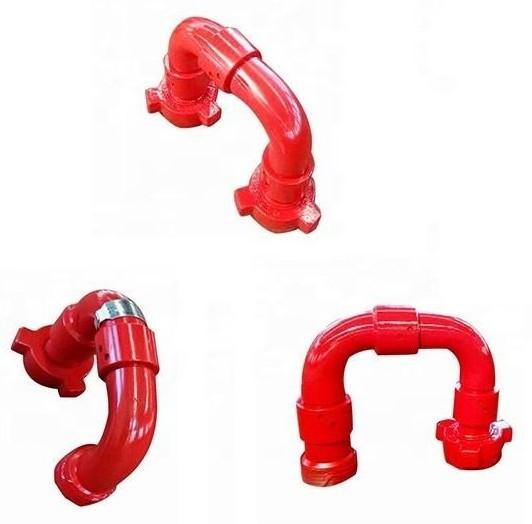

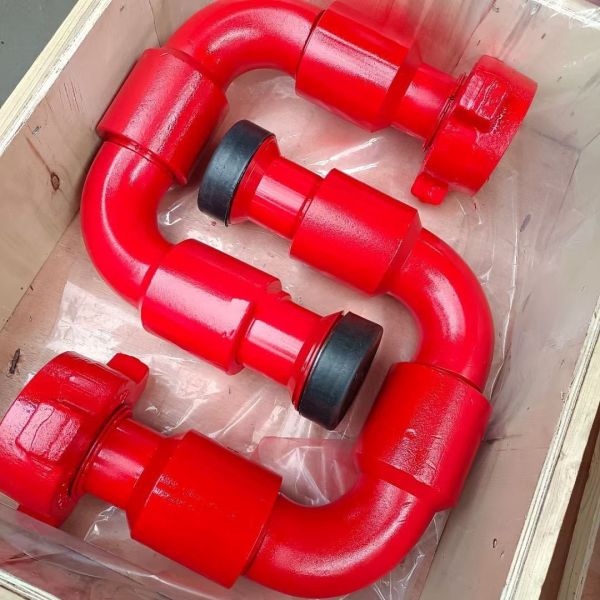

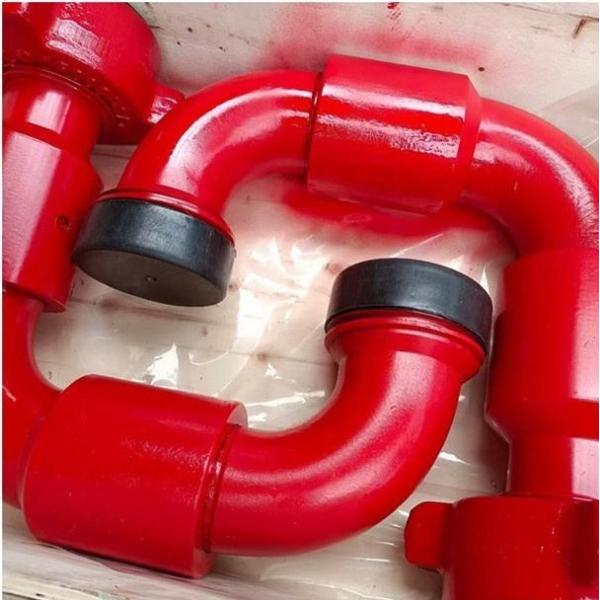

Hydraulic Swivel Rotary Center Joint Oilfield Wellhead Tools Chiksan Short Radius Swivel Joint

Chiksan Swivel Joint description of Oilfield Wellhead Equipment Tools:

Chicksan Swivel Joint is a kind of metal pipe joint which equipped with ball bearing, the specification is 1"~4", the rated working pressure is 14~140Mpa(200psi-20000psi), we can supply normal temperature, low temperature and Sulfur-bearing gas condition used Chicksan Swivel Joint and repair kit.

Description Specification Model End Connection
Short radius swivel joints 1''x3500psi(25Mpa) Style 10,50 LP Female Thread
1"-1/2x6000psi(42Mpa) Style 10,50 LP Female Thread
1"-1/2x10000psi(70Mpa) Style 10,50 LP Female Thread
2"x6000psi(42Mpa) Style 10,50 NPT Female Thread
2"x10000psi(70Mpa) Style 10,50
1-1/2"Long radius swivel joints 1"-1/2x10000psi(70Mpa) Style 10 LP Female
1"-1/2x10000psi(70Mpa) Style 50 LP Female
2"Long radius swivel joints 2"x10000psi(70Mpa) Style 10,20,50 LP or TBG Female
2"x10000psi(70Mpa) Style 10,50 MxF(Tr100x12.7)
2"x10000psi(70Mpa) Style 10,50 MxF(Tr100x12)
2"x10000psi(70Mpa) Style 10,50,80,100 MxF,MxM,FxF
2"x10000psi(70Mpa) Style 20,30,60 MxF(Tr/America) MxM
2"x15000psi(105Mpa) Style 10,50,80,100 MxF,MxM,FxF
2"x15000psi(105Mpa) Style 20,30,60 MxF(Tr/America)MxM
2"x20000psi(140Mpa) Style 10,50 MxF,MxM
3"Long radius swivel joints 3"x10000psi(70Mpa) Style 20,50 Lp or TBG Female
3"x10000psi(70Mpa) Style 10,50,80,100 MxF,MxM,FxF
3"x10000psi(70Mpa) Style 20,30,60 MxF(Tr,America) MxM
3"x15000psi(105Mpa) Style 10,50,80,100 MxF,MxM,FxF
3"x15000psi(105Mpa) Style 20,30,60 MxF,MxM
3"x20000psi(140Mpa) Style 10,50 MxF,MxM
4"Long radius swivel joints 4"x6000psi(42Mpa) Style 10,50 MxF,MxM,FxF
4"10000psi(70Mpa) Style 10,50 MxF,MxM,FxF

Chiksan Short Radius Hydraulic Swivel Rotary Center Joint Oilfield Wellhead ToolsChiksan Short Radius Hydraulic Swivel Rotary Center Joint Oilfield Wellhead Tools

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.


2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
