Specifications
Brand Name :
Topland
Model Number :
1“
Certification :
API 16C
Place of Origin :
China
MOQ :
1
Price :
50-80 USD Per SET
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Set/Month
Delivery Time :
10 Work days
Packaging Details :
Wooden BOX
Product Name :
Sucker Rod Clamp Polished Rod Clamps 1"
Type :
Single Bolt /Double Bolts / Three bolts
Working Load :
100KN/118KN
Weight :
5.5KG
Machine Type :
Wellhead Equipment Tool
Usage :
Sucker Rod
Process :
Forging
Application :
Oilfields
Condition :
New
Color :
Red
Description

Oilfield Wellhead Equipment Sucker Rod Clamp Polished Rod Clamps

Description of Polished Rod Clamp

Polished rod clamp, a kind of device attached to the polished rod, works together with the pumping unit carrier bar to secure a polished rod to the surface pumping unit.

Classification for of Polished Rod Clamp

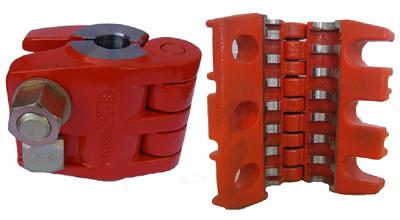

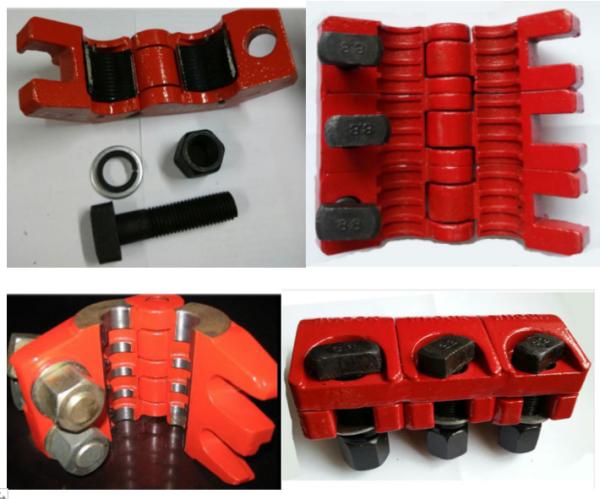

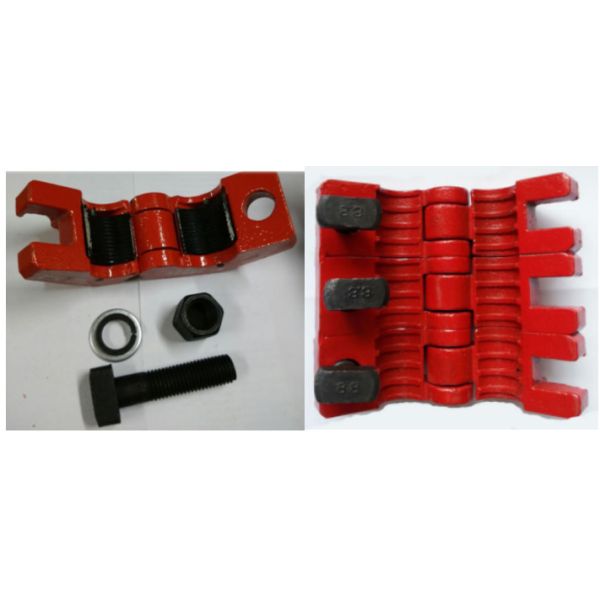

Polished rod clamps can be classified as single bolt polished rod clamp, double bolts polished rod clamp and three bolts polished rod clamp according to the number of bolts.

Polished Rod Clamps 1'' Oilfield Wellhead Equipment Sucker Rod Clamp

Main Technical Parameters of Oilfield Wellhead Equipment Sucker Rod Clamp

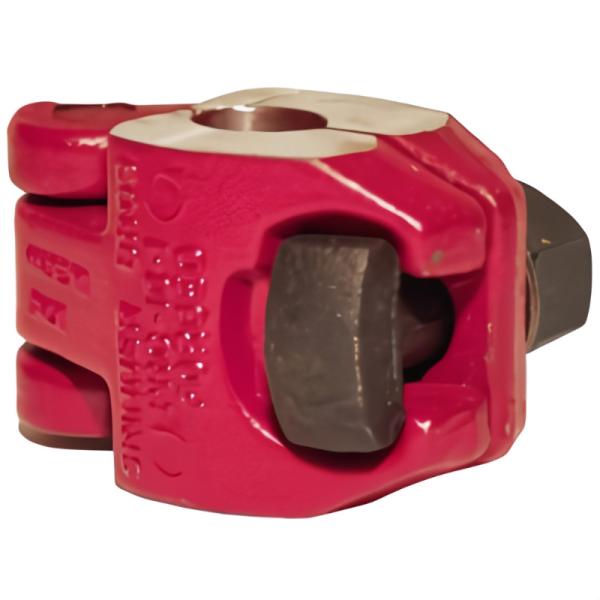

Single bolt

polish rod clamp

 Polished Rod Diameter Working load Tightening Torque Weight
22mm 78.5KN 3200N.m 5.6Kg
25mm 100KN 5.5Kg
25.4mm (1in) 100KN 5.5Kg
28.6mm (1 1/8in) 118KN 5.5Kg

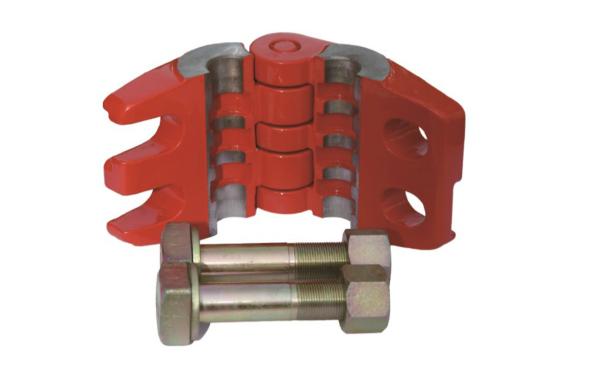

Double bolts polish

rod clamp

 Polished Rod Diameter Working load Tightening Torque Weight
25.4mm (1 in) 118KN 1545N.m 7.3 Kg
28mm 157KN 7.2 Kg
28.6mm (1 1/8in) 157KN 7.2 Kg
31.8mm (1 1/4in) 157KN 7.1 Kg
32mm 157KN 7.1 Kg
38.1mm (1 1/2in) 178KN 9 Kg

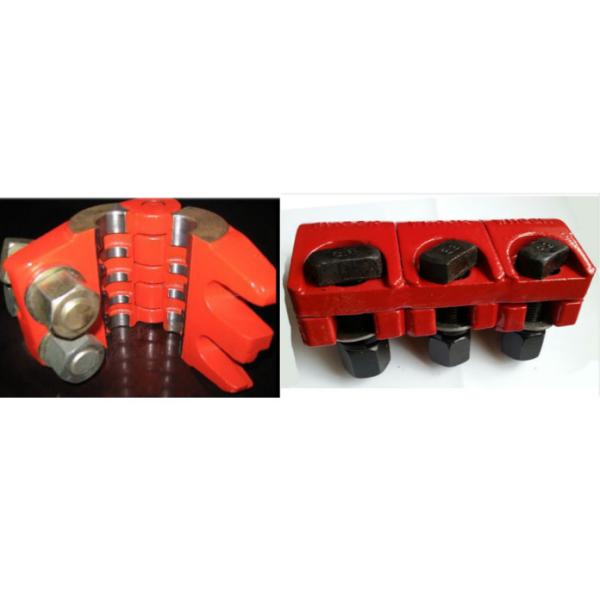

Three bolts

polish rod clamp

 Polished Rod Diameter Working load Tightening Torque Weight
31.8mm (1 1/4in) 178 KN 1977N.m 10.35Kg
32mm 178 KN 10.35Kg
38.1mm (1 1/2in) 178 KN 10.2K
