Fluke Multi Product Calibrator 5522A ±1020 V / 20.5 A 11 Ppm Best DCV Accuracy Multifunction Calibrator
Fluke Multi Product Calibrator 5522A ±1020 V / 20.5 A 11 Ppm Best DCV Accuracy Multifunction Calibrator
Specifications
Brand Name :
Fluke
Model Number :
5522A
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Delivery Time :
3-5 days
New / Used :
Used
Functions & Ranges :
DCV 0 to ±1020 V; ACV 1 mV to 1020 V, 10 Hz–500 kHz (extended-band sine to 2 MHz, typical); DCI 0 to 20.5 A; ACI 29 µA to 20.5 A, 10 Hz–30 kHz; Resistance 0 Ω–1.1 GΩ; Capacitance 220 pF–110 mF; dual outputs, phase control, 2nd–50th harmonics.
DC Voltage Accuracy (1-year, 20–30 °C) :
as low as ±(11 ppm of output + 2 µV) on 0–3.3 V range; noise 10 Hz–10 kHz rms down to 60 µV on 3.3 V range.
AC Voltage Accuracy :
example 100 V, 45 Hz–1 kHz: ±(190 ppm of output + 2 mV) 1-year; extended-bandwidth sine 0.01–9.99 Hz / 500 kHz–2 MHz with stated flatness
Current Accuracy :
DCI 1 A 1-year ±(200 ppm of output + 40 µA); ACI 1 A, 45 Hz–1 kHz 1-year ±(0.06% of output + 100 µA). For >11 A, allowable minutes per hour ≈ 60 − T(°C) − I(A).
Interfaces / Options / Size :
GPIB, RS-232, 10 MHz reference in/out; oscilloscope options to 600 MHz or 1.1 GHz; compatible with 52120A amplifier for up to 120 A; 17.8 × 43.2 × 47.3 cm, 22 kg, 600 VA.
Description

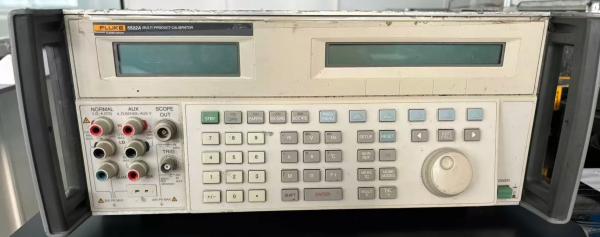

Fluke 5522A — ±1020 V / 20.5 A Multi-Product Calibrator, 11 ppm Best DCV Accuracy Multi Function Calibrator

The Fluke 5522A covers a broad workload for mobile or bench calibration, sourcing precision DC/AC volts to 1020 V, current to 20.5 A, resistance to 1.1 GΩ, and capacitance to 110 mF. Best DCV performance reaches 11 ppm (1-year), while ACV provides 0.019%-class uncertainty at 100 V, 45 Hz–1 kHz, with extended-band sine capability to 2 MHz for special tests. Dual outputs support power, phase (0.01° resolution) and harmonics, and robust reverse-power protection improves survivability. Standard GPIB/RS-232 and a 10 MHz reference ease automation and system tie-in; oscilloscope options extend coverage to 600 MHz/1.1 GHz, and the 52120A amplifier enables high-current clamp workloads. Calibration documentation is available on request.

Fluke Multi Product Calibrator 5522A ±1020 V / 20.5 A 11 Ppm Best DCV Accuracy Multifunction Calibrator

Contact Us for a Fast Quote

Interested in Fluke 5522A or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:

    • Send a tailored quotation and any current promotions.

    • Provide extra photos, test data, and full configuration details.

    • Discuss shipping, duties, warranty, and any other specifics you need.

Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

Frequently Asked Questions (FAQ)

1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit’s serial number and included in the shipment.

2/ Integrity of Internal Components

  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules.

  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time.

    All recordings remain in our cloud archive for the life of the product.

3/ Warranty & Technical Support

  • One-year transferable warranty.
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance.

4/ International Shipping Protection

  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam.
  • Shock- and tilt-indicator labels on every crate.
  • Preferred carrier: DHL, delivery in 3–5 days to major destinations.

5/ Payment Terms

We accept T/T, wire transfer, credit card.

6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
