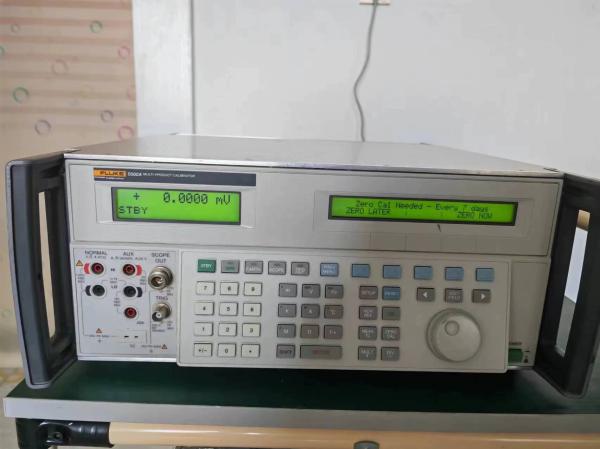

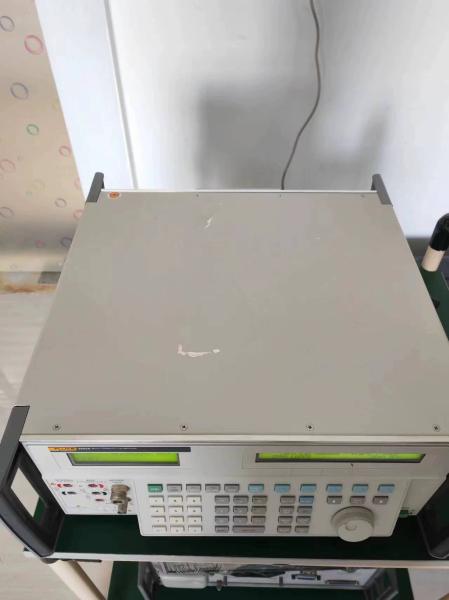

Used ±1020 V / 20.5 A Multi Product Calibrator 50 Ppm DC Accuracy Fluke 5502A
Used ±1020 V / 20.5 A Multi Product Calibrator 50 Ppm DC Accuracy Fluke 5502A
Used ±1020 V / 20.5 A Multi Product Calibrator 50 Ppm DC Accuracy Fluke 5502A
Used ±1020 V / 20.5 A Multi Product Calibrator 50 Ppm DC Accuracy Fluke 5502A
Used ±1020 V / 20.5 A Multi Product Calibrator 50 Ppm DC Accuracy Fluke 5502A
Used ±1020 V / 20.5 A Multi Product Calibrator 50 Ppm DC Accuracy Fluke 5502A
Specifications
Brand Name :
Fluke
Model Number :
5502A
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Delivery Time :
3-5 days
New / Used :
Used
Functions & Ranges :
DCV 0 to ±1020 V; ACV 1 mV to 1020 V, 10 Hz–500 kHz; DCI 0 to 20.5 A; ACI 29 µA to 20.5 A (10 Hz–30 kHz); Resistance 0 to 1100 MΩ; Capacitance 220 pF to 110 mF; TC (B, C, E, J, K, L, N, R, S, T, U) and RTD simulation/measure; dual-output voltage/current an
DC Voltage Accuracy :
Best 1-year ±0.005% + 5 µV (0–3.3 V); up to ±0.0055% + 1.5 mV at 1020 V. Noise (10 Hz–10 kHz): ≤20 mV at 1020 V.
AC Voltage Accuracy :
45 Hz–1 kHz as low as ±0.050% + 3 mV (e.g., 100 V); overall range 10 Hz–500 kHz, with extended-bandwidth waveforms to 2 MHz (sine).
AC Current Accuracy :
45 Hz–1 kHz as low as ±0.06% + 100 µA (1.1–3 A); up to 20.5 A with specified compliance and inductive limits.
Interfaces / Options / Size :

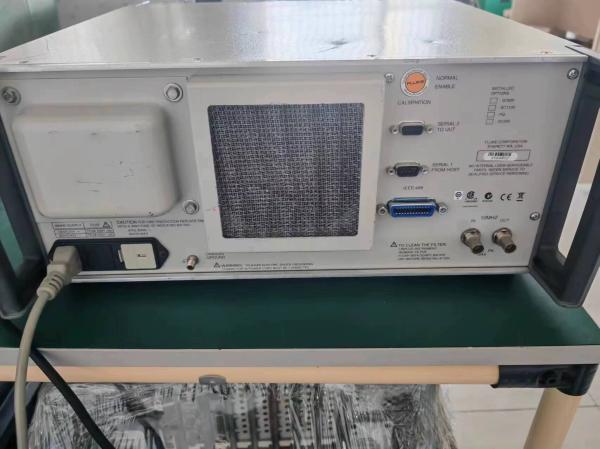

IEEE-488 (GPIB) and RS-232 (two serial ports); 10 MHz reference IN/OUT; oscilloscope options to 300 MHz / 600 MHz; supports 52120A transconductance amplifier (to 120 A, and with coils up to 6000 A); MET/CAL automation; 17.8 × 43.2 × 47.3 cm, 22 kg, 600 VA
Description

Fluke 5502A — ±1020 V / 20.5 A Multi-Product Calibrator, 50 ppm DC Accuracy Multi Function Calibrator

Fluke 5502A replaces the 5500A with wider ranges and robust protection for mobile or bench calibration. It sources precision DC/AC volts to 1020 V, current to 20.5 A, resistance to 1100 MΩ, and capacitance to 110 mF, with dual-output power, phase control, harmonics, and TC/RTD simulation. One-year DCV performance reaches 50 ppm; ACV/ACI deliver 0.05%-class uncertainties in the audio band. Standard GPIB/RS-232 and 10 MHz reference ease system integration; options enable oscilloscope calibration to 300/600 MHz. Pairing with the 52120A extends current output for clamp and high-current workloads. Units are commonly supplied used with fresh calibration on request.

Used ±1020 V / 20.5 A Multi Product Calibrator 50 Ppm DC Accuracy Fluke 5502A

Contact TESTRO for a Fast Quote

Interested in Fluke 5502A or a similar model?

  • Drop your WhatsApp number or e-mail on our website and we will:

    • Send a tailored quotation and any current promotions.

    • Provide extra photos, test data, and full configuration details.

    • Discuss shipping, duties, warranty, and any other specifics you need.

Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.

Used ±1020 V / 20.5 A Multi Product Calibrator 50 Ppm DC Accuracy Fluke 5502A

TESTRO Advantages

  1. Laboratory-Verified Performance – Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.

  2. Full Internal Transparency – High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product’s lifetime.

  3. Warranty & Technical Support – One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.

  4. Secure, Rapid Shipping – Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3–5 days to major destinations.

  5. Flexible Payment Options – Accepts T/T, wire transfer, credit card.

  6. On-Site Inspection Welcome – Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
