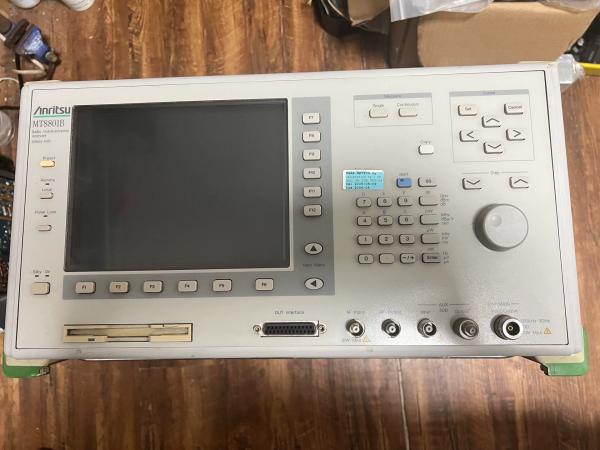

Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer
Specifications
Brand Name :
Anritsu
Model Number :
MT8801B
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Delivery Time :
3-5 days
New / Used :
Used
Platform Frequency Range :
300 kHz – 3 GHz
Spectrum Analyzer (Opt. 07) :
10 MHz – 3 GHz; RBW 300 Hz–1 MHz; VBW 3–100 kHz; C/N –115 dBc @ 100 kHz offset.
Signal Generator Output Level :
–143 to –3 dBm, 1 Hz frequency resolution.
Maximum RF Input Level :
+40 dBm (10 W) MAIN; +20 dBm (100 mW) AUX.
Level Accuracy / Meter :
Total level accuracy typically ±1.5 dB; built-in power meter 0 to +40 dBm.
Description

The MT8801B is a versatile radio communication analyzer covering 300 kHz to 3 GHz in a single platform. With the optional spectrum analyzer (10 MHz–3 GHz) it supports spurious, ACP, OBW and burst-average power measurements, while the built-in signal generator provides –143 to –3 dBm output for TX/RX testing. Standard GPIB and RS-232C allow easy ATE integration and high-speed remote control; dedicated software options enable call processing and loopback sensitivity tests for GSM/DCS/PCS and IS-136A, as well as PDC/PHS and DECT. Refurbished units are commonly supplied with calibration and accessories, offering a cost-effective alternative for production, service, and education labs.



Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer




Contact Us for a Fast Quote


Interested in an Anritsu MT8801B or a similar model?


  • Drop your WhatsApp number or e-mail on our website and we will:


    • Send a tailored quotation and any current promotions.

    • Provide extra photos, test data, and full configuration details.

    • Discuss shipping, duties, warranty, and any other specifics you need.


Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.


Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer

Anritsu MT8801B 300 kHz–3 GHz Radio Communication Analyzer Optional 10 MHz–3 GHz Spectrum Analyzer




Frequently Asked Questions (FAQ)


1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit’s serial number and included in the shipment.



2/ Integrity of Internal Components

  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules.

  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time.

    All recordings remain in our cloud archive for the life of the product.


3/ Warranty & Technical Support

  • One-year transferable warranty.
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance.


4/ International Shipping Protection

  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam.
  • Shock- and tilt-indicator labels on every crate.
  • Preferred carrier: DHL, delivery in 3–5 days to major destinations.


5/ Payment Terms

We accept T/T, wire transfer, credit card.


6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
