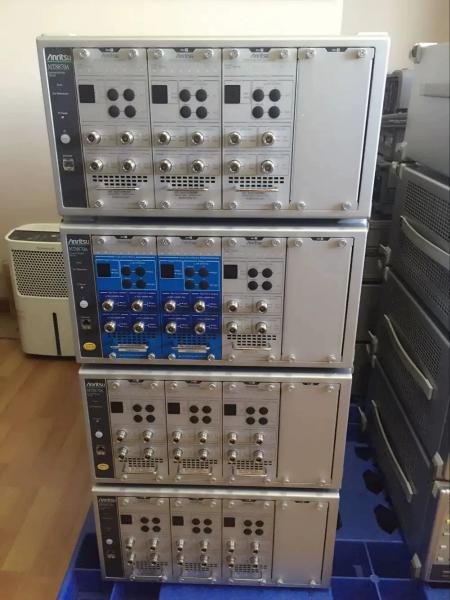

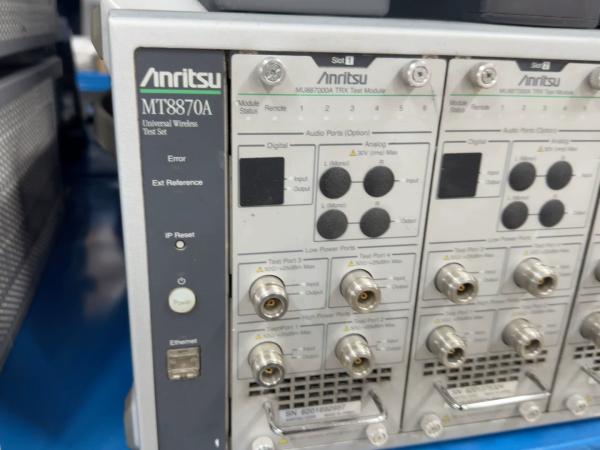

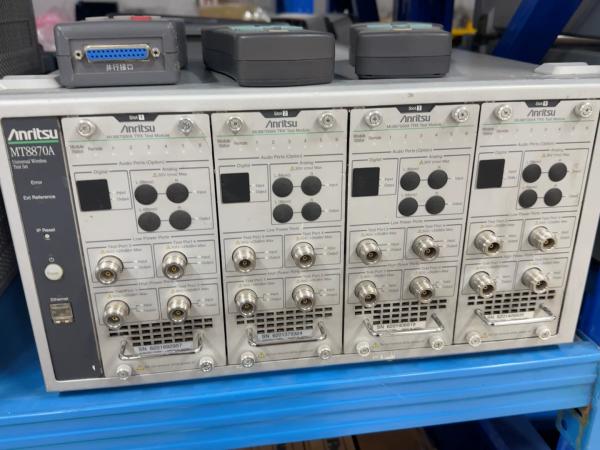

MT8870A 10 MHz–6 GHz Anritsu Universal Wireless Test Set 160/200 MHz BW Up To 16 RF Ports
MT8870A 10 MHz–6 GHz Anritsu Universal Wireless Test Set 160/200 MHz BW Up To 16 RF Ports
MT8870A 10 MHz–6 GHz Anritsu Universal Wireless Test Set 160/200 MHz BW Up To 16 RF Ports
MT8870A 10 MHz–6 GHz Anritsu Universal Wireless Test Set 160/200 MHz BW Up To 16 RF Ports
MT8870A 10 MHz–6 GHz Anritsu Universal Wireless Test Set 160/200 MHz BW Up To 16 RF Ports
MT8870A 10 MHz–6 GHz Anritsu Universal Wireless Test Set 160/200 MHz BW Up To 16 RF Ports
Specifications
Brand Name :
Anritsu
Model Number :
MT8870A
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Delivery Time :
3-5 days
New / Used :
Used
Frequency Range :
10 MHz – 6 GHz (platform); extendable to 7.3 GHz with MU887002A-007 for Wi-Fi 6E / NR-U
Measurement Bandwidth :
160 MHz (MU887000A / MU887001A); 200 MHz (MU887002A) for 5G NR and WLAN 802.11ax/be.
RF Ports / Scalability :
4 RF ports per TRx module (2 full-duplex + 2 half-duplex on MU887000A); mainframe holds up to 4 modules (max 16 ports). MU887002A provides 24 full-duplex ports per module.
Output Level Capability :
MU887002A can output 0 dBm modulated signals simultaneously from all ports, enabling Rx Max Input Level tests without external amps.
Remote Control / Commands :
Gigabit Ethernet PC control; supports native and SCPI command sets; high-speed sequencer for reduced tact time.
Description

MT8870A is a modular, high-throughput production tester covering 10 MHz to 6 GHz for non-signaling TX/RX measurements across 5G NR Sub-6, LTE/LTE-A, V2X, WLAN 802.11a/b/g/n/ac/ax/be, Bluetooth, GNSS and more. Each mainframe accepts up to four TRx modules to parallelize multi-DUT test; MU887000A offers two full-duplex and two half-duplex ports, while MU887002A raises density to 24 full-duplex ports and extends bandwidth to 200 MHz, with an optional 7.3 GHz upper limit for Wi-Fi 6E/NR-U. Sequenced measurements and SCPI/native control minimize line tact time, and 0 dBm simultaneous outputs overcome path losses for robust sensitivity and ACLR/EVM workflows. Refurbished units can ship calibrated with required option licenses, delivering proven accuracy at lower CAPEX.



MT8870A 10 MHz–6 GHz Anritsu Universal Wireless Test Set 160/200 MHz BW Up To 16 RF Ports



Contact TESTRO for a Fast Quote

Interested in an Anritsu MT8870A or a similar model?


  • Drop your WhatsApp number or e-mail on our website and we will:


    • Send a tailored quotation and any current promotions.

    • Provide extra photos, test data, and full configuration details.

    • Discuss shipping, duties, warranty, and any other specifics you need.


Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.


MT8870A 10 MHz–6 GHz Anritsu Universal Wireless Test Set 160/200 MHz BW Up To 16 RF Ports



TESTRO Advantages

  1. Laboratory-Verified Performance – Every unit ships with an ISO/IEC 17025 calibration certificate (TESTRO Certified) tied to its serial number.

  2. Full Internal Transparency – High-resolution teardown photos plus a live video test (gain-linearity, noise-floor, spurious response); recordings are stored for the product’s lifetime.

  3. Warranty & Technical Support – One-year warranty and weekday remote assistance from the in-house engineering team for both software and hardware issues.

  4. Secure, Rapid Shipping – Aviation-grade flight case with triple-layer anti-vibration foam and shock/tilt indicators; priority DHL delivery in 3–5 days to major destinations.

  5. Flexible Payment Options – Accepts T/T, wire transfer, credit card.

  6. On-Site Inspection Welcome – Customers may visit the Shenzhen warehouse and refurbishment line to view calibration benches, burn-in racks, and inventory.
