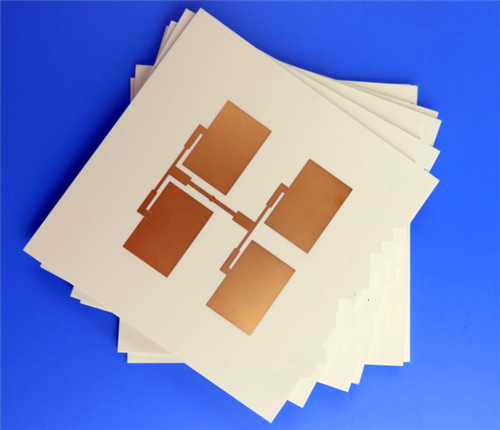

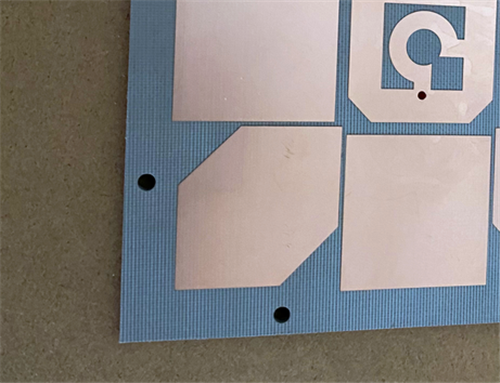

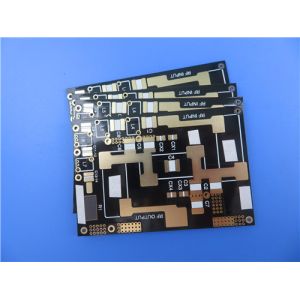

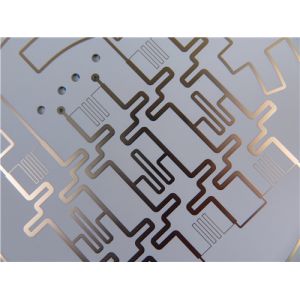

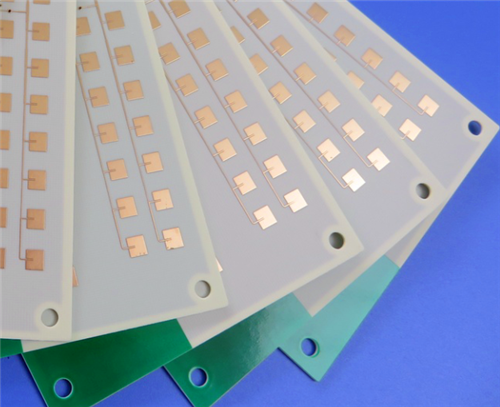

Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd. is a well-established supplier and exporter of high-frequency PCBs based in Shenzhen, China. With 18 years of industry experience, the company serves global sectors including cellular base station antennas, satellite communications, high-frequency passive components, microstrip and stripline circuits, millimeter-wave equipment, radar systems, and digital RF antennas. The company’s high-frequency PCBs are primarily manufactured using three major high-frequency material brands: Rogers Corporation, Taconic, and Wangling, with dielectric constants ranging from 2.2 to 10.2. Headquartered in the economically vibrant city of Shenzhen, Bicheng PCB operates with a philosophy rooted in serving small and medium-sized enterprises, offering a wide variety of circuit boards to meet diverse market demands.
Main Business & PCB Applications
The company upholds the highest manufacturing standards to deliver products known for exceptional quality, performance, and reliability. In addition to high-frequency PCBs, Bicheng has divisions specializing in FR-4 circuit boards, flexible circuits, and metal-core PCBs, supporting everything from prototyping and small runs to mass production. The company actively develops value-added PCB solutions such as HDI, quick-turn production, impedance control, heavy copper, and backplane boards. This strategic focus enables Bicheng to offer an extended and complementary product range, forming an integrated line that spans from low-end to high-end PCBs. These circuit boards are widely used in home appliances, portable and consumer electronics, medical devices, aerospace, and telecommunications.
Main Material Partners

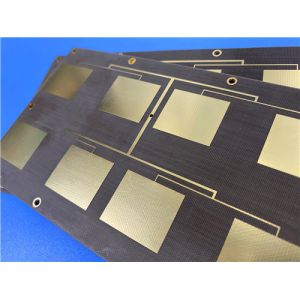

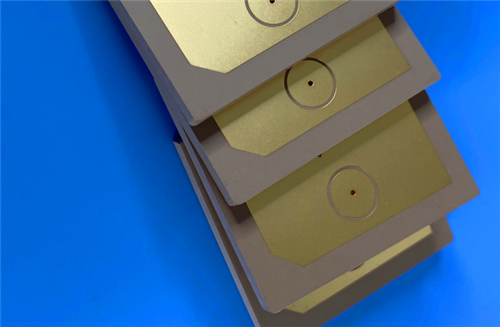

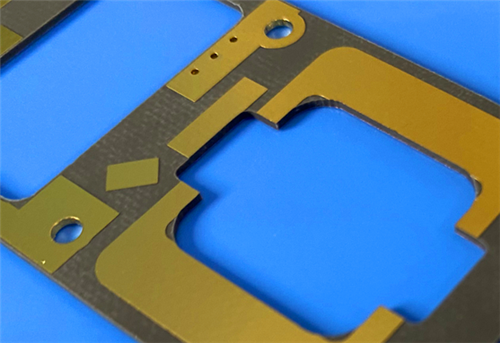

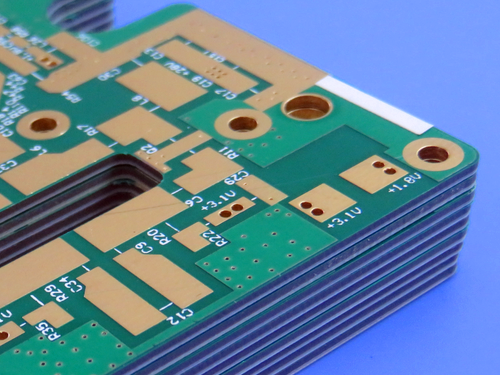

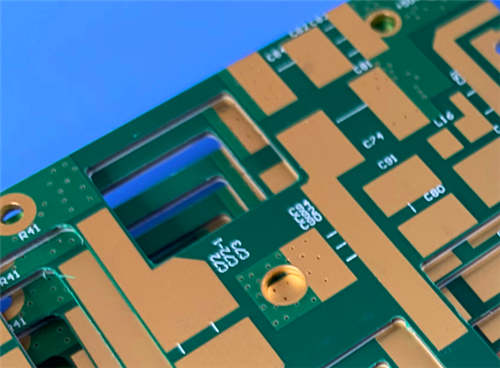

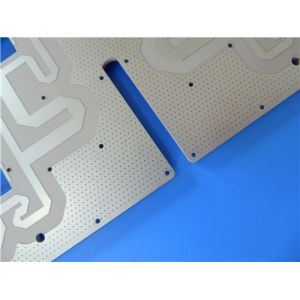

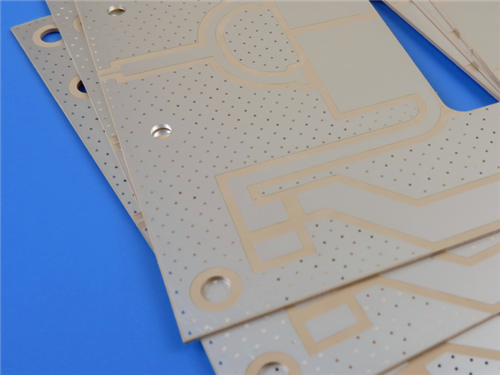

We Are Your RF PCB Solution Provider!
Rogers PCB, Taconic PCB, Arlon PCB, F4B PCB
ISO9001, ISO14001, IATF 16949 certified
PCB Pattern Plating

PCB Washing

Developing

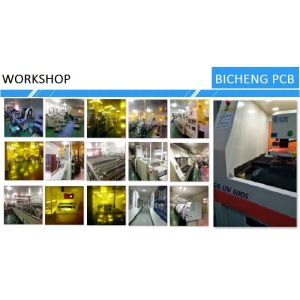

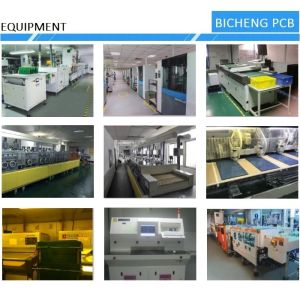

Bicheng Electronics operates two major production bases, strategically located in Shenzhen and Jiangmen.
The Shenzhen factory employs over 300 staff and has a monthly output exceeding 10,000 square meters of PCBs. As a brand-new facility, it specializes in quick-turn prototypes and small-volume production.
The Jiangmen factory features two new industrial buildings spanning approximately 15,000 square meters, specifically designed for mass production. Equipped with state-of-the-art automated machinery sourced from Israel, Japan, Germany, and Taiwan, the Jiangmen facility produces up to 30,000 square meters per month for 2- to 10-layer PCBs. The establishment of this plant has significantly strengthened Bicheng’s capacity to supply high-end PCBs to both domestic and global markets.

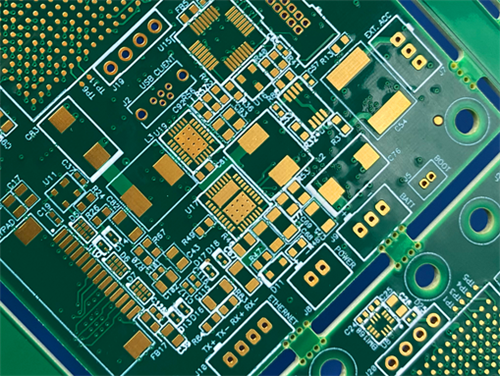

With a strong and diverse product portfolio, Bicheng serves customers worldwide. Our offerings include multi-layer boards (up to 32 layers), flex-rigid combinations, heavy copper PCBs, high-frequency and high-speed boards, and HDI, among other types.
We are committed to becoming a leading diversified PCB supplier known for precision-engineered products. Our mission is to create lasting value for our customers while building a promising future for our employees.
Design For Manufacture
| Serial NO. | Procedure | Item | Manufacturing capability | ||
| Large volume (S<100 m²) | Middle volume (S<10 m²) | Prototype(S<1m²) | |||
| 1 | Inner layer (18um, 35um, 70um etc are finished copper. If not mentioned copper, finished 1oz is the default value ) | Min.isolation of layers | 0.1mm | 0.1mm | 0.06mm |
| 2 | Min.track and spacing | 5/5mil(18um) | 4/4mil(18um) | 3/3.5mil(18um) | |
| 3 | 5/5mil(35um) | 4/4mil(35um) | 3/4mil(35um) | ||
| 4 | 7/9mil(70um) | 6/8mil(70um) | 6/7mil(70um) | ||
| 5 | 9/11mil(105um) | 8/10mil(105um) | 8/9mil(105um) | ||
| 6 | 13/13mil(140um) | 12/12mil(140um) | 12/11mil(140um) | ||
| 7 | Min.distance from drill to conductor | 4 Layer 10mil,6 layer 10mil,8-12 layer 12mil | 4 layer 8mil,6 layer 8mil,8-12 layer 10mil,14-20 layer 14mil,22-32 layer 18mil | 4 layer 6mil,6 layer 6mil,8-14 layer 8mil,16-22 layer 12mil,24-32 layer 14mil | |
| 8 | Min.width of annular ring on inner layer | 4 Layer 10mil(35um),≥6 Layer 14mil(35um) | 4 Layer 8mil(35um),≥6 layer 12mil(35um) | 4 Layer 6mil(35um),≥6 Layer 10mil(35um) | |
| 9 | Inner layer isolation ring width(Min) | 10mil (35um) | 8mil (35um) | 6mil (35um) | |
| 10 | Min.via pad diameter | 20mil (35um) | 16mil (35um) | 16mil (35um) | |
| 11 | Min. distance from board edge to conductor(no copper exposured)(inner layer) | 14 mil(35um) | 12 mil(35um)) | 8 mil(35um) | |
| 12 | Maximum copper weight(Inner layer and outer layer) | 3 OZ( 105 um ) | 4 OZ ( 140 um ) | 6 OZ( 210 um ) | |
| 13 | Core with different copper foil on both sides | / | 18/35,35/70 um | 18/35,35/70 um | |
| 14 | Laminating | Tolerance of laminate thickness | ±10% PCB thick | ±10% PCB thick | ±8% PCB thick |
| 15 | Maximum laminate thickness | 4.0mm | 6.0mm | 7.0mm | |
| 16 | Laminate alignment accuracy | ≤±5 mil | ≤±4 mil | ≤±4 mil | |
| 17 | Drill (18um, 35um, 70um etc are finished copper. If not mentioned copper, finished 1oz is the default value ) | Min.drill bit diameter | 0.2 mm | 0.2 mm | 0.2 mm |
| 18 | Min.slot router diameter | 0.60 mm | 0.60 mm | 0.60 mm | |
| 19 | Min.tolerance of PTH slots | ±0.15mm | ±0.15mm | ±0.1mm | |
| 20 | Max.aspect ratio | 1:08 | 1:12 | 1:12 | |
| 21 | Hole tolerance | ±3mil | ±3mil | ±3mil | |
| 22 | Space of via to via | 6mil(same net),12mil(different net) | 6mil(same net),14mil(different net) | 4mil(same net),12mil(different net) | |
| 23 | Space of component hole to component hole | 12mil(same net),16mil(different net) | 12mil(same net),16mil(different net) | 10mil(same net),14mil(different net) | |
| 24 | Etching | Min.width of etching logo | 10mil(18um),12 mil (35um),12 mil(70um) | 8mil(18um),10mil(35um),12 mil(70um) | 6mil(18um),8 mil(35um),12mil(70um) |
| 25 | Etch factor | 1.6-2.2 | 1.6-2.2 | 1.6-2.2 | |
| 26 | Outer layer(18um, 35um, 70um etc are finished copper. If not mentioned copper, finished 1oz is the default value ) | Min.via pad diameter | 20mil | 16mil | 16mil |
| 27 | Min.BGA pad diameter | 12mil | 12mil | 10mil | |
| 28 | Min.track and spacing | 5/5mil(18um) | 4/4mil(18um) | 3/3.5mil(18um) | |
| 5/5mil(35um) | 4/4mil(35um) | 3/4mil(35um) | |||
| 7/9mil(70um) | 6/8mil(70um) | 6/7mil(70um) | |||
| 9/11mil(105um) | 8/10mil(105um) | 8/9mil(105um) | |||
| 13/13mil(140um) | 12/12mil(140um) | 12/11mil(140um) | |||
| 29 | Minimum grid | 10/10mil(35um) | 8/8mil(35um) | 4/8mil(35um) | |
| 30 | Min.space (conductor to pad, pad to pad) | 6mil(18um) | 5mil(18um) | 4mil(18um) | |
| 6mil(35um) | 5mil(35um) | 4mil(35um) | |||
| 9mil(70um) | 8mil(70um) | 7mil(70um) | |||
| 11mil(105um) | 10mil(105um) | 9mil(105um) | |||
| 13mil(140um) | 12mil(140um) | 11mil(140um) | |||
| 31 | Solder mask (18um, 35um, 70um etc are finished copper. If not mentioned copper, finished 1oz is the default value ) | Maximum via-plug diameter | 0.5mm | 0.5mm | 0.5mm |
| 32 | Min.width of solder mask bridge | Green:5mil(35um) | Green:4mil(35um) | Green:4mil(35um) | |
| 33 | Yellow:5mil(35um) | Yellow:4mil(35um) | Yellow:4mil(35um) | ||
| 34 | Blue:5mil(35um) | Blue:4mil(35um) | Blue:4mil(35um) | ||
| 35 | Black:6mil(35um) | Black:6mil(35um) | Black:6mil(35um) | ||
| 36 | White:6mil(35um) | White:6mil(35um) | White:6mil(35um) | ||
| 37 | All of Matt:6mil | All of Matt:6mil | All of Matt:6mil | ||
| 38 | Green:5mil(70um) | Green:4mil(70um) | Green:4mil(70um) | ||
| 39 | Yellow:5mil(70um) | Yellow:4mil(70um) | Yellow:4mil(70um) | ||
| 40 | Blue:5mil(70um) | Blue:4mil(70um) | Blue:4mil(70um) | ||
| 41 | Black:6mil(70um) | Black:6mil(70um) | Black:6mil(70um) | ||
| 42 | White:6mil(70um) | White:6mil(70um) | White:6mil(70um) | ||
| 43 | Open solder mask | 4mil(35um) | 4mil(35um) | 3mil(35um) | |
| 44 | Solder mask coverage | 4mil(35um) | 4mil(35um) | 3mil(35um) | |
| 45 | Min.width of solder mask text | 9mil(35um) | 9mil(35um) | 8mil(35um) | |
| 46 | Min.thickness of Solder mask | 9um(35um) | 9um(35um) | 9um(35um) | |
| 47 | Max.thickness of solder mask | 30um(35um) | 30um(35um) | 30um(35um) | |
| 48 | Silkscreen | Min.width of silkscreen text | 6mil | 6mil | 5mil |
| 49 | Min.height of silkscreen text | 35mil | 35mil | 30mil | |
| 50 | Min.space from silkscreen to pads | 6mil | 6mil | 5mil | |
| 51 | Colour of silkscreen | White, Black, Yellow | |||
| 52 | Carbon ink | Carbon ink covers conductor or pads | 14mil | 13mil | 12mil |
| 53 | Mid distance from carbon ink to pads | 12mil | 11mil | 10mil | |
| 54 | Peelable mask | Peelable mask covers conductor or pads | 8mil | 7mil | 6mil |
| 55 | Min.distance from peelable mask to pads | 14mil | 13mil | 12mil | |
| 56 | Max.via-plug of Silk-screen method | 2.0mm | 2.0mm | 2.0mm | |
| 57 | Max. via-plug of aluminum foil method | 4.5mm | 4.5mm | 4.5mm | |
| 58 | Surface finish | Thickness of nickel of ENIG | 3-5um | 3-5um | 2-6.35um |
| 59 | Thickness of Gold of ENIG | 0.05-0.1um | |||
| 60 | Thickness of nickel of Gold finger | 3-5um | |||
| 61 | Thickness of Gold of Gold finger | 0.1-1.27um | |||
| 62 | Thickness of tin of HASL | 2.54-6.35um | |||
| 63 | Thickness of OSP | 0.2-0.5um | |||
| 64 | Thickness of tin of Immersion tin | 0.2-0.75um | |||
| 65 | Thickness of silver of Immersion silver | 0.15-0.75um | |||
| 66 | Contour process | Method of contour process | CNC milling, V-CUT, Break-out tap, break-out holes, Punching | ||
| 67 | Minimum router | 0.8mm | |||
| 68 | Min.tolerance of contour | ±0.15mm | ±0.13mm | ±0.1mm | |
| 69 | Min.distance of milling contour(no copper exposure) | 12mil | 10mil | 8mil | |
| 70 | Angle of V-CUT | 20、30、45、60 ±5 degree | |||
| 71 | Degree of symmetry of V-CUT | ±6mil | ±5mil | ±4mil | |
| 72 | Tolerance of residual thickness of V-CUT | ±6mil | ±5mil | ±4mil | |
| 73 | Tolerance of Chamfer angle of Gold finger | ±5 degree | ±5 degree | ±5 degree | |
| 74 | Tolerance of residual thickness of bevel edge of gold finger | ±5mil | ±5mil | ±5mil | |
| 75 | Min radius of inner corner | 0.4mm | |||
| 76 | Min. distance from edge to V-Cut (no copper exposure) | 18mil (1.6mm Thick, 20 degree V-groove cutter) | 14mil(1.6mm Thick, 20 degree V-groove cutter) | 12mil (1.6mm Thick, 20 degree V-groove cutter) | |
| 77 | 20mil (1.6mm Thick, 30 degree V-groove cutter) | 18mil (1.6mm Thick, 30 degree V-groove cutter) | 16mil (1.6mm Thick, 30 degree V-groove cutter) | ||
| 78 | 24mil (1.6mm Thick, 45 degree V-groove cutter) | 22mil (1.6mm Thick, 45 degree V-groove cutter) | 20mil (1.6mm Thick, 45 degree V-groove cutter) | ||
| 79 | 30mil (1.6mm Thick, 60 degree V-groove cutter) | 28mil (1.6mm Thick, 60 degree V-groove cutter) | 26mil (1.6mm Thick, 60 degree V-groove cutter) | ||
| 80 | Special tolerance | Board thickness of flying probe test | 0.6-4.0mm | ||
| 81 | Panel size of flying probe test | Size≤900X600mm, Small size can be compensated through manufacturing procedure | |||
| 82 | Panel size of fixture test method | Size≤460X380mm, Small size can be compensated through manufacturing procedure | |||
| 83 | Board thickness of fixture test method | 0.4-6.0mm | |||
| 84 | Tolerance of press-fit hole | ±2mil | |||
| 85 | Tolerance of NPTH | ±2mil | |||
| 86 | Tolerance of PCB thickness | 1.0mm≥PCB thickness, Tolerance ±0.1mm;1.0mm≤PCB thickness, Tolerance ±10% | |||
| 87 | Tolerance of depth of countersunk hole | ±0.2mm | |||
| 88 | Depth tolerance of blind slot | ±0.2mm | |||
| 89 | Maximum shipment size | Size≤1200X600mm(Double side, no test required) | |||
| 90 | Size≤1000X600mm( Multilayer, no test required) | ||||
| 91 | Minimum shipment size | 10X10mm | |||
| 92 | PCB thickness of HASL | 0.8-3.0mm(Hole less 0.5mm should be use via-plug or mask-tent ) | |||
| 93 | HASL PCB Size | Size≤600X460mm | |||
| 94 | PCB thickness | 0.15-7.0mm | |||
| 95 | Depth of V groove | 0.8-3.2mm | |||
| 96 | Distance of non-continuous v-groove | ≥7mm | |||
| 97 | Max. drill diameter | Size≤6.5mm (Counterbore or router will be used for holes more than 6.5mm, Min.tolerance ±0.1mm ) | |||
| 98 | Max. countersink diameter | Size≤6.5mm Countersink can be used counterbore drill or router) | |||
| 99 | Distance of Bevel | Size≥11mm | Size≥5mm | Size≥5mm | |
| 100 | Thickness of peelable mask | 0.2-1.5mm ±0.15mm | |||

Every day, we dedicate to make things better, keep moving forward and never stop. We believe that teamwork is the guarantee of success, and our focus on creative process makes us even better.
Under the guidance of modern science management and instant information shared through the network technology, a high efficient working environment has been come into being. Skilled manufacturing experience can bring out the best performance of the equipment. You'll enjoy our professional super-value services with our high quality PCB's and flexible cooperation.
Your individual requirements can get satisfied at Bicheng and also our success can be achieved by the innovative products and competitive advantages.
BichengPCB is the brand of Shenzhen Bicheng Electronics Technology Co., Ltd. It can be traced back to 2003 when her name is Bicheng Enterprise Company. It specialized in blank printed circuit boards for single sided PCB and double sided PCB.
In order to meet the increases of market demands, we started to offer multilayer PCBs in 2008, layer count up to 32 layers. Bicheng introduced high frequency material in 2010 for the applications of antenna and amplifer and raido products.
With development, metal core PCB and hybrid PCB were suscessfully put into trial production and and got highly evaluated. In 2014 the company was restructured and reformed. Bicheng played a new role in the organiztion, focusing on global market sales and after-sales services.
Time flies to 2020, we have completed a series of integrated PCB products: High frequency/microwave PCB, Multi-layer/ Hybrid PCB, Metal Core PCB and Flexible Circuits.
As of now, our products can be found in more than 100 countries and regions in the world.
