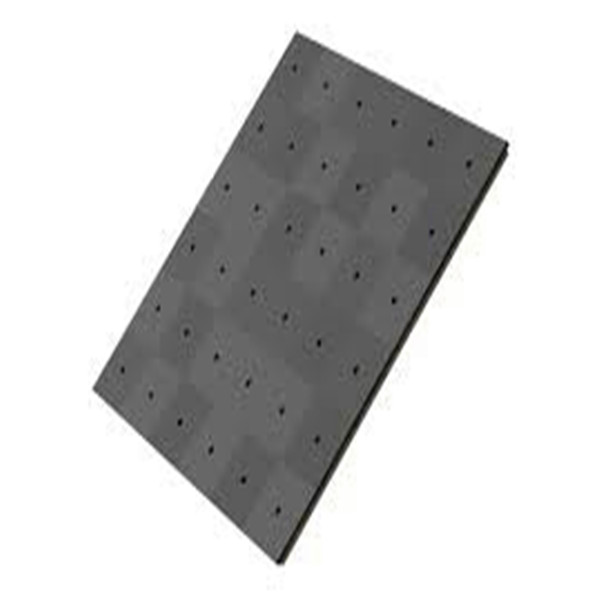

5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
5.2mm Thickness Ferrite Tile Absorber For 3m Emc Anechoic Chamber
Specifications
Model Number :
5.2
Place of Origin :
Jiangsu, China
Brand Name :
neutral
Supply Ability :
100 Piece/Pieces per Week
Packaging Details :
10 pcs in one carton the gross weight is about 10Kg
MOQ :
1 - 9 Pieces
Price :
$1000
Certification :
CE RoHS
Type :
ferrite tile
thickness :
5.2mm
color :
black
Nominal Center Frequency :
50/60Hz
3dB Bandwidth :
14K
Insertion Loss :
100dB
Input Impedance :
50ohm
moq :
500 pcs
supply :
stock
base size :
100*100
Operating Frequency :
50/60Hz
Application :
emc chamber
Port :
shanghai
Description

Ferrite Tile Size

  • Base size: 100*100mm
  • Standard height: 5.2mm, 6.7mm
  • Diameter of bore: 10mm

Ferrite Tile Application

  • Used for EMC chamber

Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.

Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).

Size for EMC chamber ferrite tile

  • Base size: 100*100mm
  • Standard height: 5.5mm, 6.7mm
  • Diameter of bore: 10mm

Application for EMC chamber ferrite tile

Used for EMC chamber

Initial permeability 5500
Relative loss factor 15@0.1MHz
Saturation flux density 280(1194A/m)
Remanence 180
coercivity 3
Relative temp.factor 3
Curie temp. 90
Density 4.85*1000
Resistivity 100

Performance

30MHz -25.5dB
100MHz -38dB
300MHz -19.5dB
500MHz -16dB
700MHz -12dB
1000MHz -10dB

Material Characteristics of Hz-FT

Properties Symbol Unit Value
Initial permeability μiac 5500 ±20%
Relative loss factor tanδ/μiac ×10-6 15 (0.1MHz)
Saturation flux density Bs mT 280 (1194A/m)
Remanence Br mT 180
Coercivity Hc A/m 3
Relative temp. factor (20℃∼60℃) αμr ×10-6/℃ 3
Curie Temperature Tc ℃ >90
Density δ ㎏/㎥ 4.85×103
Resistivity ρ Ω·m >100

Typical graph of Reflection Loss(dB) and Specification of Performance

Frequency Typical Specification
30MHz -25.5dB -24.0dB max.
100MHz -38.0dB
300MHz -19.5dB
500MHz -16.0dB
700MHz -12.0dB
1000MHz -12.0dB -9.0dB max.

Part Dimentions in mm
A 99.95 +/-0.10
B 99.95 +/-0.10
C 6.70 +/-0.10
D 10.00 +/-0.20
Weight 330g
