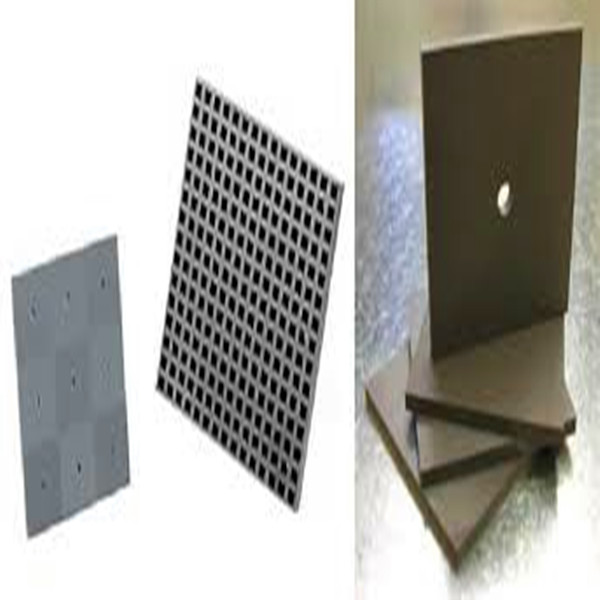

Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Thickness 6.7mm Ferrite Tile Absorber For Emc Anechoic Chamber
Specifications
Model Number :
6.7
Place of Origin :
China
Brand Name :
neutral
Supply Ability :
10 Piece/Pieces per Day
Packaging Details :
1 pcs in one carton
MOQ :
1 - 9 Pieces
Price :
$1000
Certification :
CE RoHS
Type :
ferrrite tile
color :
black
application :
emc anechoic chamber
standard size :
5.2mm 6.7mm
3dB Bandwidth :
5-10%
Insertion Loss :
100db
Input Impedance :
50ohm
moq :
500 pcs per order
supply :
stock
Description
Ferrite Tile Size
• Base size: 100*100mm
• Standard height: 5.2mm, 6.7mm
• Diameter of bore: 10mm
Ferrite Tile Application
• Used for EMC chamber
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.
Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Size for EMC chamber ferrite tile
• Base size: 100*100mm
• Standard height: 5.5mm, 6.7mm
• Diameter of bore: 10mm
Application for EMC chamber ferrite tile
Used for EMC chamber
Initial permeability 5500
Relative loss factor 15@0.1MHz
Saturation flux density 280(1194A/m)
Remanence 180
coercivity 3
Relative temp.factor 3
Curie temp. 90
Density 4.85*1000
Resistivity 100
Performance
30MHz -25.5dB
100MHz -38dB
300MHz -19.5dB
500MHz -16dB
700MHz -12dB
1000MHz -10dB
