High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
Specifications
Model Number :
5.2
Place of Origin :
Jiangsu, China
Brand Name :
neutral
Supply Ability :
100 Piece/Pieces per Week
Packaging Details :
100 pcs in one carton the gross weight is about 20Kg
MOQ :
1 - 9 Pieces
Price :
$1000
Certification :
CE RoHS
Type :
ferrite tile
color :
black
base size :
100*100
thickness :
5.2mm 6.7mm
3dB Bandwidth :
14K
Insertion Loss :
100dB
Input Impedance :
50ohm
Stopband Attenuation :
100dB
application :
emc chamber
moq :
500 pcs
supply :
10000
delivery :
by sea
Port :
shanghai
Description

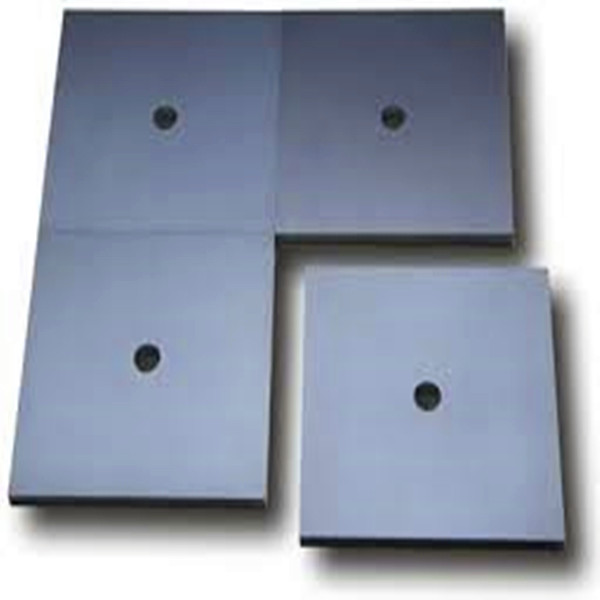

Ferrite Tile Size

  • Base size: 100*100mm
  • Standard height: 5.2mm, 6.7mm
  • Diameter of bore: 10mm

Ferrite Tile Application

  • Used for EMC chamber

Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.

Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).

Size for EMC chamber ferrite tile

  • Base size: 100*100mm
  • Standard height: 5.5mm, 6.7mm
  • Diameter of bore: 10mm

Application for EMC chamber ferrite tile

Used for EMC chamber

Initial permeability 5500
Relative loss factor 15@0.1MHz
Saturation flux density 280(1194A/m)
Remanence 180
coercivity 3
Relative temp.factor 3
Curie temp. 90
Density 4.85*1000
Resistivity 100

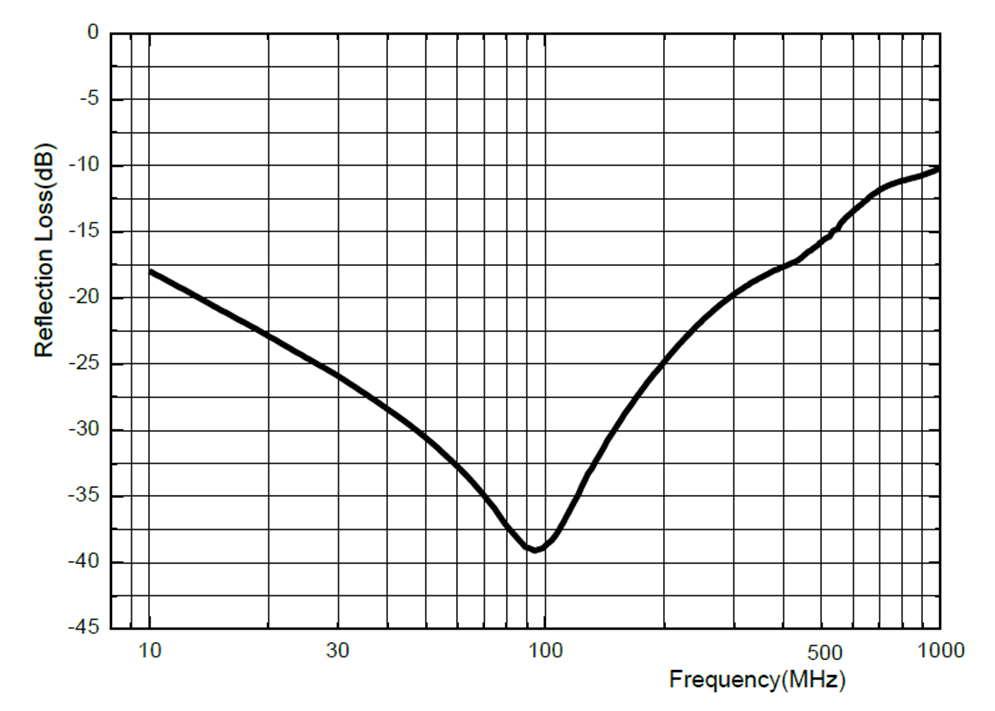

Performance

30MHz -25.5dB
100MHz -38dB
300MHz -19.5dB
500MHz -16dB
700MHz -12dB
1000MHz -10dB

High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size

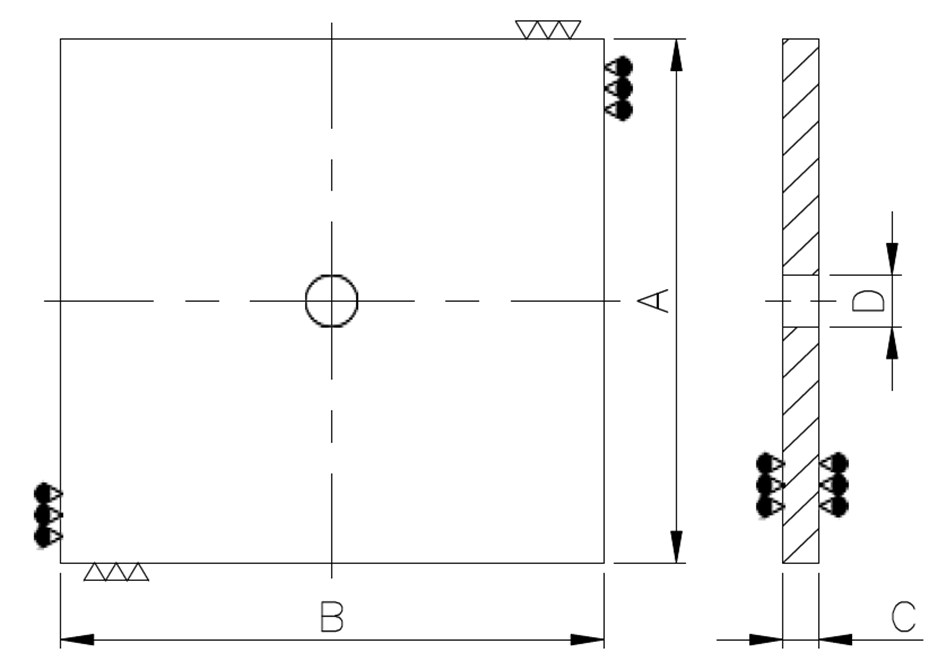

Part Dimentions in mm
A 99.95 +/-0.10
B 99.95 +/-0.10
C 6.70 +/-0.10
D 10.00 +/-0.20
Weight

330g

High Frequency Ferrite Tile Absorber For Rf Shielding 100*100 SizeHigh Frequency Ferrite Tile Absorber For Rf Shielding 100*100 Size
